An inertial system may perform well under controlled laboratory conditions. But how will it behave when temperature changes, angular motion increases, and the system operates continuously?
This is where conventional laboratory testing can become insufficient.
For IMUs, INS, gyroscopes, accelerometers, and other inertial sensors, performance is influenced not only by the sensor itself, but also by the environmental and dynamic conditions under which it operates. Temperature variations can introduce bias drift, while angular motion can expose errors that remain hidden during static testing.
When these factors occur simultaneously, the test becomes much closer to the conditions an inertial system may encounter in real-world applications.
Temperature is one of the most important environmental factors affecting inertial sensor performance.
Changes in temperature can influence sensor bias, scale factor, alignment, and other error characteristics. For high-precision inertial systems, even small temperature-dependent variations can accumulate into significant navigation errors over time.
Traditional temperature testing often focuses on environmental exposure alone. However, an inertial sensor does not always operate in a static state.
In practical applications, it may experience continuous angular motion while temperature is changing.
This raises an important testing question:
How does an inertial system respond when thermal and dynamic conditions change at the same time?
Testing motion and temperature independently can provide useful information. But it may not fully reveal the interactions between environmental and dynamic factors.
A combined test environment allows engineers to investigate:
By synchronizing angular motion with temperature control, engineers can create repeatable test profiles and observe how the system responds to changing conditions.
This approach is particularly valuable during sensor characterization, calibration, algorithm development, and system validation.

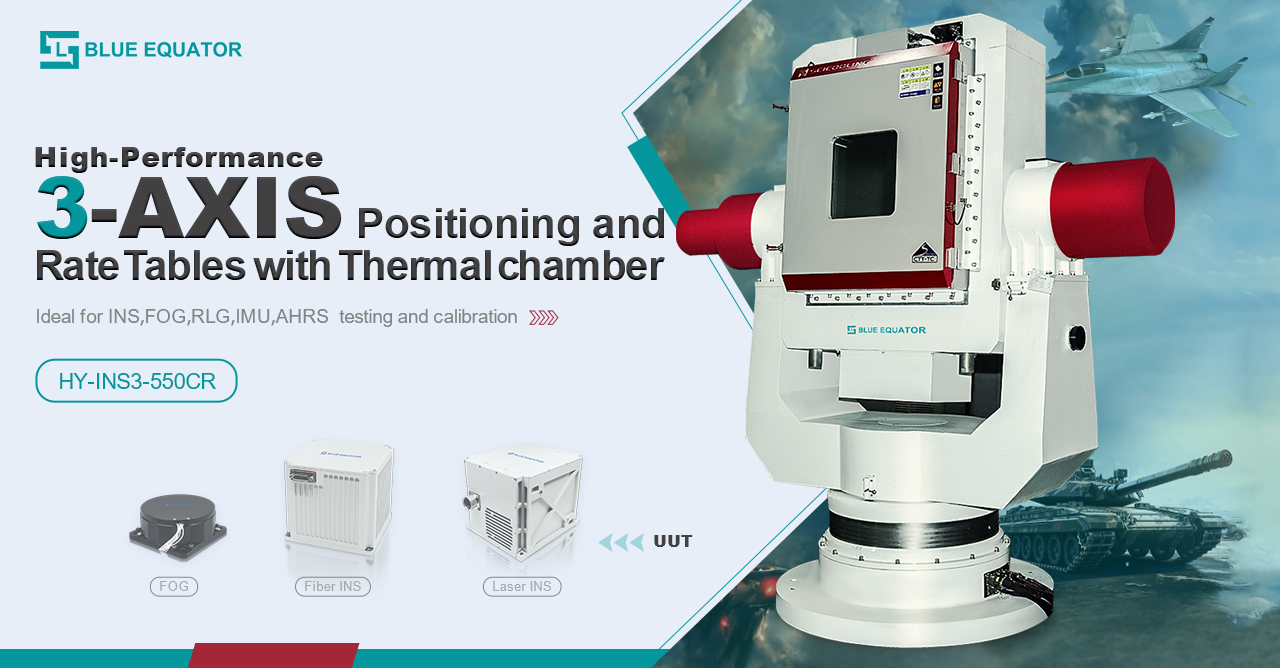

The HY-INS3-550C Three-Axis Motion Test Platform integrates high-precision three-axis angular motion with thermal conditioning in a single test system.
It is designed to provide a controlled environment for evaluating inertial systems under combined motion and temperature conditions.
Key specifications include:
The combination of motion simulation and thermal conditioning allows engineers to move beyond simple room-temperature or static testing and evaluate system behavior under more realistic operating conditions.
The value of combined environmental and motion testing goes beyond measuring individual sensor parameters.
For an IMU or INS, the ultimate objective is often system-level performance.
A sensor may show excellent specifications under a controlled environment, but those specifications alone do not necessarily describe how the complete system will perform during continuous operation.
By introducing controlled temperature variations together with defined angular motion profiles, engineers can build a more comprehensive understanding of system behavior.
This can support:
The goal of advanced testing is not simply to generate more data.
It is to generate meaningful and repeatable data under conditions that reflect how the system will actually be used.
As inertial sensors become more accurate and navigation systems become more sophisticated, the testing environment itself becomes increasingly important.
Temperature, motion, and other environmental variables can no longer be treated as separate considerations.
The more realistic the test conditions are, the more confidence engineers can have in the performance of the system beyond the laboratory.
Because the real question is not whether an inertial system works in the lab.
It is whether you can trust its performance when it leaves the lab.
