Precision Dual Axis Gimbal for Optical Sensor and Industrial Inspection

No.BE-INS2-23D03
This precision dual axis gimbal functions as optical positioning system and industrial inspection stand for sensor testing. Three advantages: compact 400×400×300mm footprint fits tight workspaces, smooth 0.1°/s to 100°/s adjustable rotation suits various optical payloads, and continuous 360° pan with ±100° tilt enables full hemispherical coverage. Includes 4kg payload capacity. Perfect for surveillance camera validation, LiDAR sensor calibration, and panoramic imaging system testing.
Specifications
Load weight:
4kg
Load size:
250mm×250mm×100mm
Position accuracy:
≤ ±0.01°
GET A QUOTE
Download
View all downloads

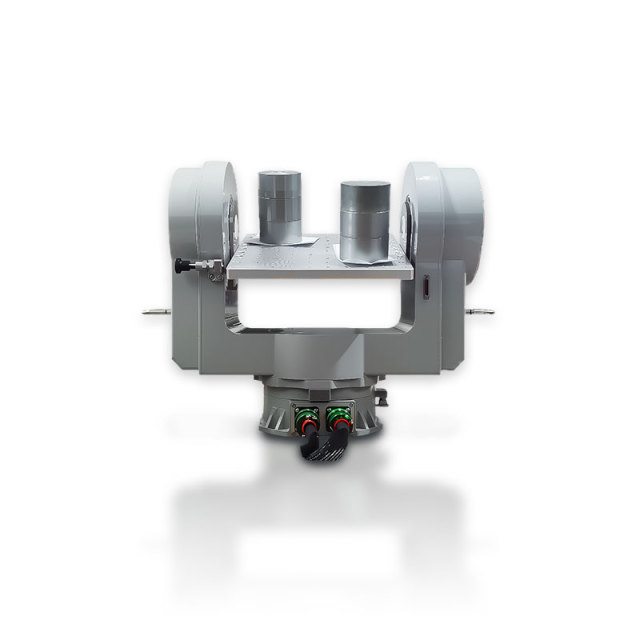

  • Precision dual axis gimbal white background for optical sensor industrial inspection

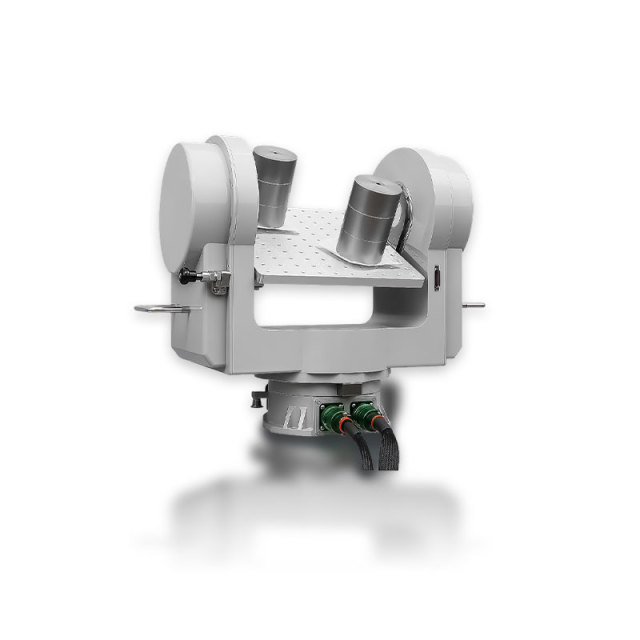

  • Optical positioning gimbal with 400mm square base and tilt angle scale markings

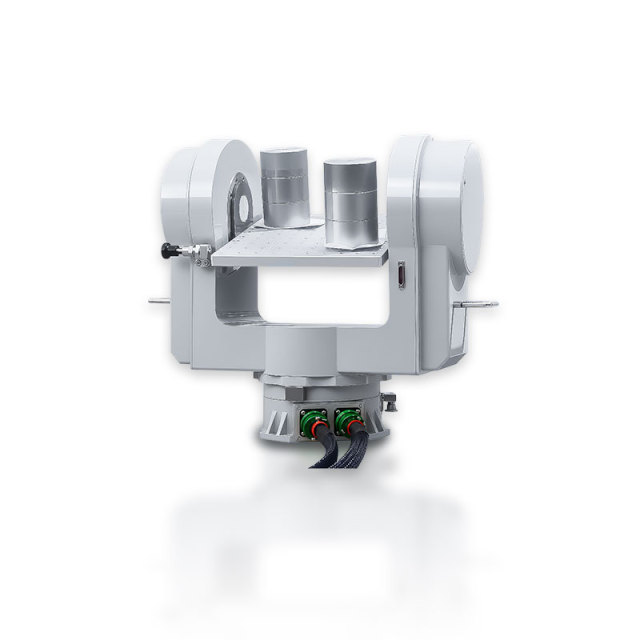

  • Close up of smooth rotation drive for 0.1 to 100 degree per second adjustable speed

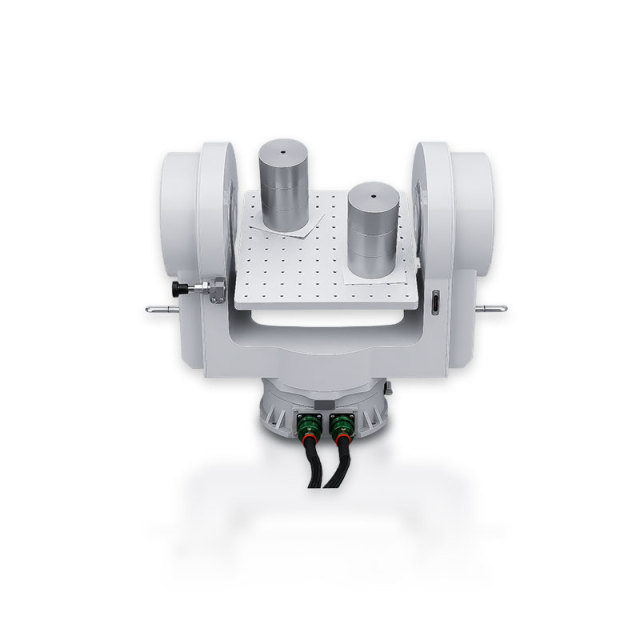

  • Dual axis gimbal performing 360 degree continuous pan for panoramic imaging test

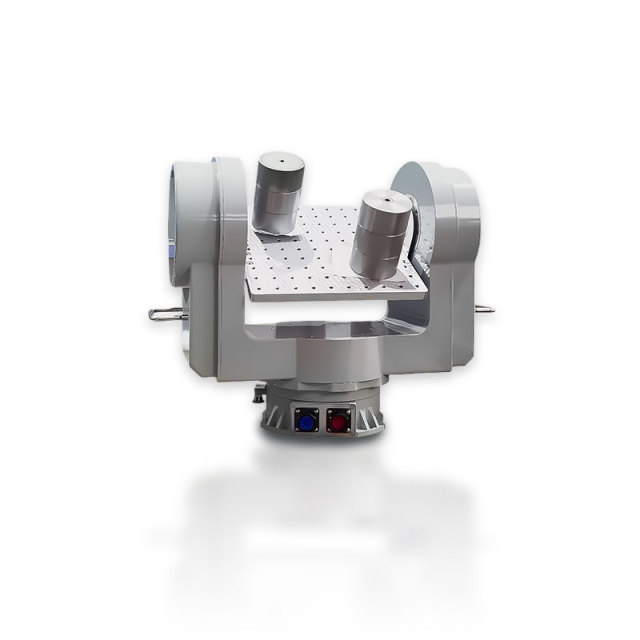

  • Inspection equipment dimensions with 300mm height and 400mm length on workbench

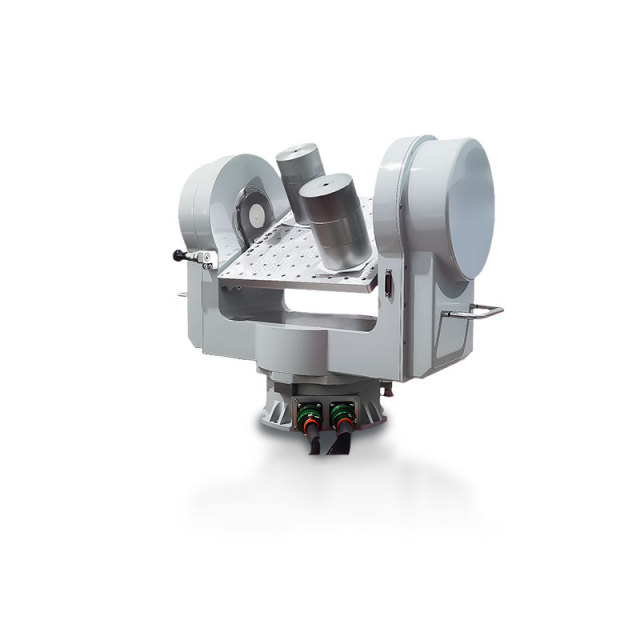

  • Automated control interface executing LIDAR sensor calibration sequence

Description

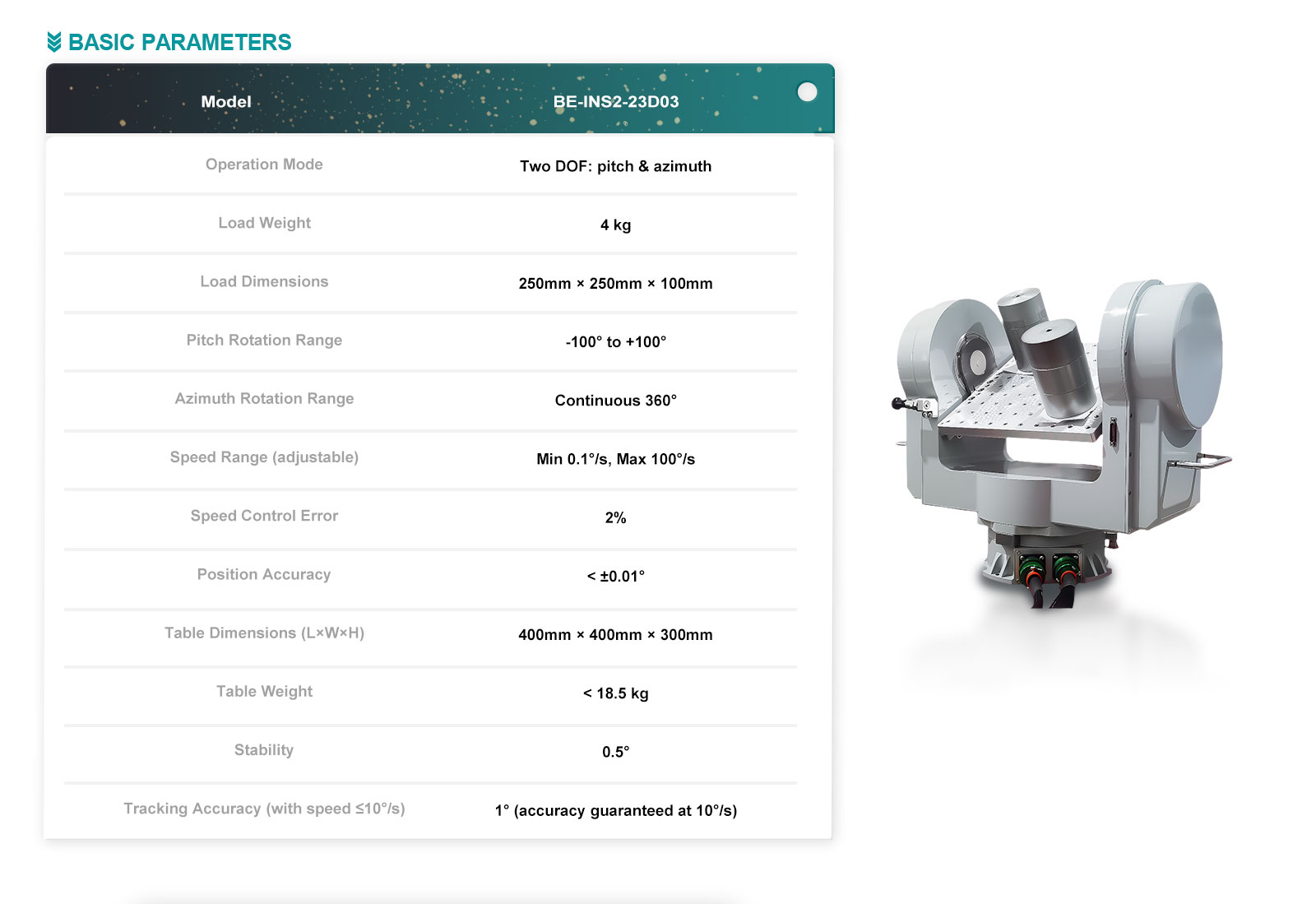

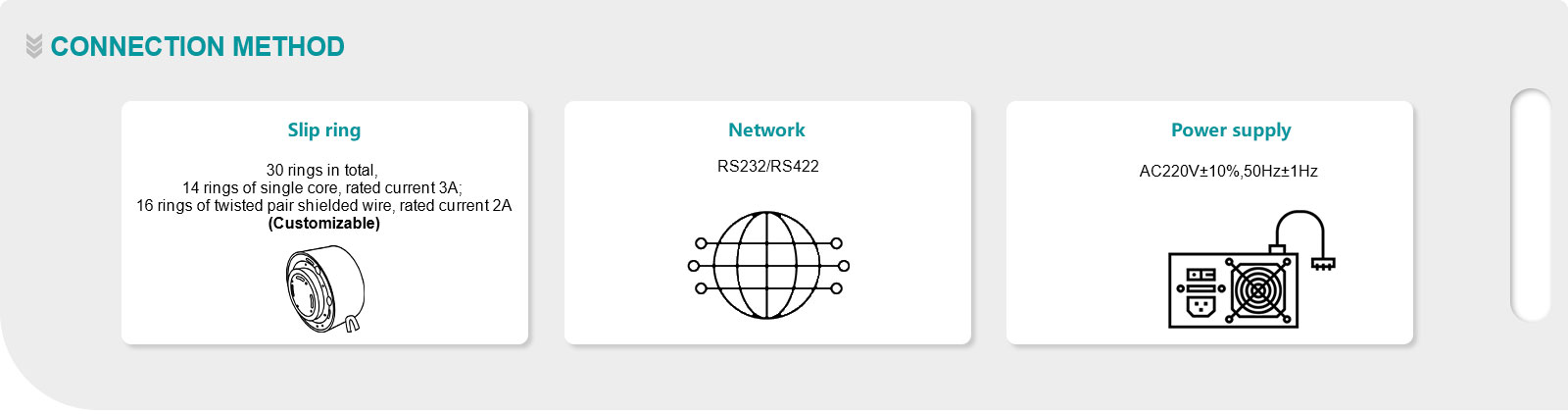

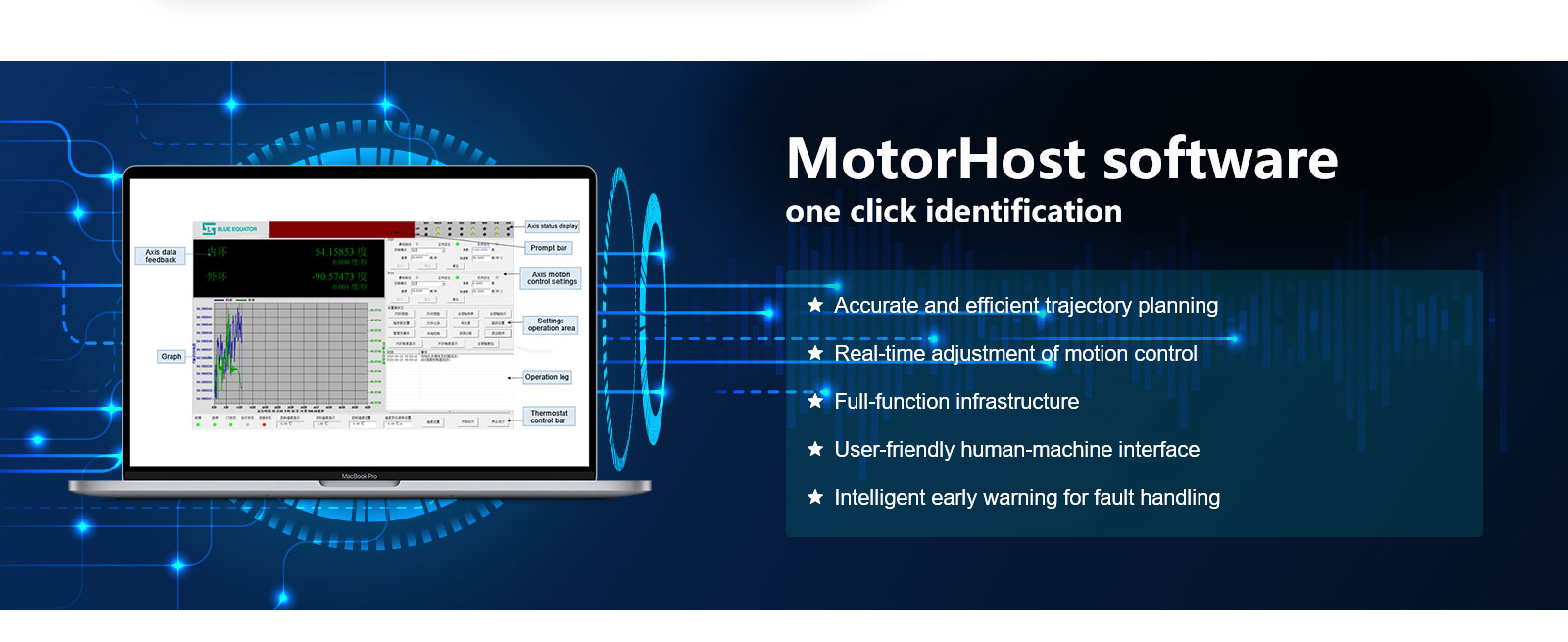

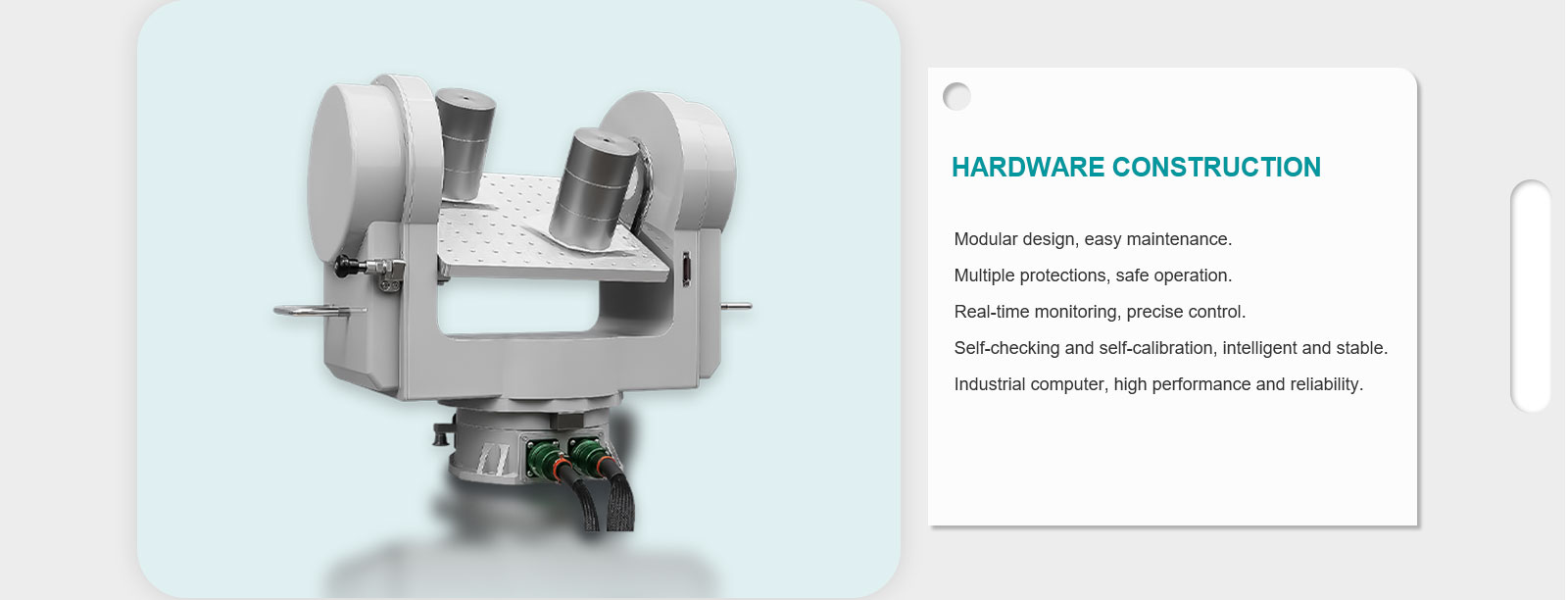

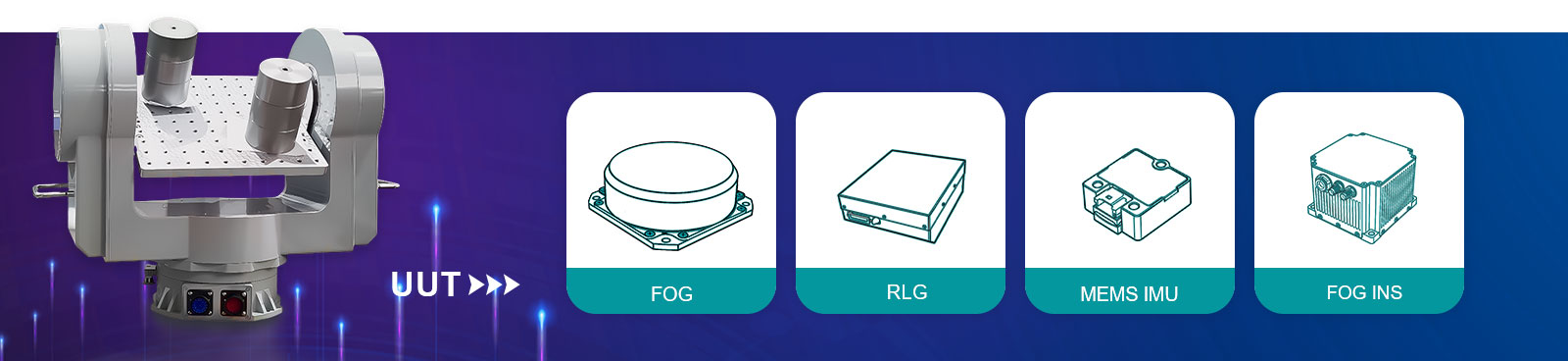

Pan‑Tilt Unit – Technical Specifications
Operation mode Two degrees of freedom: up‑down rotation (tilt) and horizontal rotation (pan)
Load weight 4 kg
Load dimensions (L × W × H) 250 mm × 250 mm × 100 mm
Rotation angle range – tilt (up/down) –100° … +100°
Horizontal rotation range 360° continuous
Speed range & control Minimum uniform speed 0.1 °/s
Maximum speed 100 °/s
rotation speed can be set (adjustable)
Speed control error 2 %
Position accuracy ≤ ±0.01°
Pan‑tilt dimensions (L × W × H) 400 mm × 400 mm × 300 mm
Weight ≤ 18.5 kg
Stability 0.5°
Tracking accuracy 1°
Precision‑preserving duration (hold time) 10⁹ s ≈ 31.7 years
