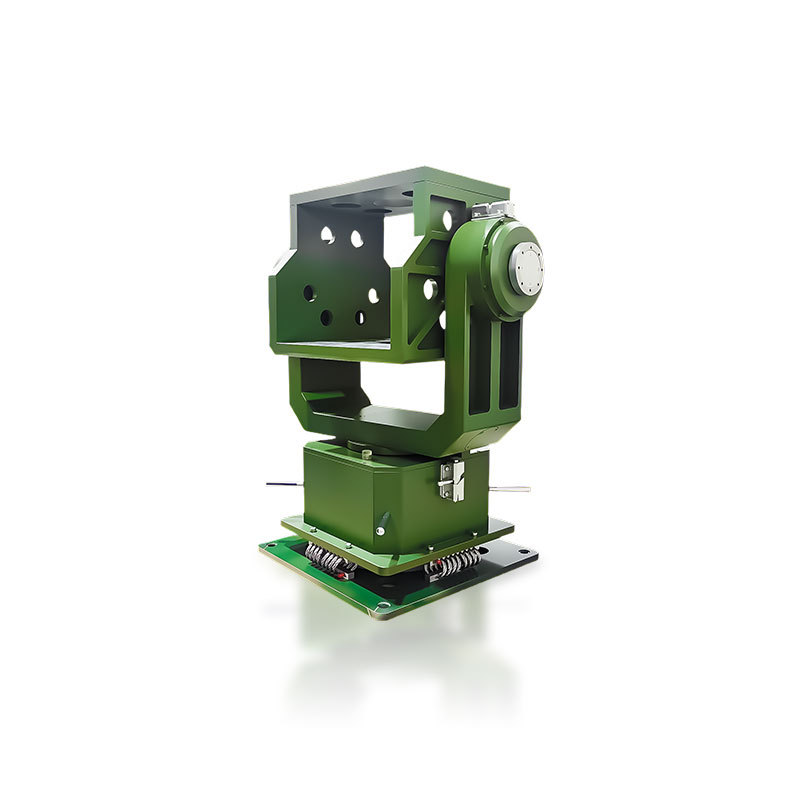

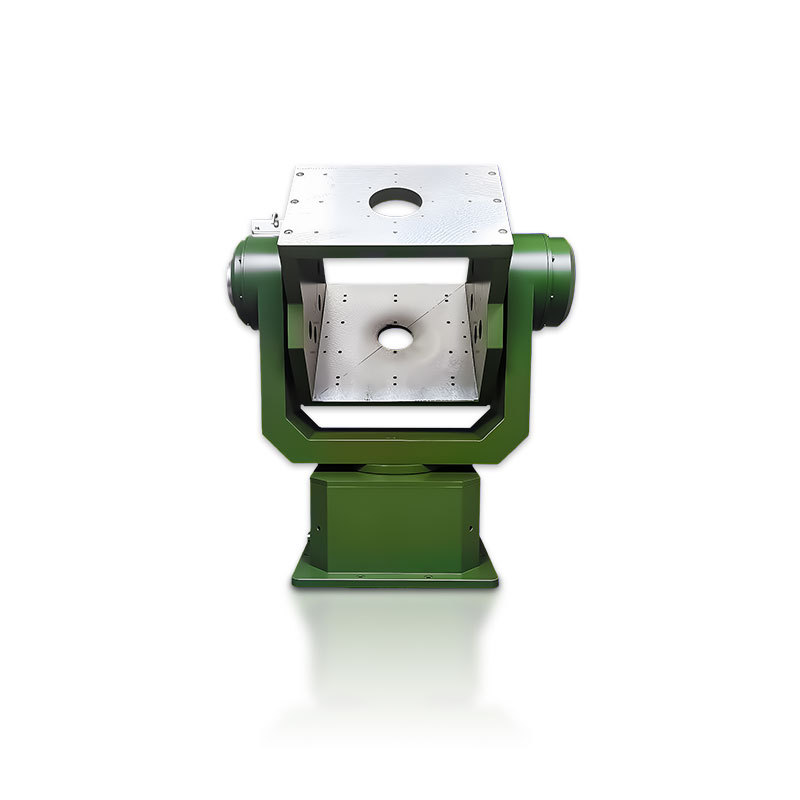

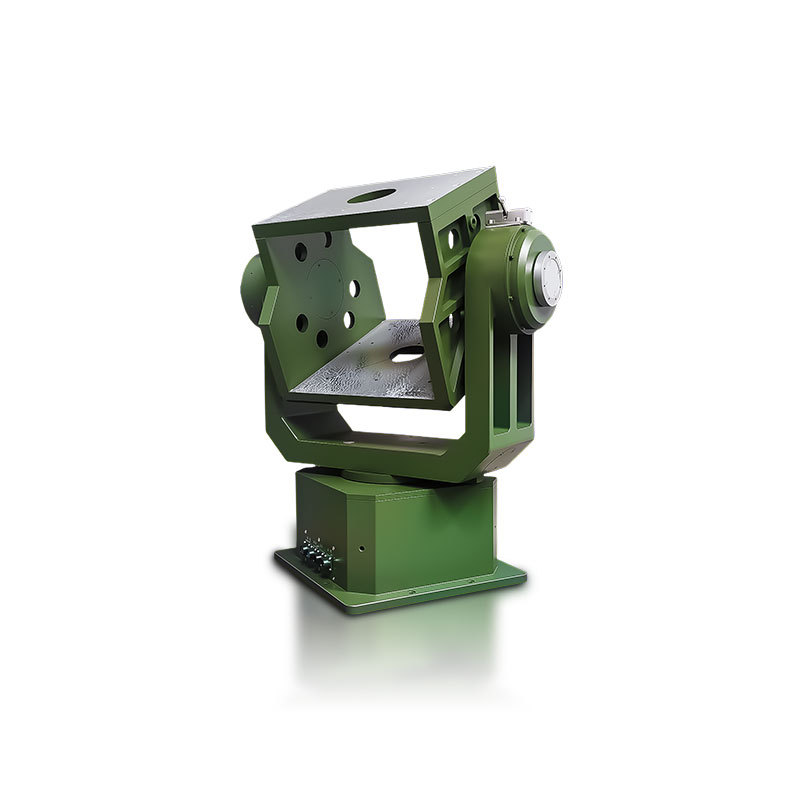

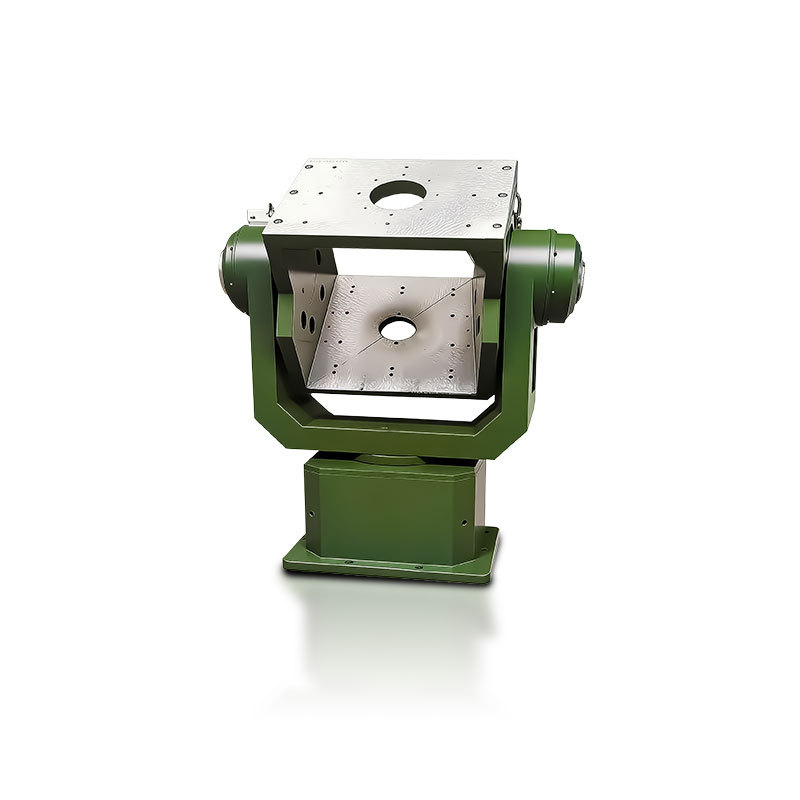

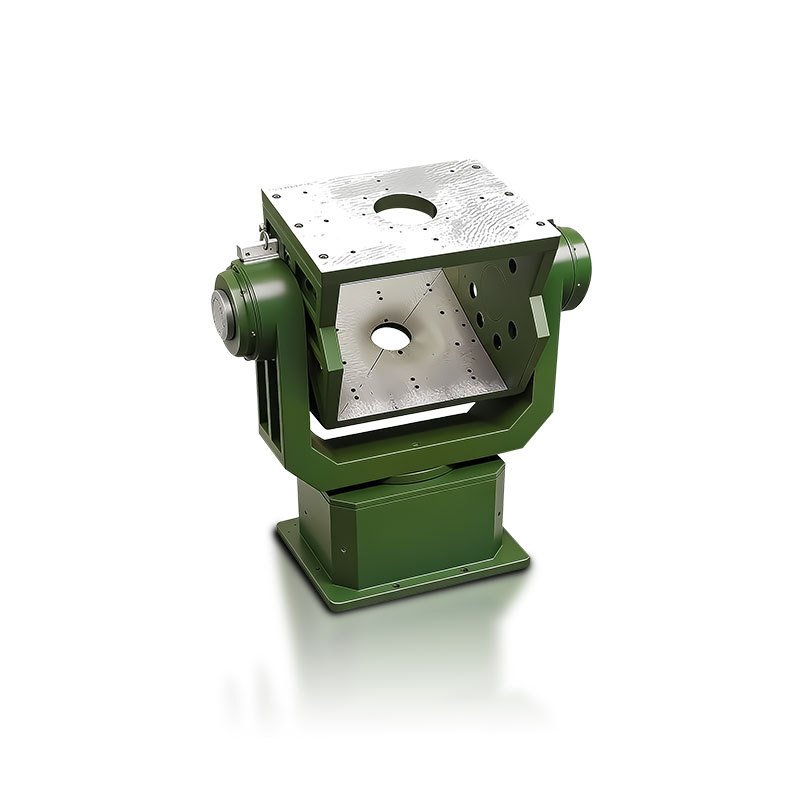

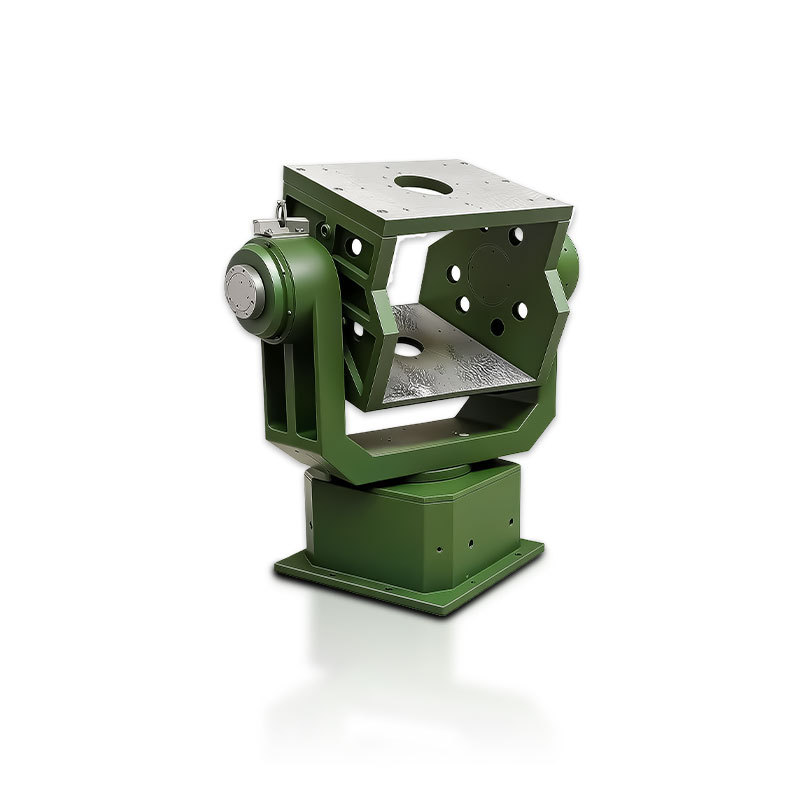

Dynamic Two Axis Turntable for Robotics and Automotive Testing

No.BE-INS2-23C01

High-precision dual-axis dynamic turntable for robot motion control and automotive steering evaluation. ±45° yaw / -15°~+45° pitch, ≤0.005° angle accuracy, 40kg payload. Ultra-low smooth rotation and fast acceleration guarantee repeatable tests for autonomous sensors, robotic programming and physics research.

Variations

Edit selections

Dynamic performance: 0.2°@2Hz

0.2°@2Hz

Angle measurement accuracy: ≤0.005°

≤0.005°

Step response overshoot: ≤10%

≤10%

Heading angle range: ±45°

±45°

Load weight: ≥40kg

≥40kg

Select variations and quantity

Dynamic performance: 0.2°@2Hz

0.2°@2Hz

Angle measurement accuracy: ≤0.005°

≤0.005°

Step response overshoot: ≤10%

≤10%

Heading angle range: ±45°

±45°

Load weight: ≥40kg

The min. inquiry quantity is 0. Add 0 more to continue.

≥40kg

Subtotal

GET A QUOTE

Download

View all downloads

Description

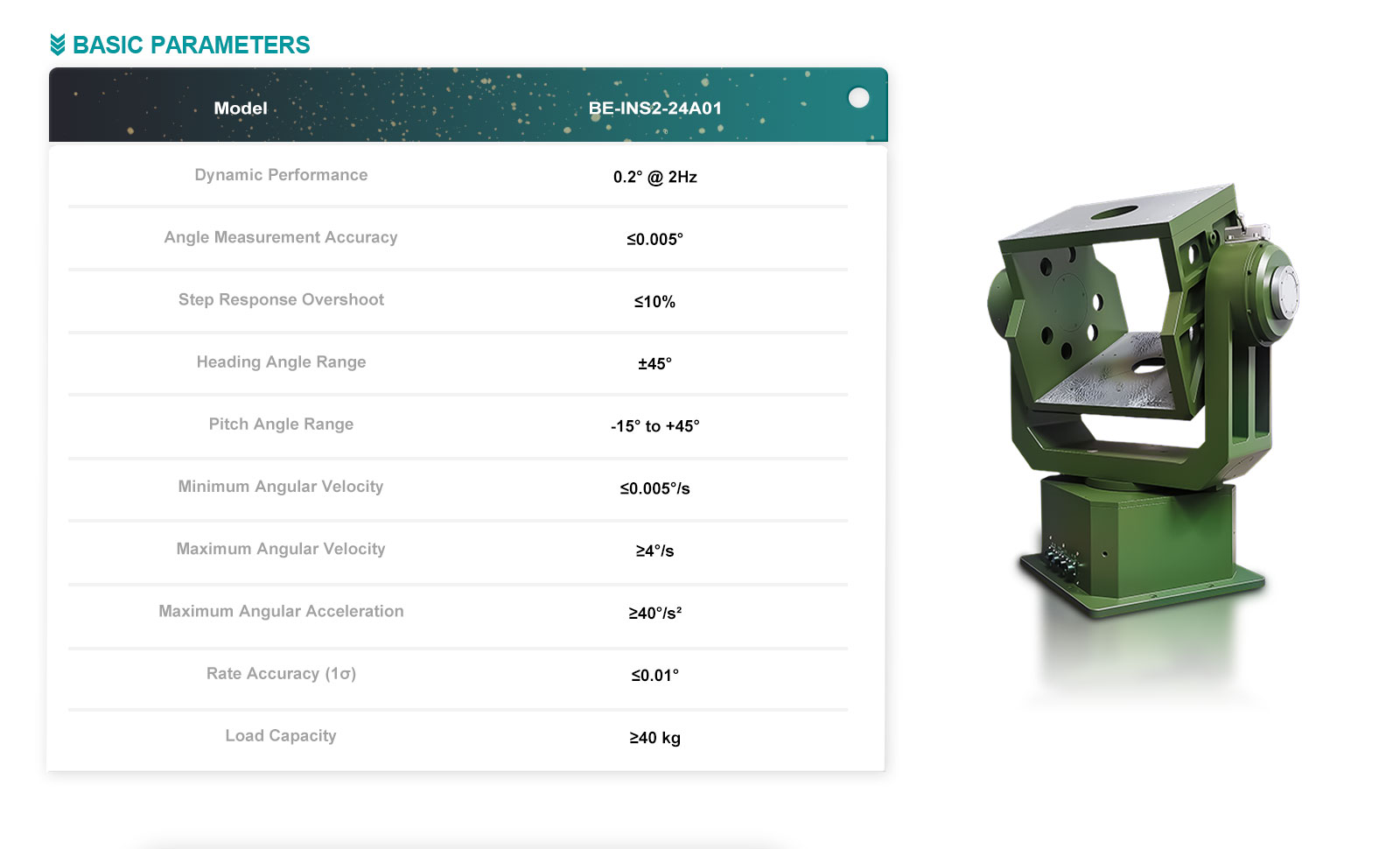

Technical Specifications

Parameter	Specification
Dynamic performance	0.2°@2Hz
Angle measurement accuracy	≤0.005°
Step response overshoot	≤10%
Heading angle range	±45°
Pitch angle range	-15°～+45°
Minimum angular velocity	≤0.005°/s
Maximum angular velocity	≥4°/s
Maximum angular acceleration	≥40°/s²
Rate accuracy	≤0.01° (1σ)
Load weight	≥40kg
