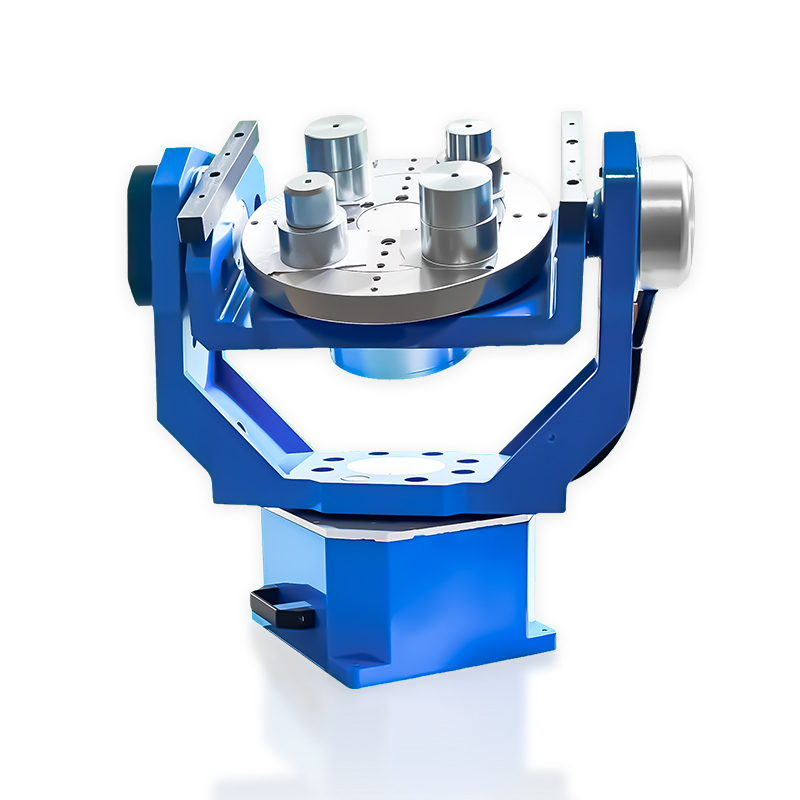

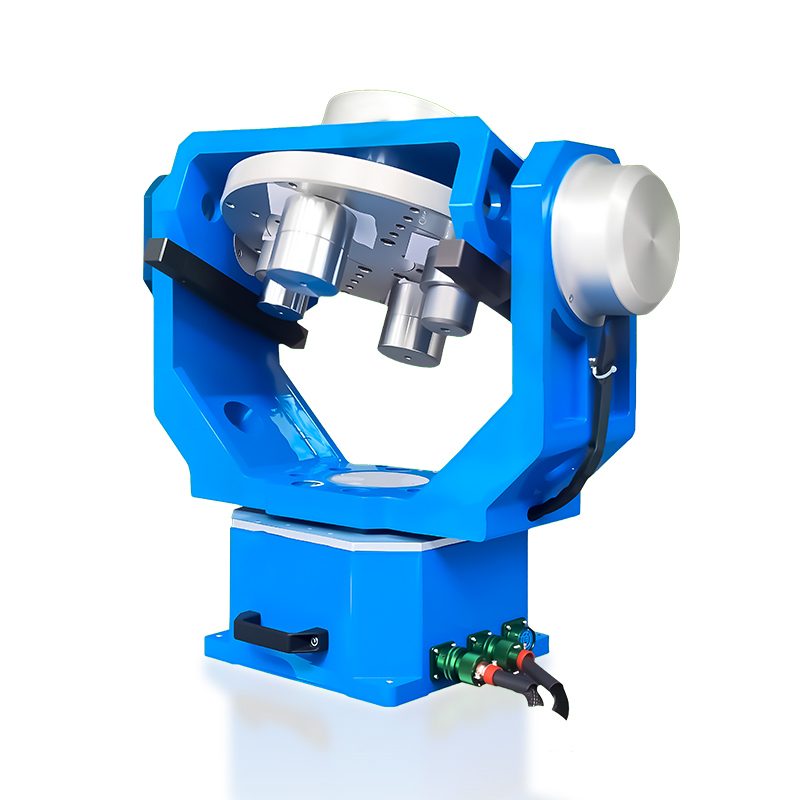

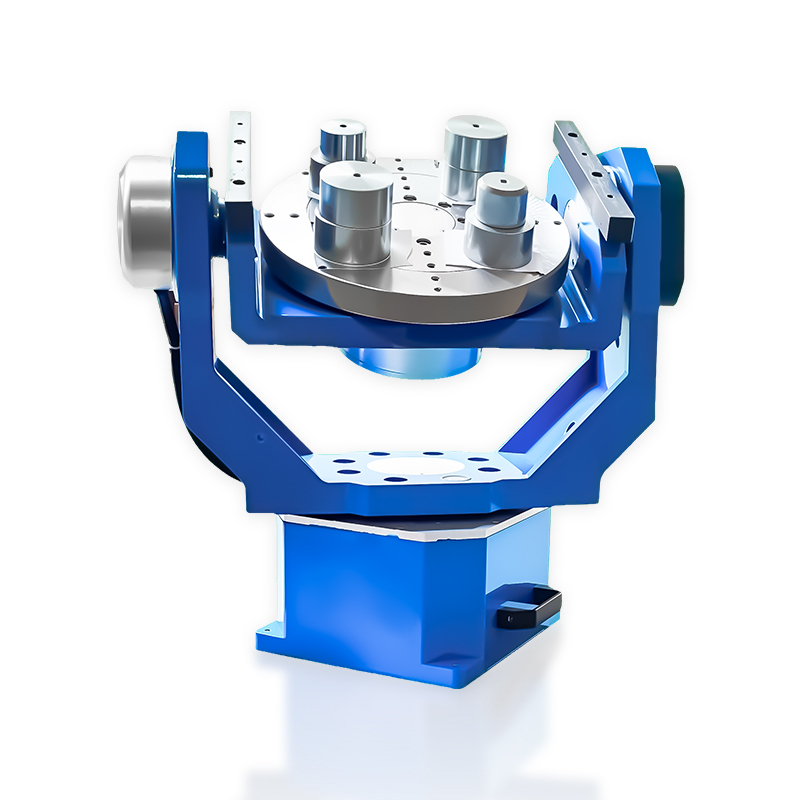

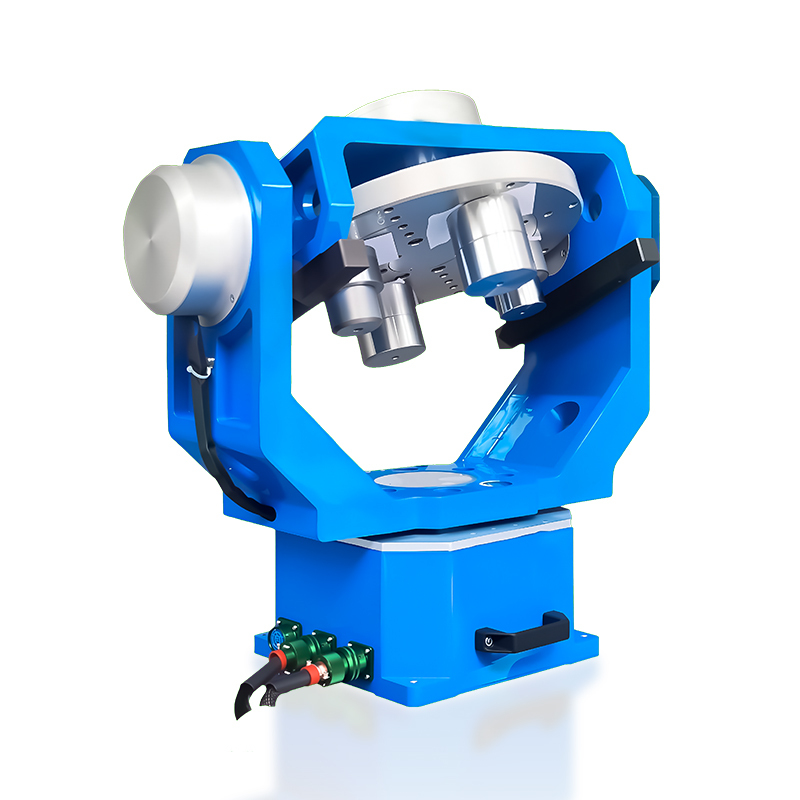

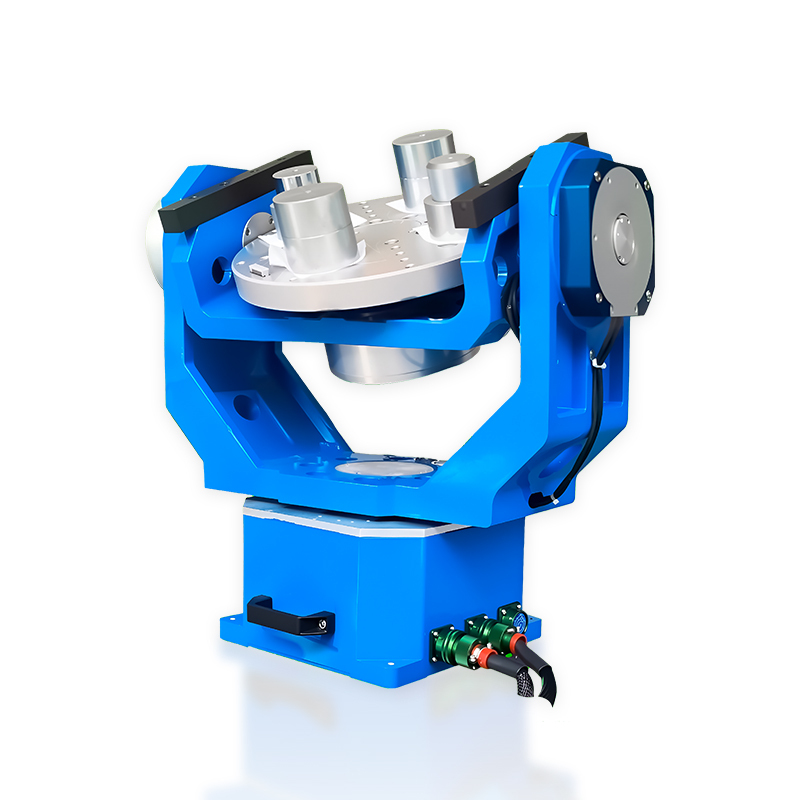

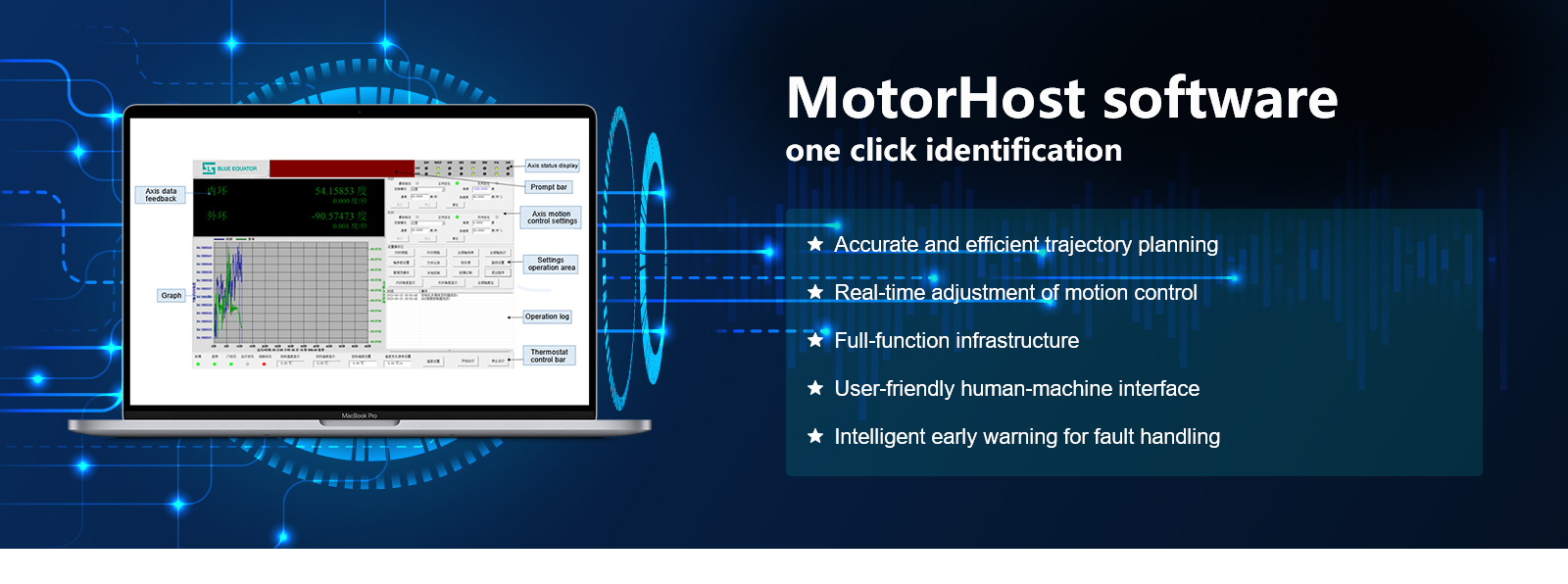

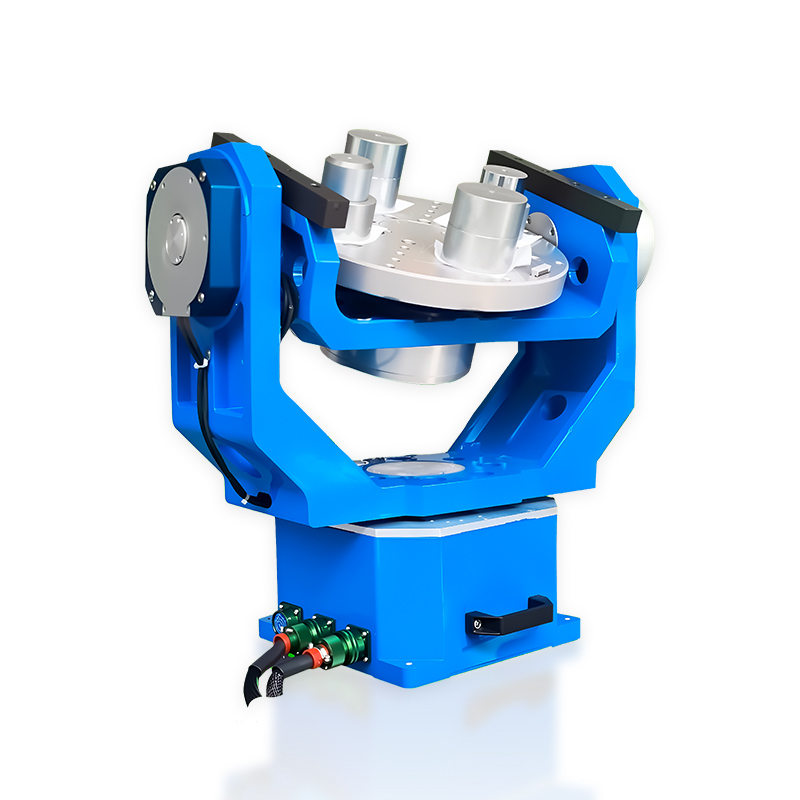

——Technical parameter——
|

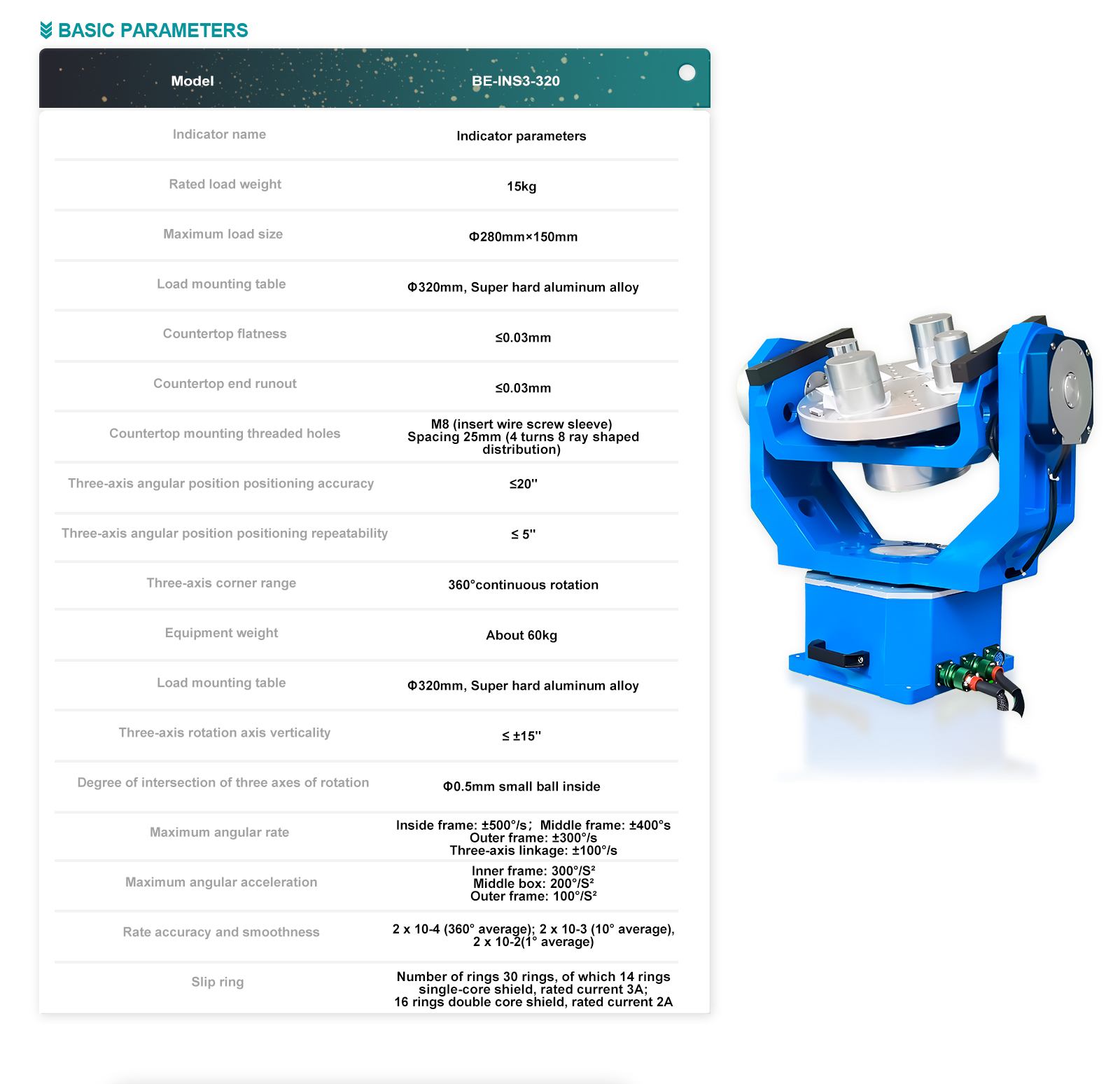

Indicator name |
Indicator parameters |
|
Rated load weight |
15kg |
|
Maximum load size |
Ф280mm×150mm |
|
Load mounting table |
Φ320mm, Super hard aluminum alloy |
|
Countertop flatness |
≤0.03mm |
|
Countertop end runout |
≤0.03mm |
|
Countertop mounting threaded holes
|
M8 (insert wire screw sleeve) Spacing 25mm (4 turns 8 ray shaped distribution) |
|
Three-axis angular position positioning accuracy |
≤20" |
|
Triaxial Angle position positioning repeatability |
≤ 5" |
|
Three-axis corner range |
360°continuous rotation |
|
Equipment weight |
About 60kg |
|
Load mounting table |
Φ320mm, Super hard aluminum alloy |
|
Triaxial rotation axis perpendicularity |
≤ ±15" |
|
Degree of intersection of three axes of rotation |
Φ0.5mm small ball inside |
|
Maximum angular rate |
Inside frame: ±500°/s; Middle frame: ±400°s, Outer frame: ±300°/s; Three-axis linkage: ±100°/s |
|
Maximum angular acceleration |
Inner frame: 300°/S²， Middle box: 200°/S², Outer frame: 100°/S² |
|
Rate accuracy and smoothness |
2 x 10-4 (360° average); 2 x 10-3 (10° average), 2 x 10-2(1° average) |
|

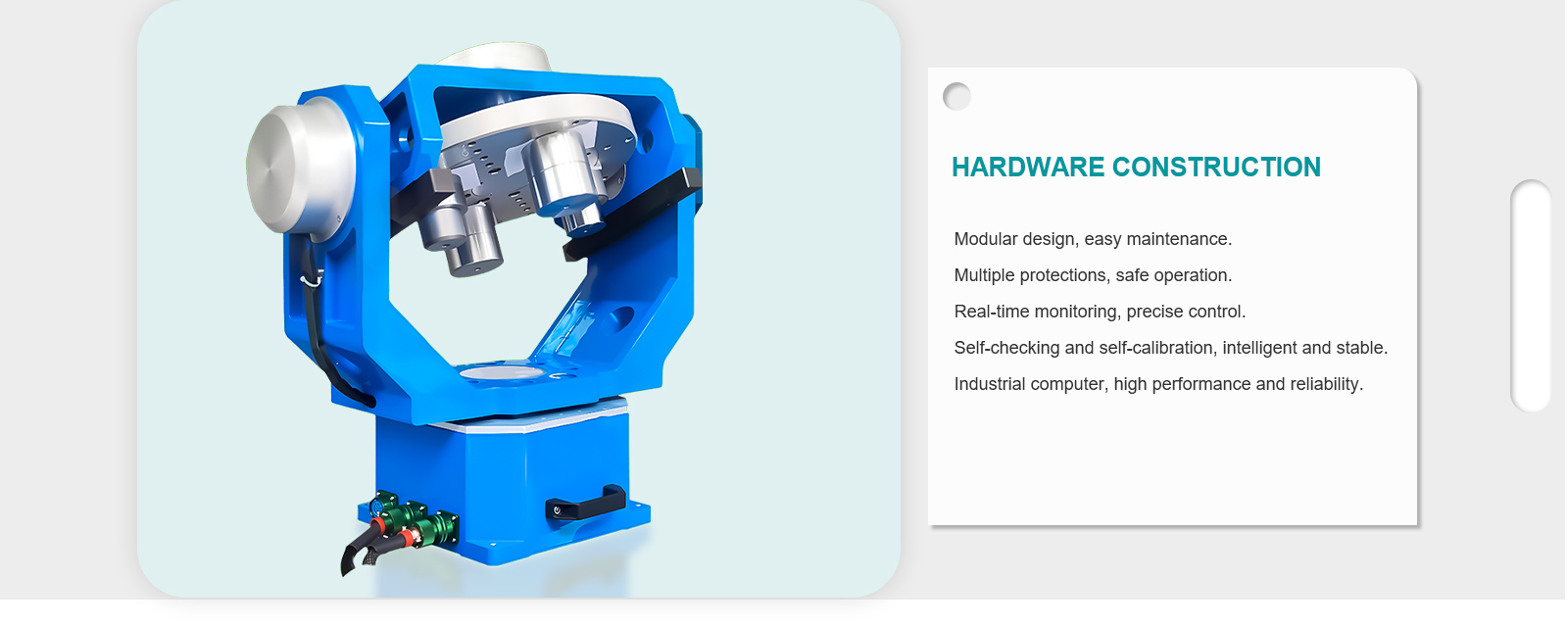

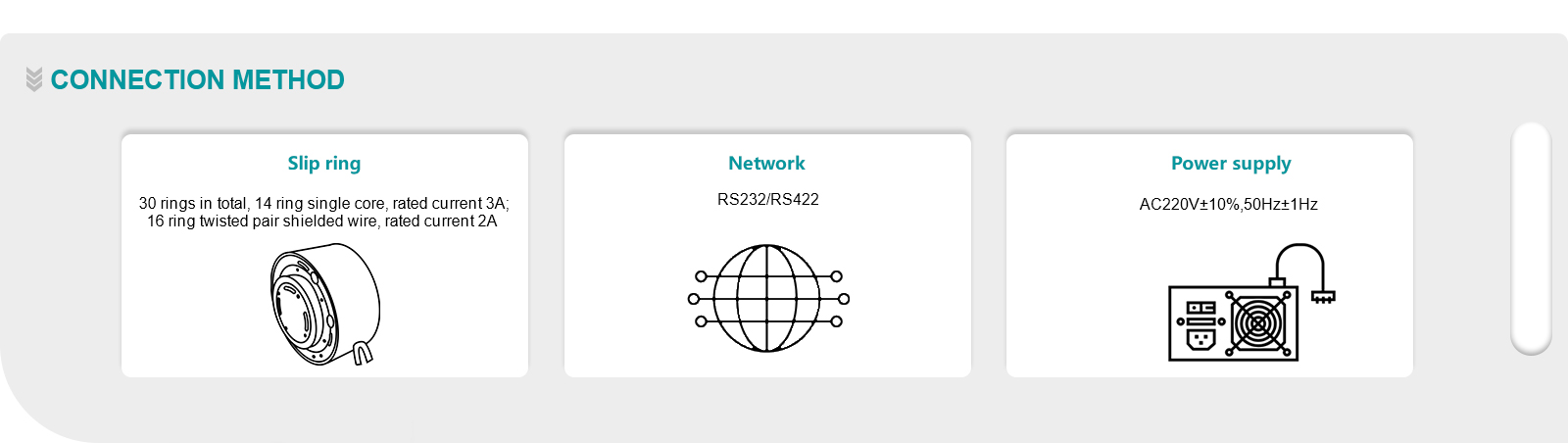

Slip ring |
Number of rings 30 rings, of which 14 rings single-core shield, rated current 3A; 16 rings double core shield, rated current 2A |
