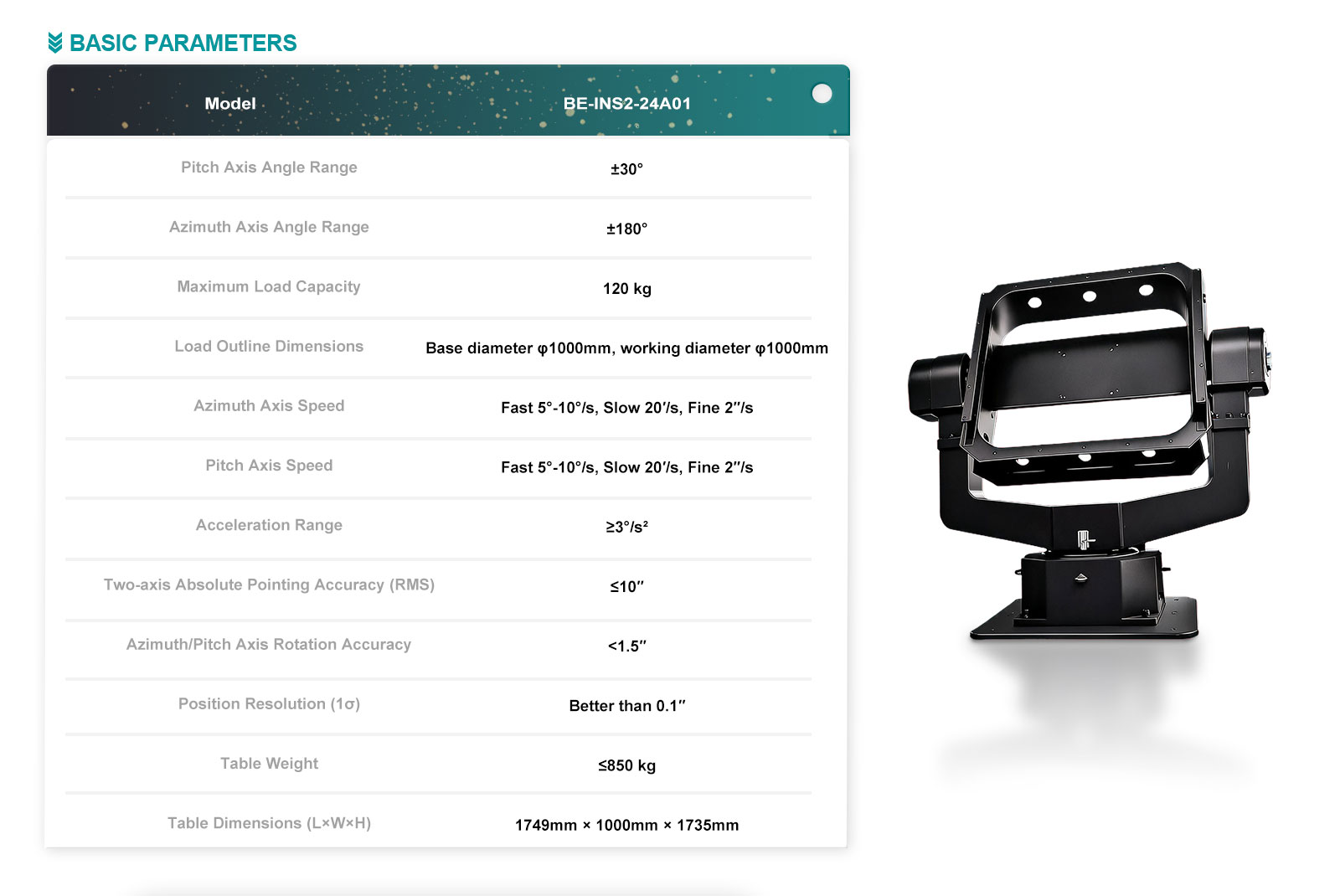

Pitch axis angle range: |
±30° |
|
Azimuth axis angle range: |
±180° |
|
Maximum load weight: |
120kg |
|
Load dimensions: |
base diameter φ1000mm, working range diameter φ1000mm |
|
Azimuth axis speed:
|
fast motion 5°～10°/s, slow motion 20′/s, micro motion 2″/s; |
|
Pitch axis speed:
|
fast motion 5°～10° /s, slow motion 20′/s, micro motion 2″/s; |
|
Acceleration range: |
≥3°/s² |
|
Comprehensive absolute pointing accuracy of two axes: |
≤10″ (RMS) |
|
Azimuth axis/pitch axis rotation accuracy: |
<1.5″ |
|
Position resolution: |
better than 0.1″ (1σ) |
|
Mechanical platform weight: |
≤850kg |
|
Mechanical platform dimensions: |
1749mm×1000mm×1735mm |
