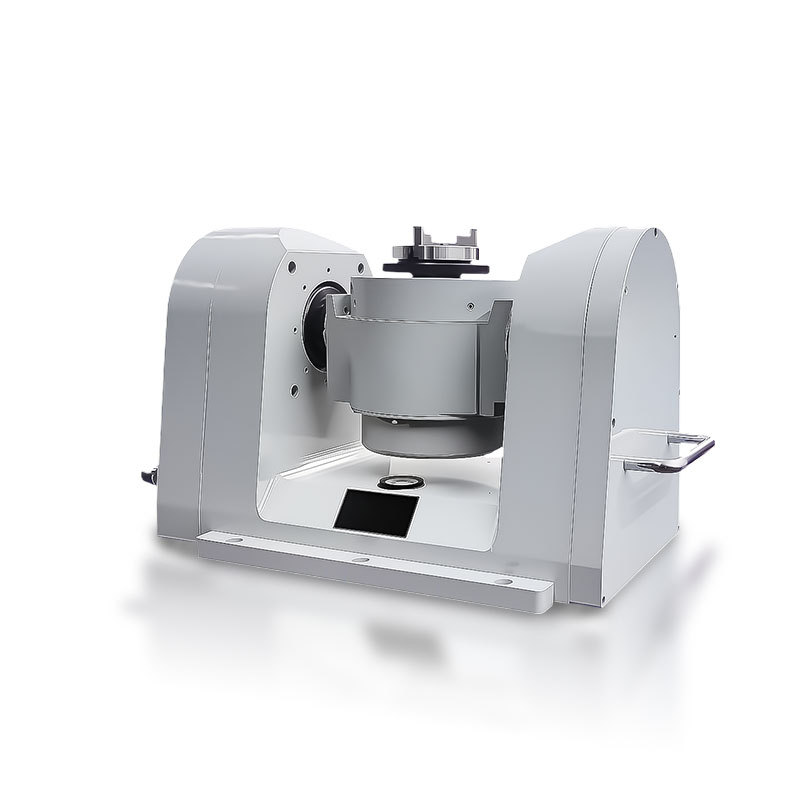

  • High precision dual axis rate table white background for aviation sensor R&D calibration

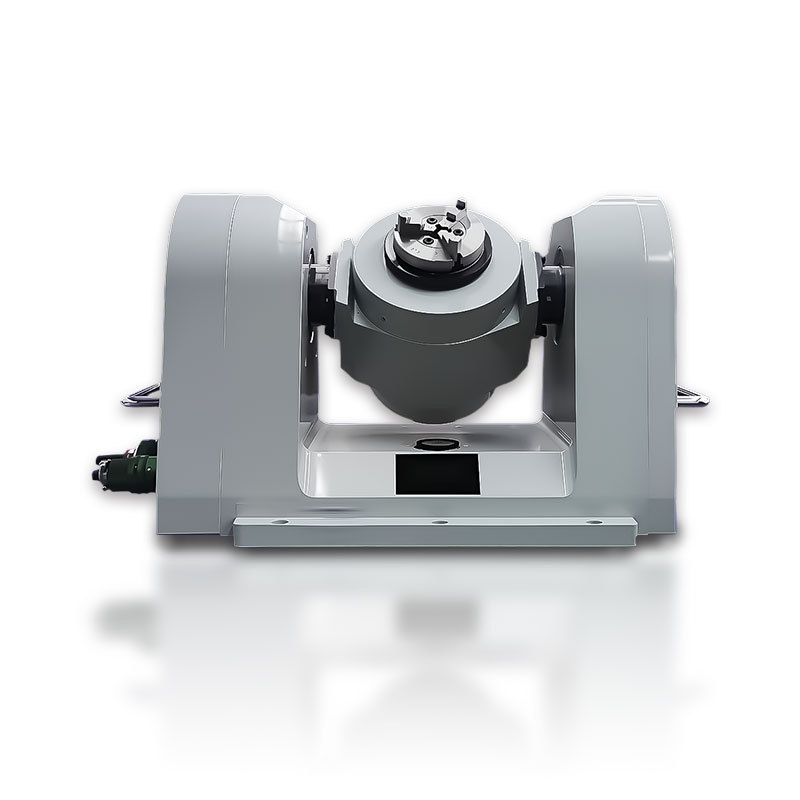

  • Motion simulation rate table with 432mm length and 115mm diameter platform in lab

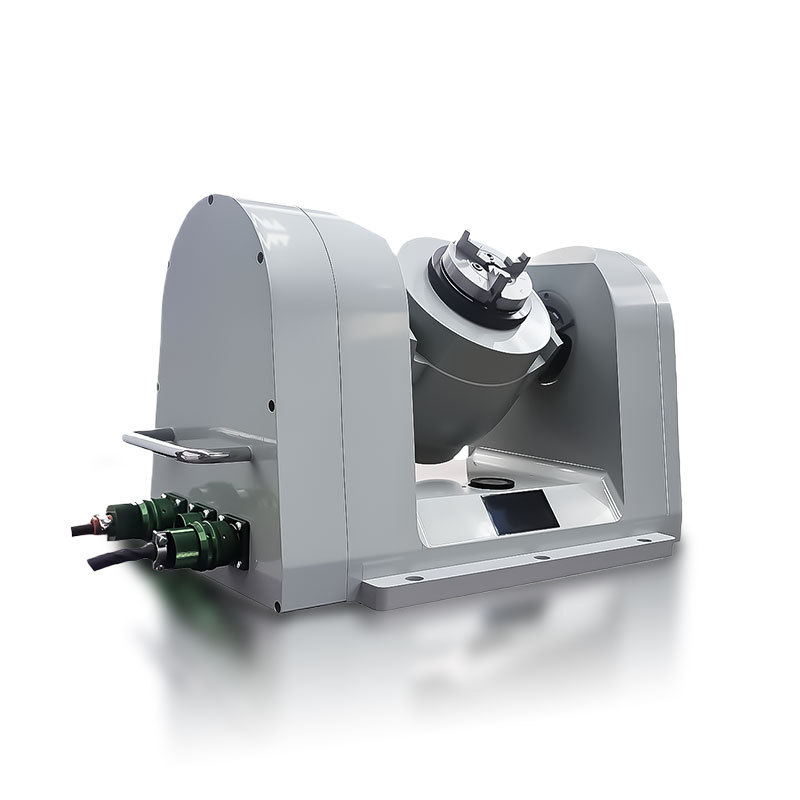

  • Rate table performing 500 degrees per second inner speed test for MEMS characterization

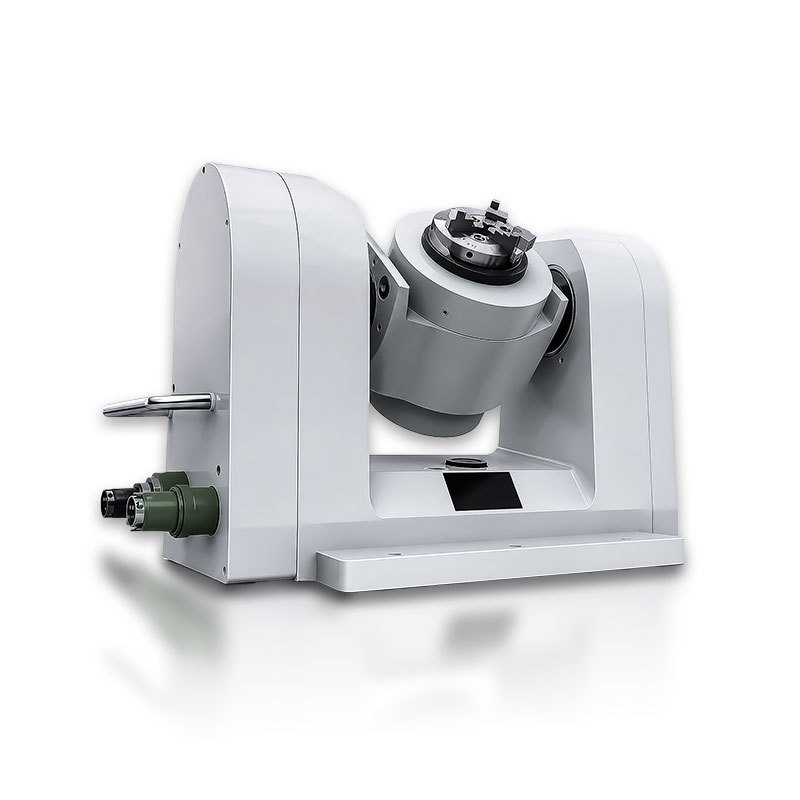

  • Close up of U-T structure shafting for ±10 arcsec angular accuracy and smooth rotation

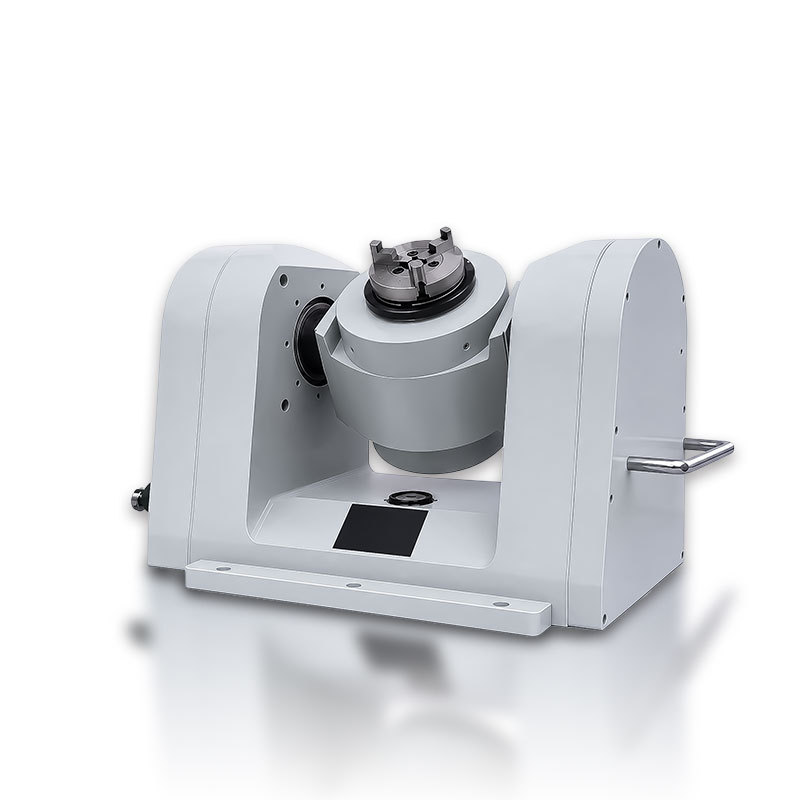

  • Test stand dimensions with 225mm width and 215mm height on engineering workbench

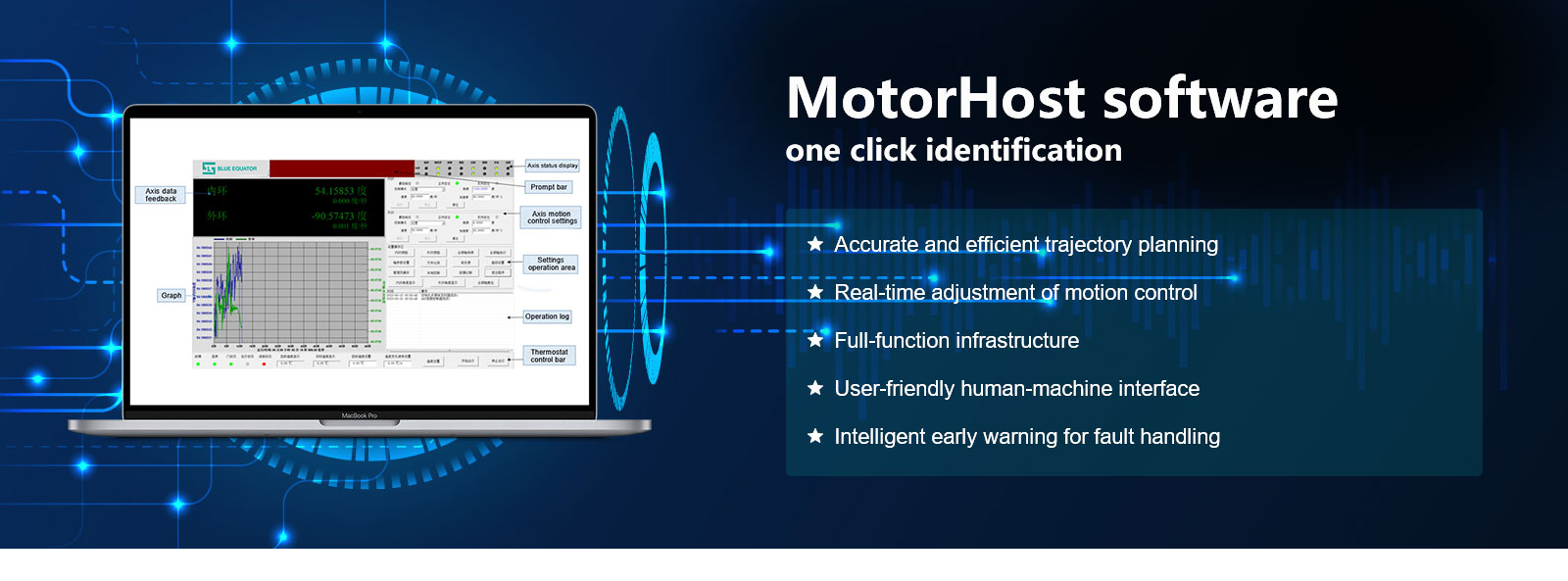

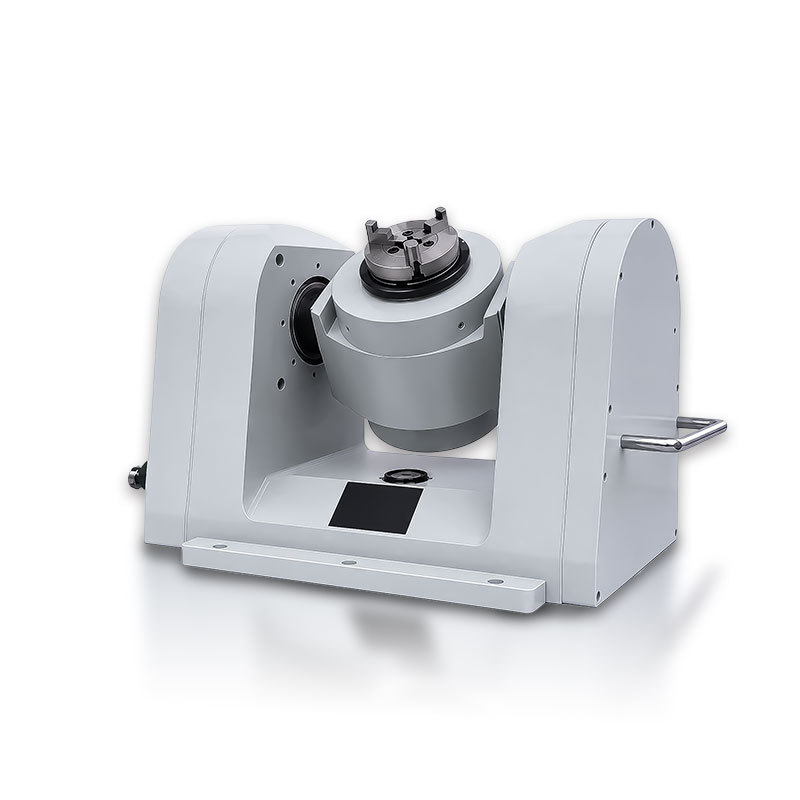

  • Automated control interface executing repeatable calibration sequence for aviation gyro
  • High precision dual axis rate table white background for aviation sensor R&D calibration
  • Motion simulation rate table with 432mm length and 115mm diameter platform in lab
  • Rate table performing 500 degrees per second inner speed test for MEMS characterization
  • Close up of U-T structure shafting for ±10 arcsec angular accuracy and smooth rotation
  • Test stand dimensions with 225mm width and 215mm height on engineering workbench
  • Automated control interface executing repeatable calibration sequence for aviation gyro

High Precision Dual Axis Rate Table for Aviation Sensor R&D Calibration

No.BE-INS2-23A04
This high precision dual axis rate table functions as motion simulation rate table and gyro calibration fixture for aviation sensor R&D. Advantages: 500°/s inner ring speed range covers diverse test conditions, ±10″ angular accuracy ensures repeatable sensor characterization, and compact 115mm table fits tight engineering benches. Includes miniature three-claws for flexible load mounting. Perfect for aviation gyro calibration, automotive MEMS sensor validation,and industrial inertial device R&D.
Specifications
Position accuracy:
±10″
Table diameter:
≤115mm
Carrying capacity:
≥ 5kg
GET A QUOTE
Download
View all downloads
  • High precision dual axis rate table white background for aviation sensor R&D calibration
  • Motion simulation rate table with 432mm length and 115mm diameter platform in lab
  • Rate table performing 500 degrees per second inner speed test for MEMS characterization
  • Close up of U-T structure shafting for ±10 arcsec angular accuracy and smooth rotation
  • Test stand dimensions with 225mm width and 215mm height on engineering workbench
  • Automated control interface executing repeatable calibration sequence for aviation gyro

Description

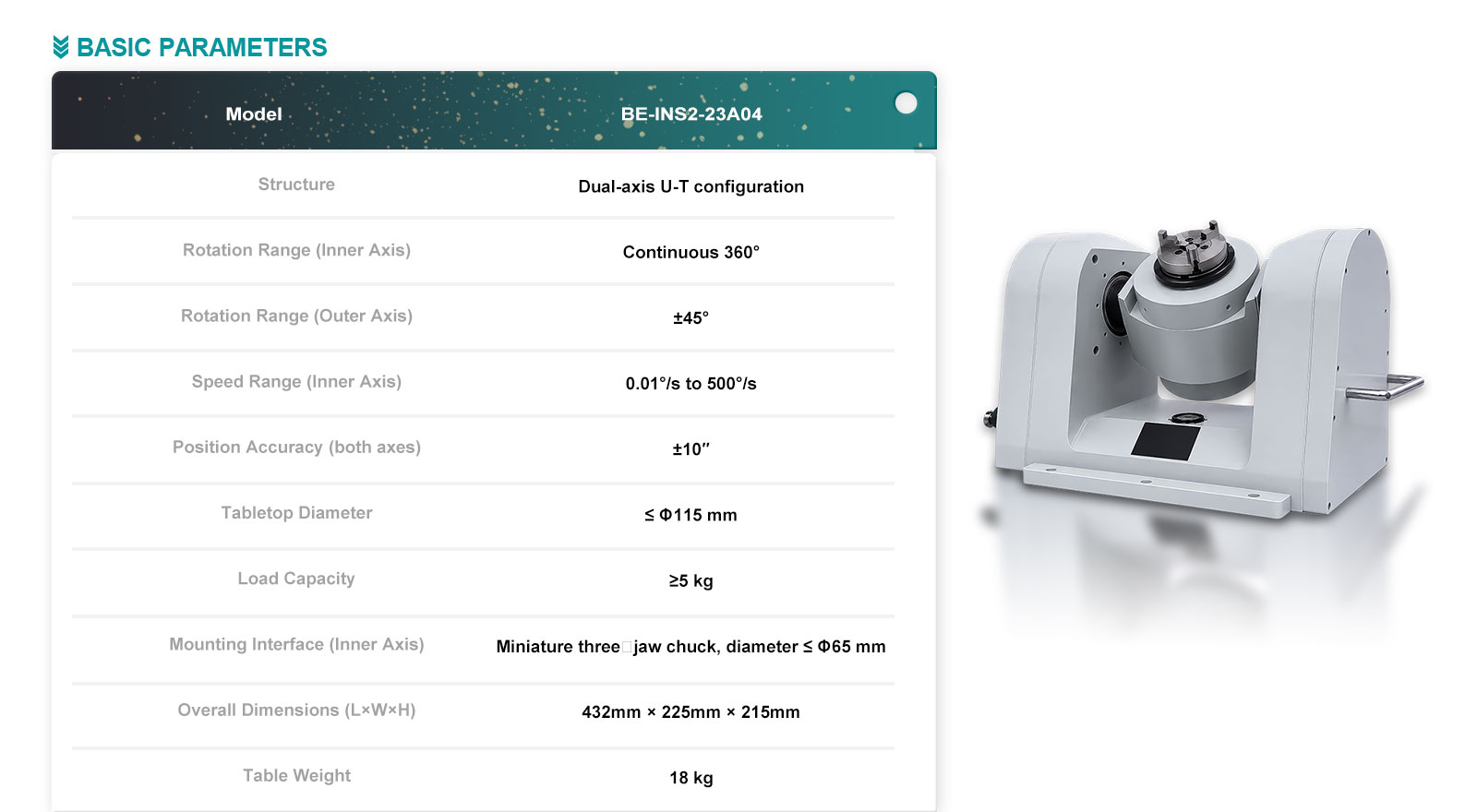

Technical parameter
Product structure: The double shaft is U-T structure
Rotation angle range: 360° continuous rotation of the inner ring, ±45° of the outer ring
Speed range: inner ring: 0.01°/s～500°/s
Position accuracy of two-axis indexing mechanism: ±10″
Table diameter: ≤115mm
Carrying capacity: ≥ 5kg
Installation interface: The inner ring table can be installed with miniature three-claws, and the diameter of the three-claws is not larger than 65mm
Overall dimensions: 432×225×215 (mm)
Turntable weight: 18kg
