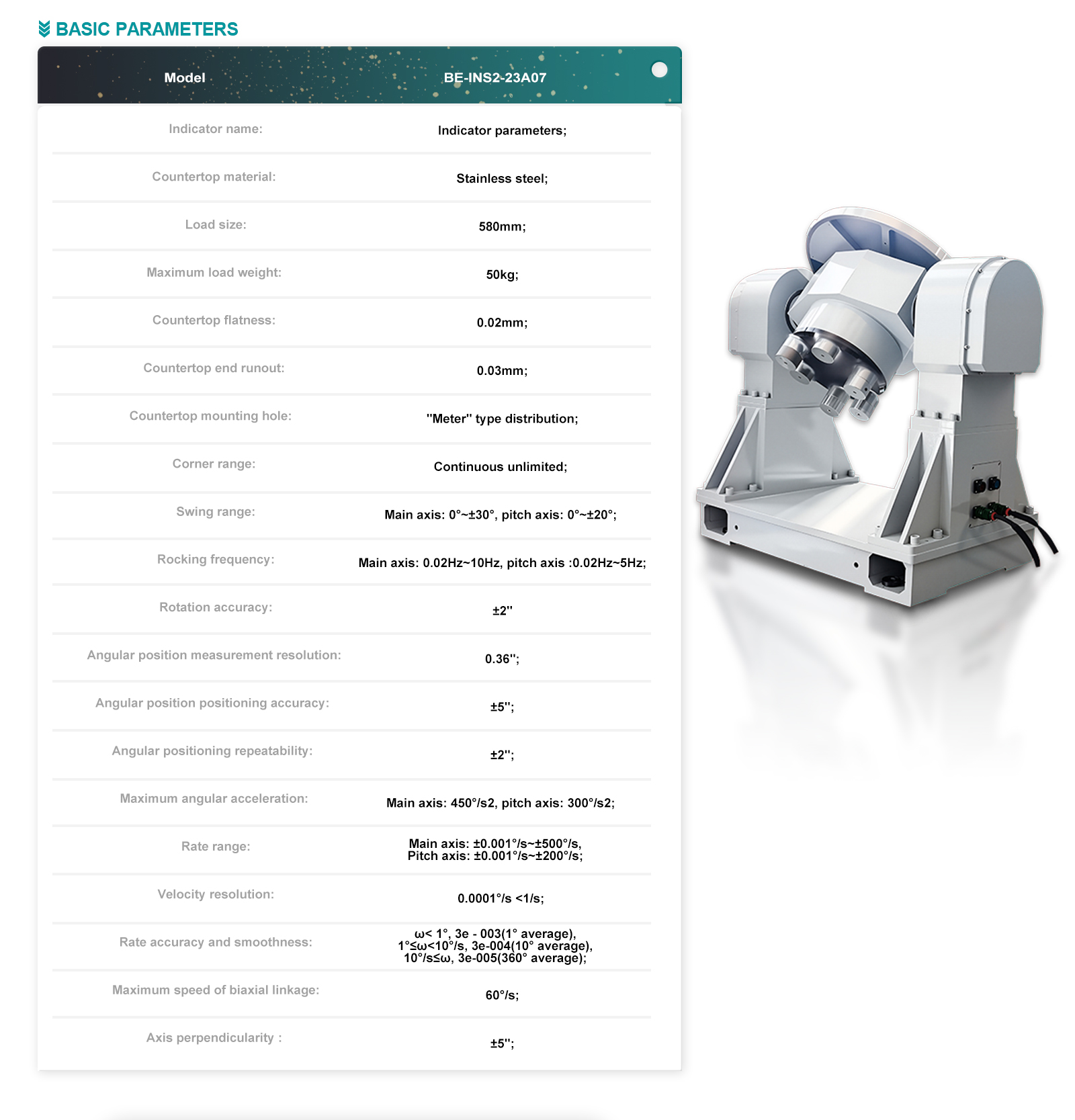

Indicator name |
Indicator parameters |
|

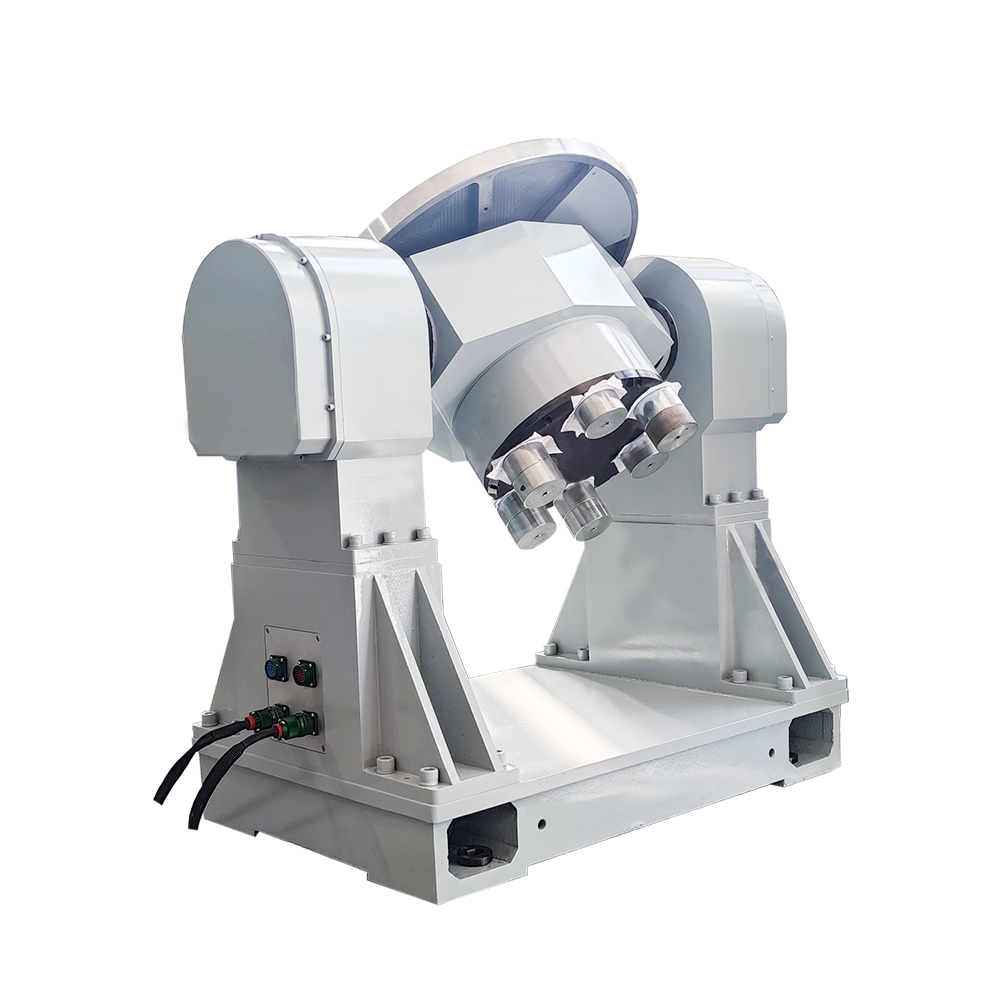

Countertop material |
Stainless steel |
|

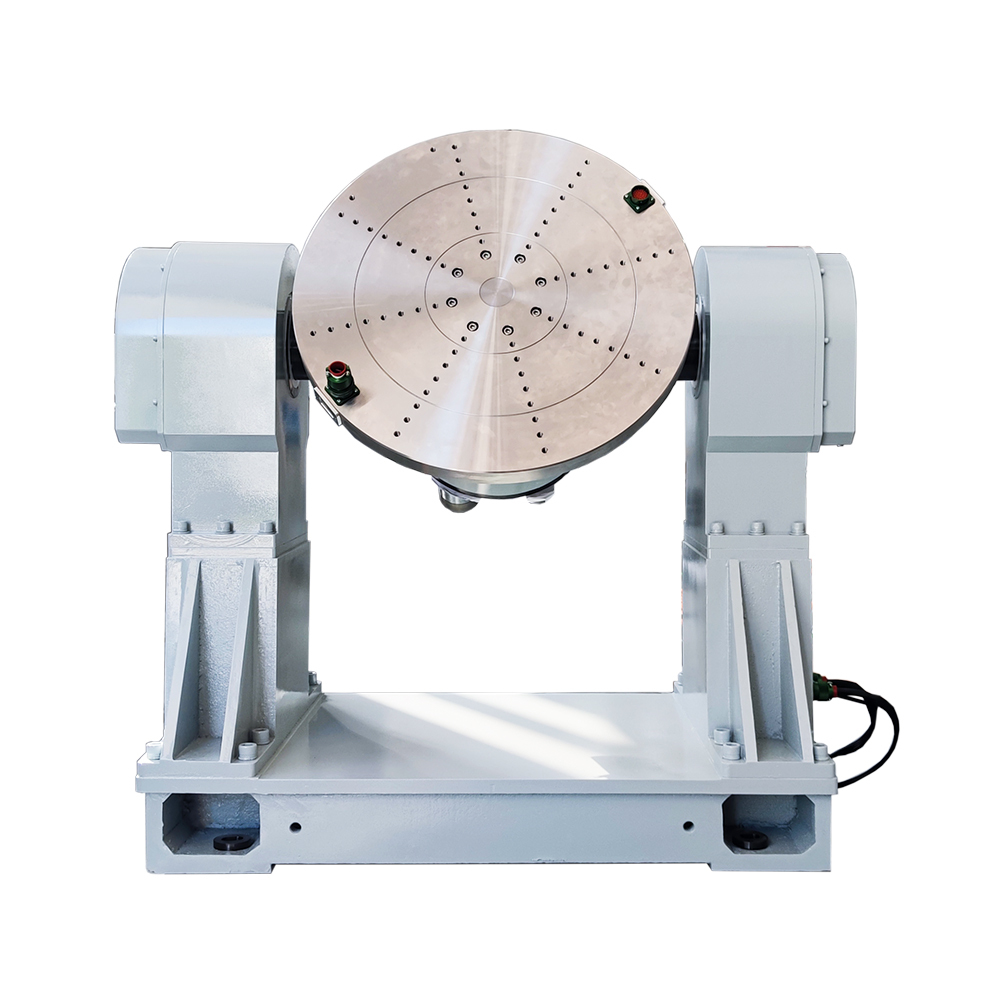

Load size |
580mm |
|
Maximum load weight |
50kg |
|
Countertop flatness |
0.02mm |
|
Countertop end runout |
0.03mm |
|
Countertop mounting hole |
"Meter" type distribution |
|
Corner range |
Continuous unlimited |
|
Swing range |
Main axis: 0°~±30°, pitch axis: 0°~±20° |
|
Rocking frequency |
Main axis: 0.02Hz~10Hz, pitch axis :0.02Hz~5Hz |
|
Rotation accuracy |
±2" |
|
Angular position measurement resolution |
0.36" |
|
Angular position positioning accuracy |
±5" |
|
Angular positioning repeatability |
±2" |
|
Maximum angular acceleration |
Main axis: 450°/s2, pitch axis: 300°/s2 |
|
Rate range |
Main axis: ±0.001°/s~±500°/s, pitch axis: ±0.001°/s~±200°/s |
|
Velocity resolution |
0.0001°/s <1/s |
|
Rate accuracy and smoothness |
ω< 1°, 3e-003(1° average) 1°≤ω<10°/s, 3e-004(10° average) 10°/s≤ω, 3e-005(360° average) |
|
Maximum speed of biaxial linkage |
60°/s |
|
Axis perpendicularity |
±5" |
