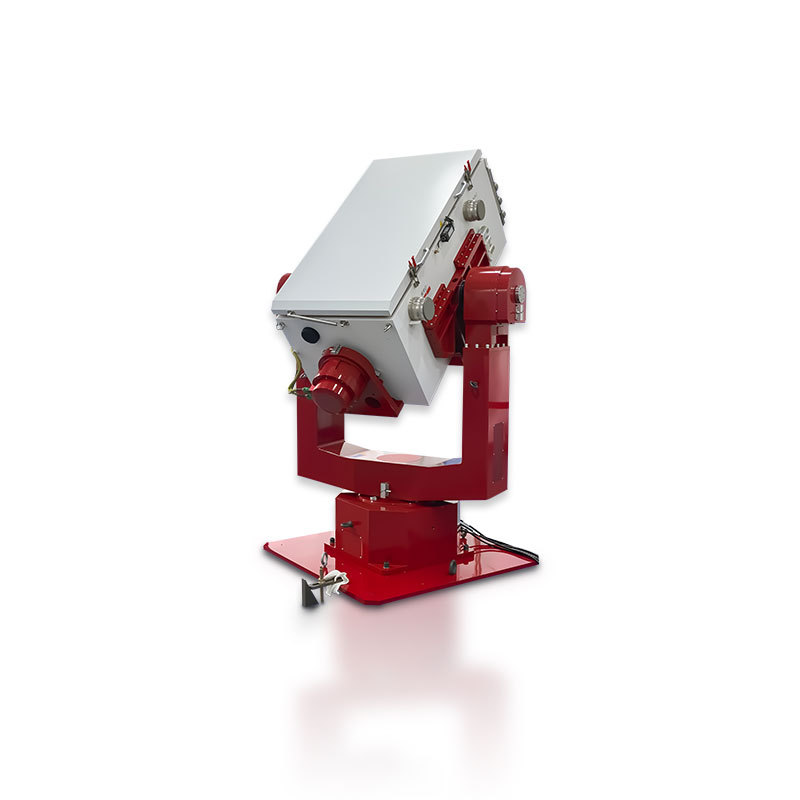

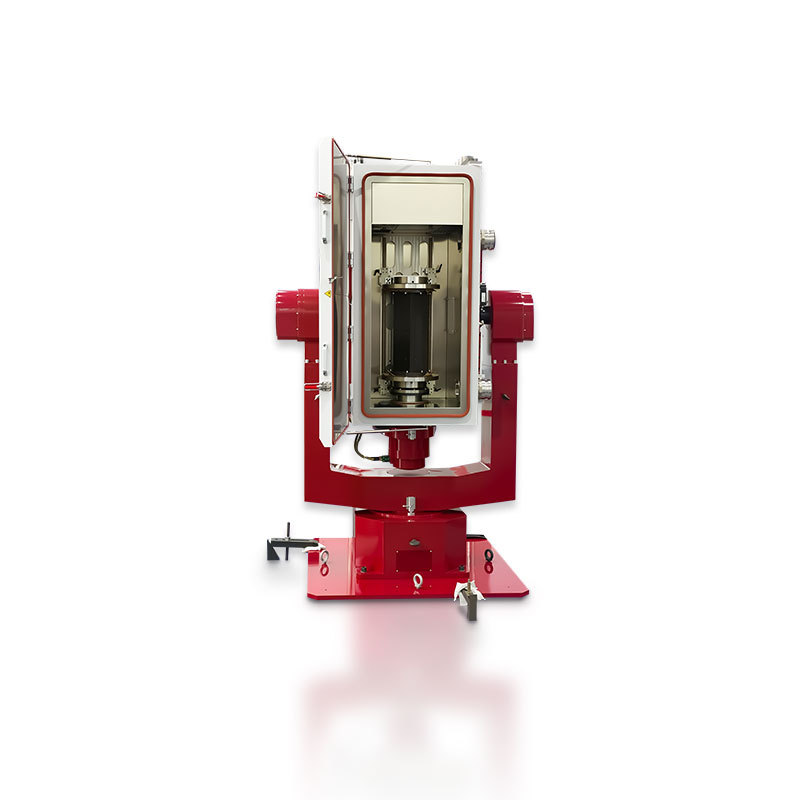

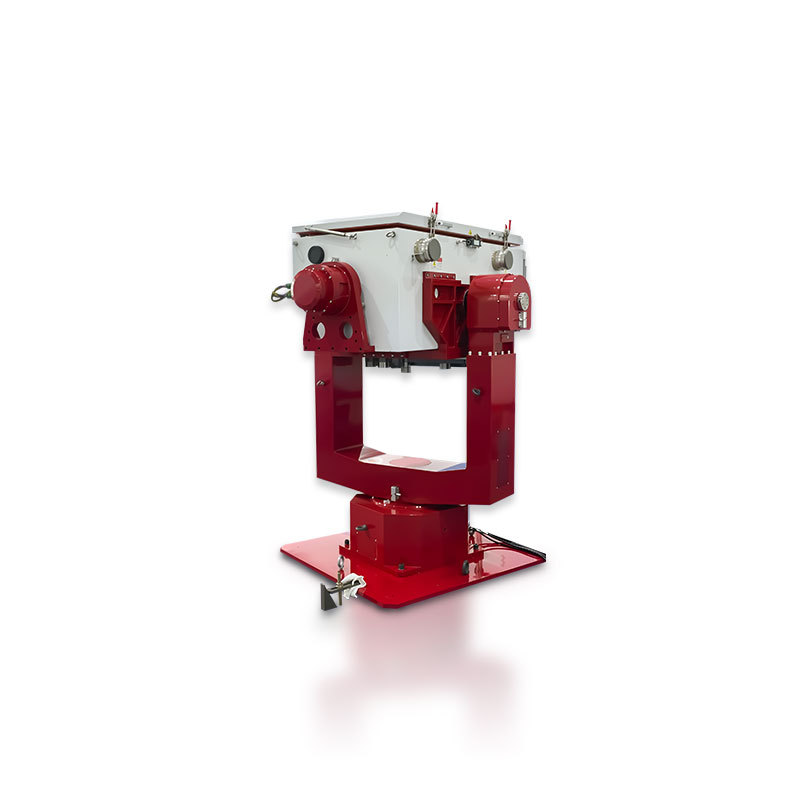

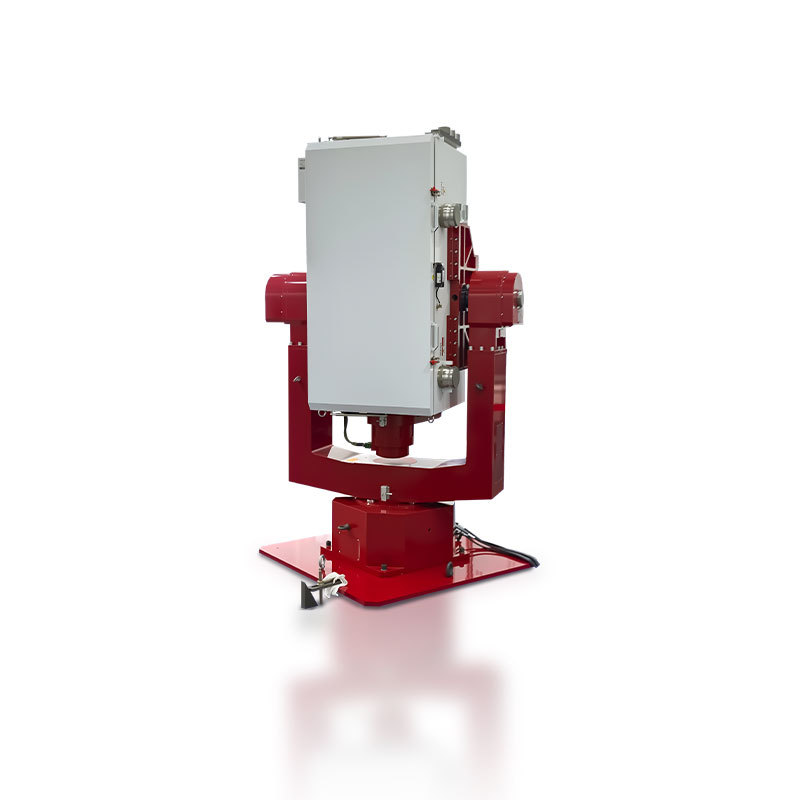

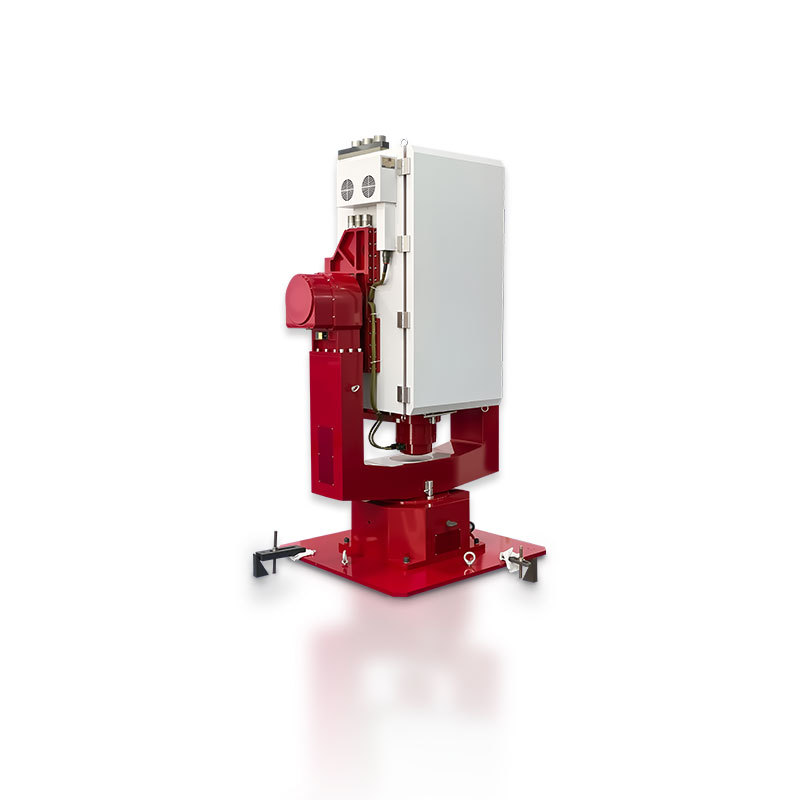

Inertial Navigation Test Table for Gyroscope Calibration

No.BE-INS3-26A09

Our precision Inertial Navigation Test Table and Motion Simulator deliver high-accuracy calibration for gyroscope, inertial navigation systems and MEMS sensors, featuring 20 arcsec position precision, 150kg load capacity, 200℃ thermal chamber, ±0.1% rate accuracy, and 50deg/s² angular acceleration. Ideal for INS testing, UAV sensor verification, and automotive IMU calibration.

Variations

Edit selections

Rated load capacity: 150kg

150kg

Temperature chamber range: Room temperature to 200 °C

Room temperature to 200 °C

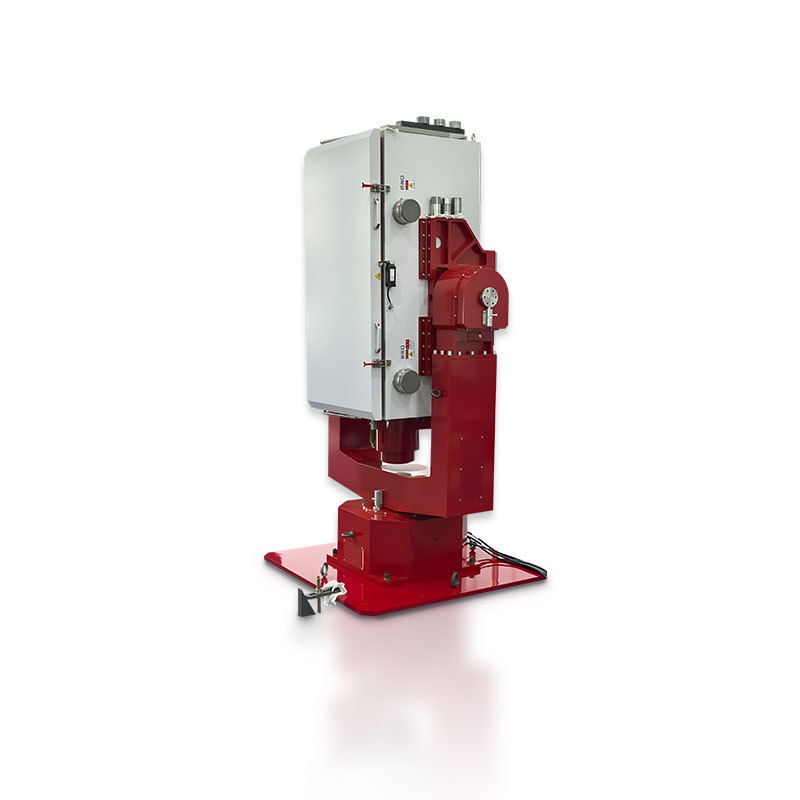

Payload envelope (platform mounting): φ240 mm × 700 mm (diameter × height)

φ240 mm × 700 mm (diameter × height)

Angular acceleration: 50 deg/s² (all frames)

50 deg/s² (all frames)

Select variations and quantity

Rated load capacity: 150kg

150kg

Temperature chamber range: Room temperature to 200 °C

Room temperature to 200 °C

Payload envelope (platform mounting): φ240 mm × 700 mm (diameter × height)

φ240 mm × 700 mm (diameter × height)

Angular acceleration: 50 deg/s² (all frames)

The min. inquiry quantity is 0. Add 0 more to continue.

50 deg/s² (all frames)

Subtotal

GET A QUOTE

Download

View all downloads

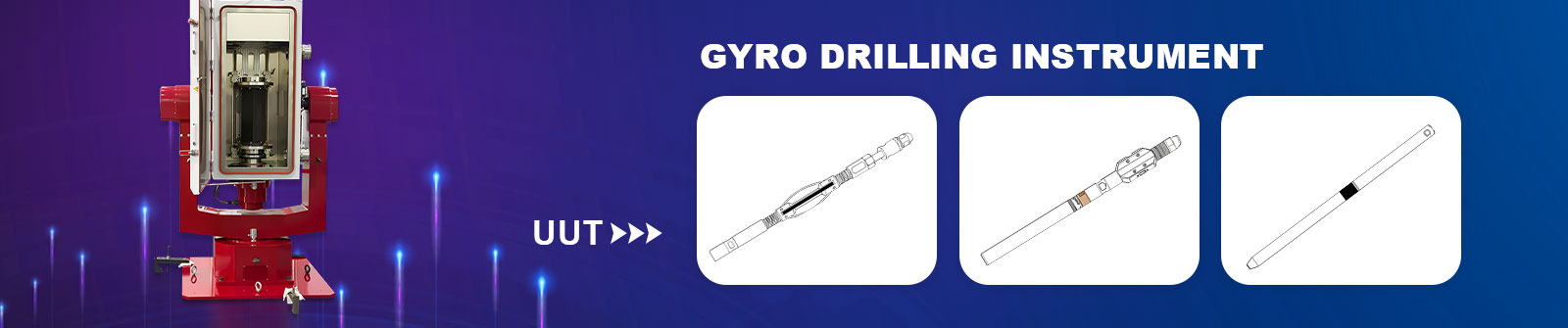

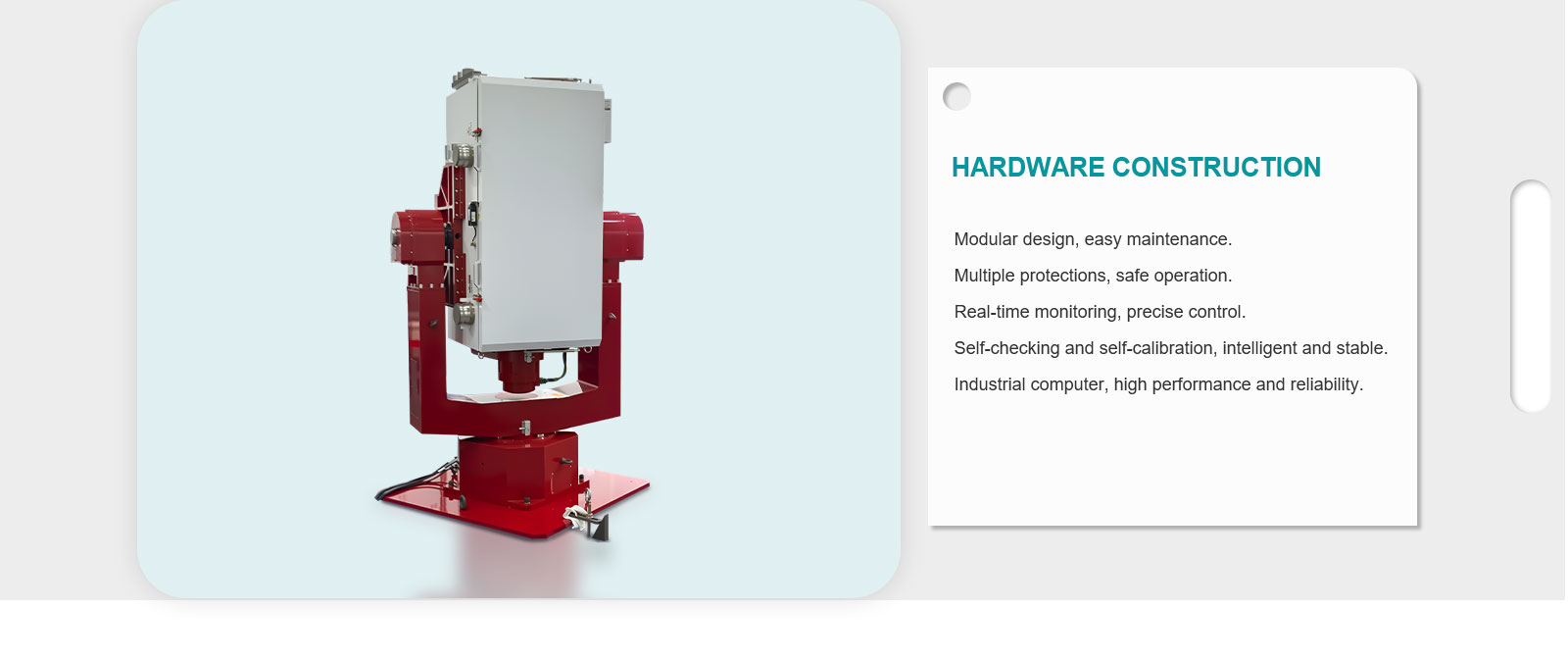

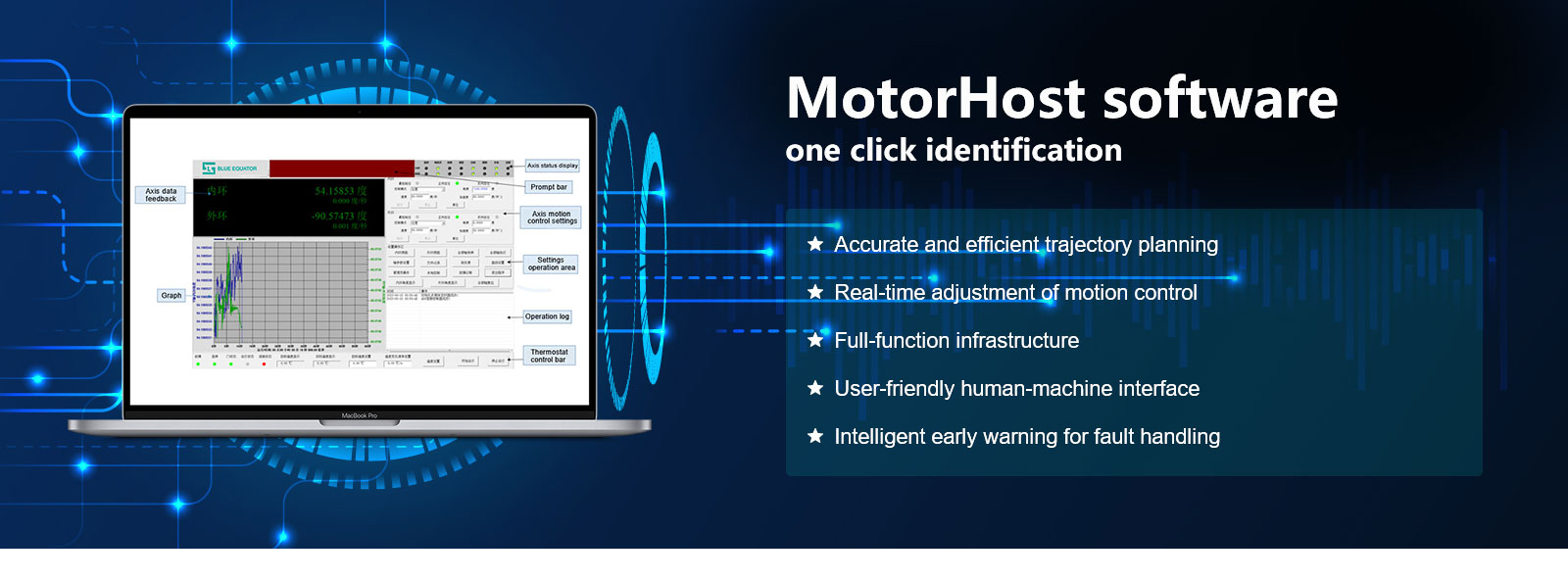

Description

Technical Specifications – Consolidated Table

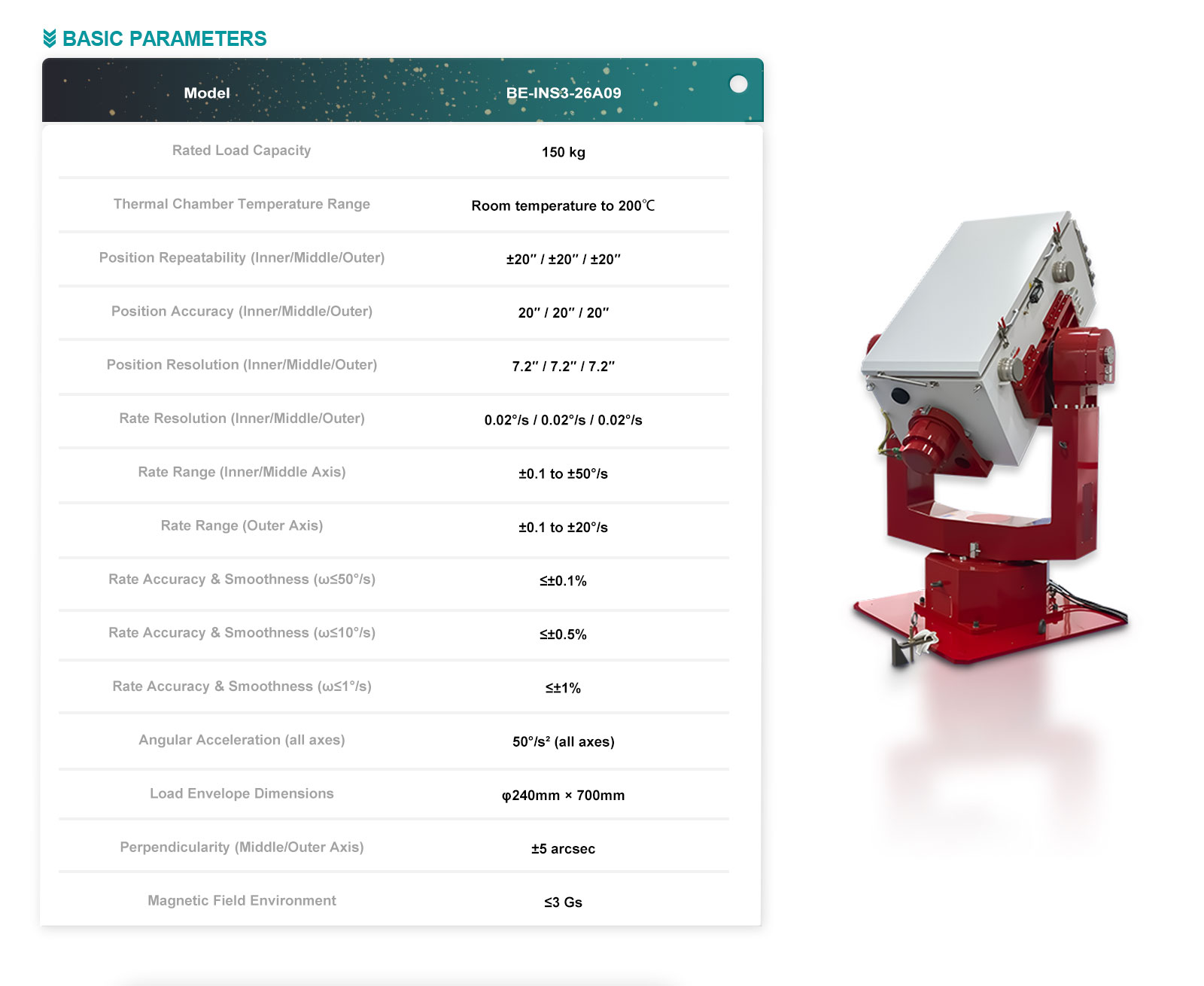

Parameter	Specification
Rated load capacity	150 kg
Temperature chamber range	Room temperature to 200 °C
Position repeatability	±20 arcsec (inner, middle, and outer frames)
Position accuracy	20 arcsec (all frames)
Position resolution	7.2 arcsec (all frames)
Rate resolution	0.02 deg/s (all frames)
Rate range	Inner & middle frames: ±0.1 ~ ±50 deg/s Outer frame: ±0.1 ~ ±20 deg/s (only when instrument is near vertical, within ±5°)
Rate accuracy & smoothness	≤ ±0.1% for ω ≤ 50 °/s ≤ ±0.5% for ω ≤ 10 °/s ≤ ±1% for ω ≤ 1 °/s
Angular acceleration	50 deg/s² (all frames)
Payload envelope (platform mounting)	φ240 mm × 700 mm (diameter × height)
Perpendicularity (middle to outer frame)	±5 arcsec
Magnetic field environment	≤3 Gs

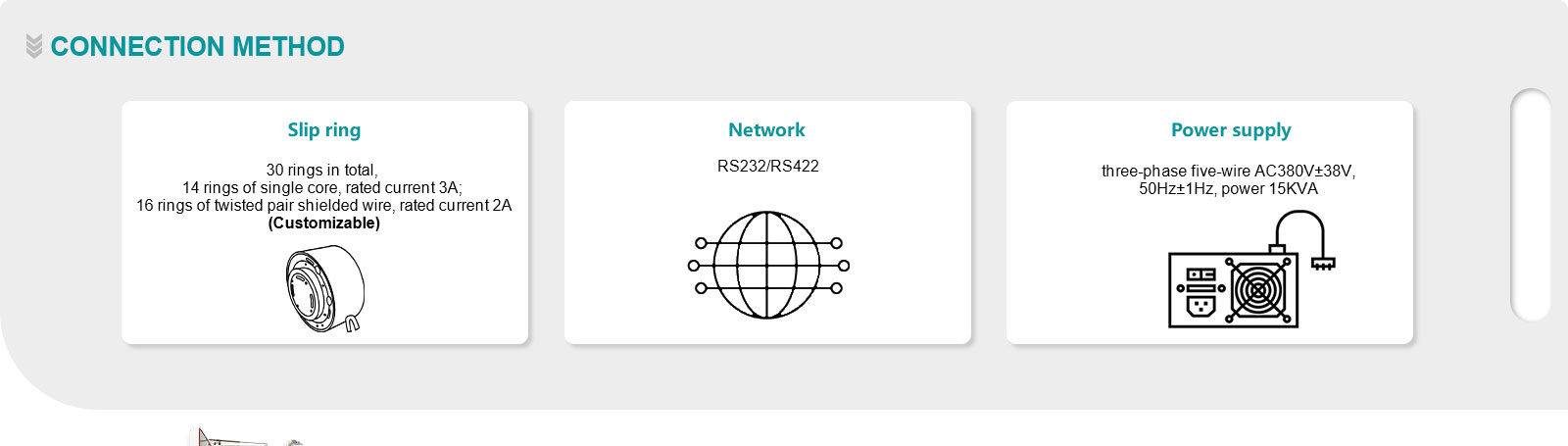

Operating Environment

Parameter	Specification
Power supply	AC 220 V ±10 %, 50 Hz ±1 Hz
Operating temperature	–10 °C to +35 °C
Storage temperature	–20 °C to +45 °C
Relative humidity	20 % ~ 80 %
Environment conditions	Stable indoor air; no strong magnetic interference; no severe vibration or shock nearby
Foundation	Ordinary vibration isolation foundation
Grounding resistance	≤4 Ω
