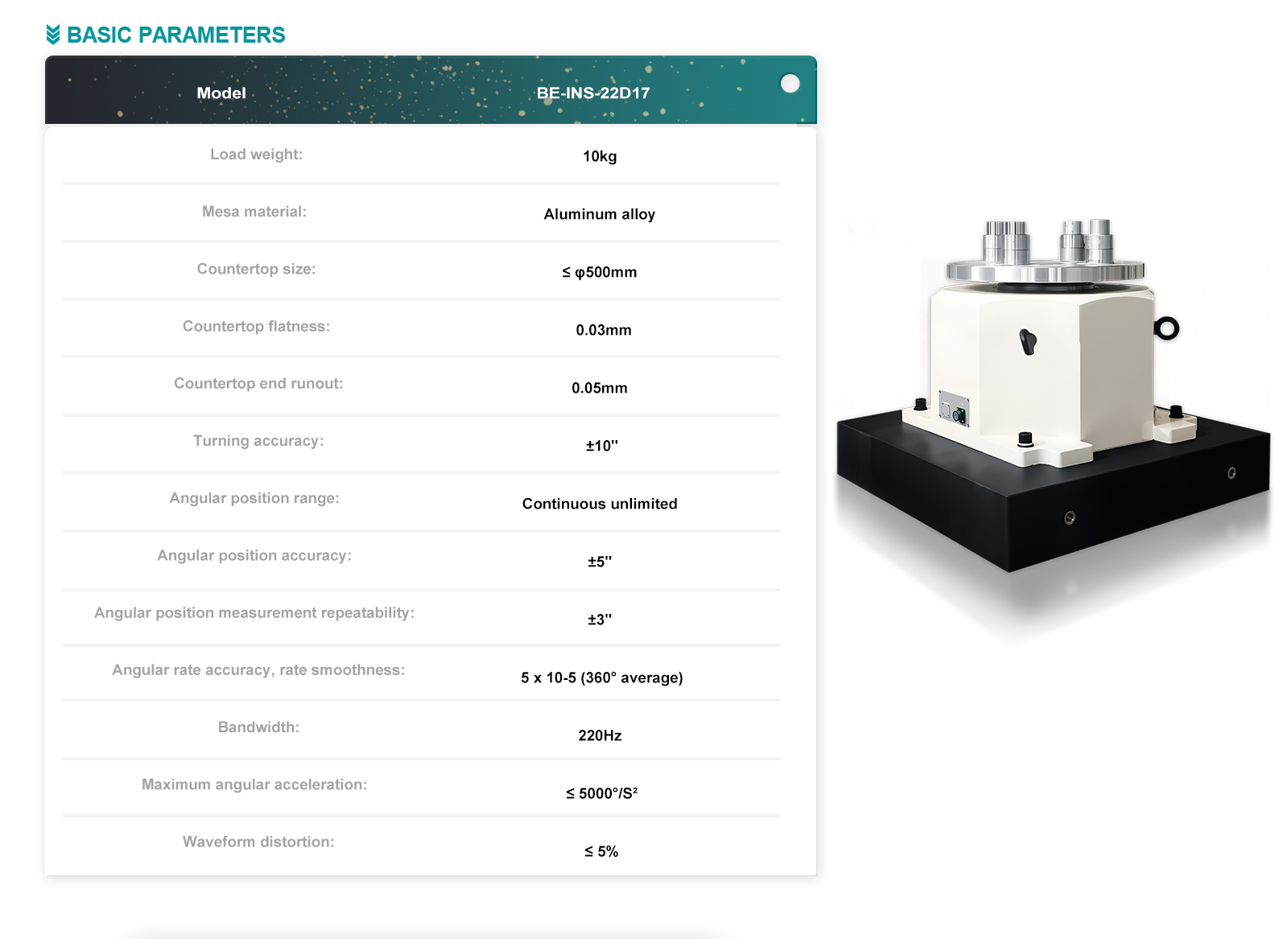

Index name |
Indicator parameters |
|
Load weight |
10kg |
|

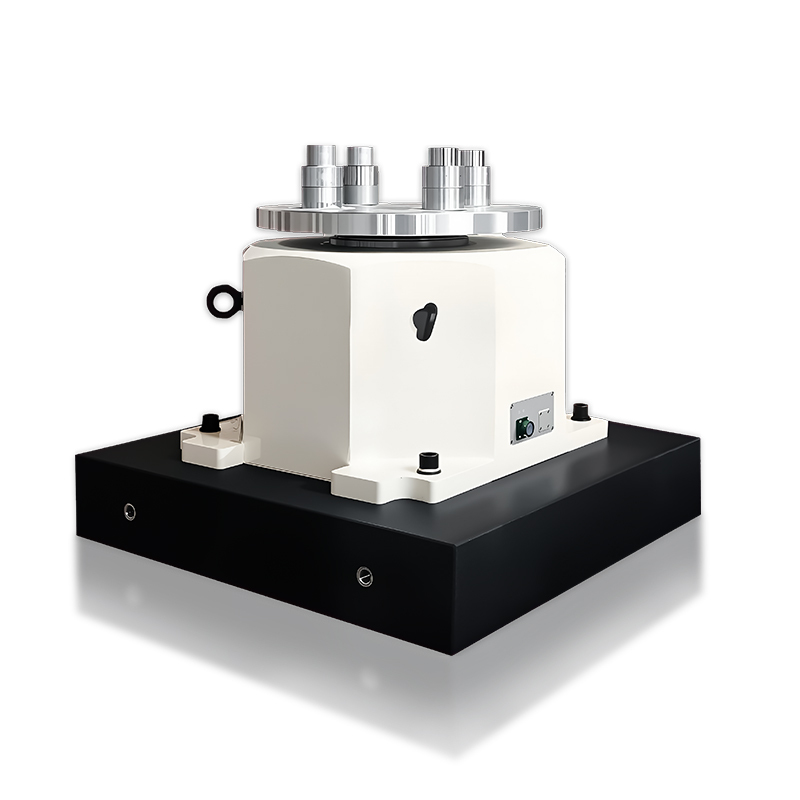

Mesa material |
Aluminum alloy |
|
Countertop size |
≤ φ500mm |
|
Countertop flatness |
0.03mm |
|
Countertop end runout |
0.05mm |
|
Turning accuracy |
±10" |
|
Angular position range |
Continuous unlimited |
|

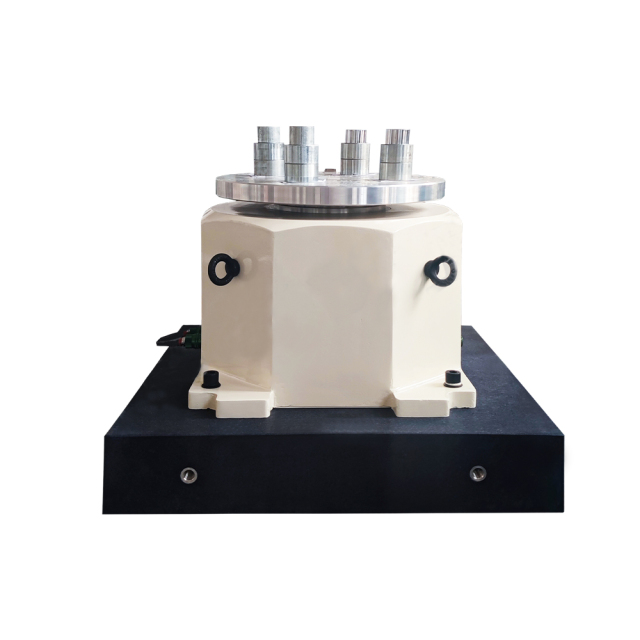

Angular position accuracy |
±5" |
|
Angular position measurement repeatability |
±3" |
|
Angular rate accuracy, rate smoothness |
5 x 10-5 (360° average) |
|
Bandwidth |
220Hz |
|
Maximum angular acceleration |
≤ 5000°/S² |
|
Waveform distortion |
≤ 5% |
