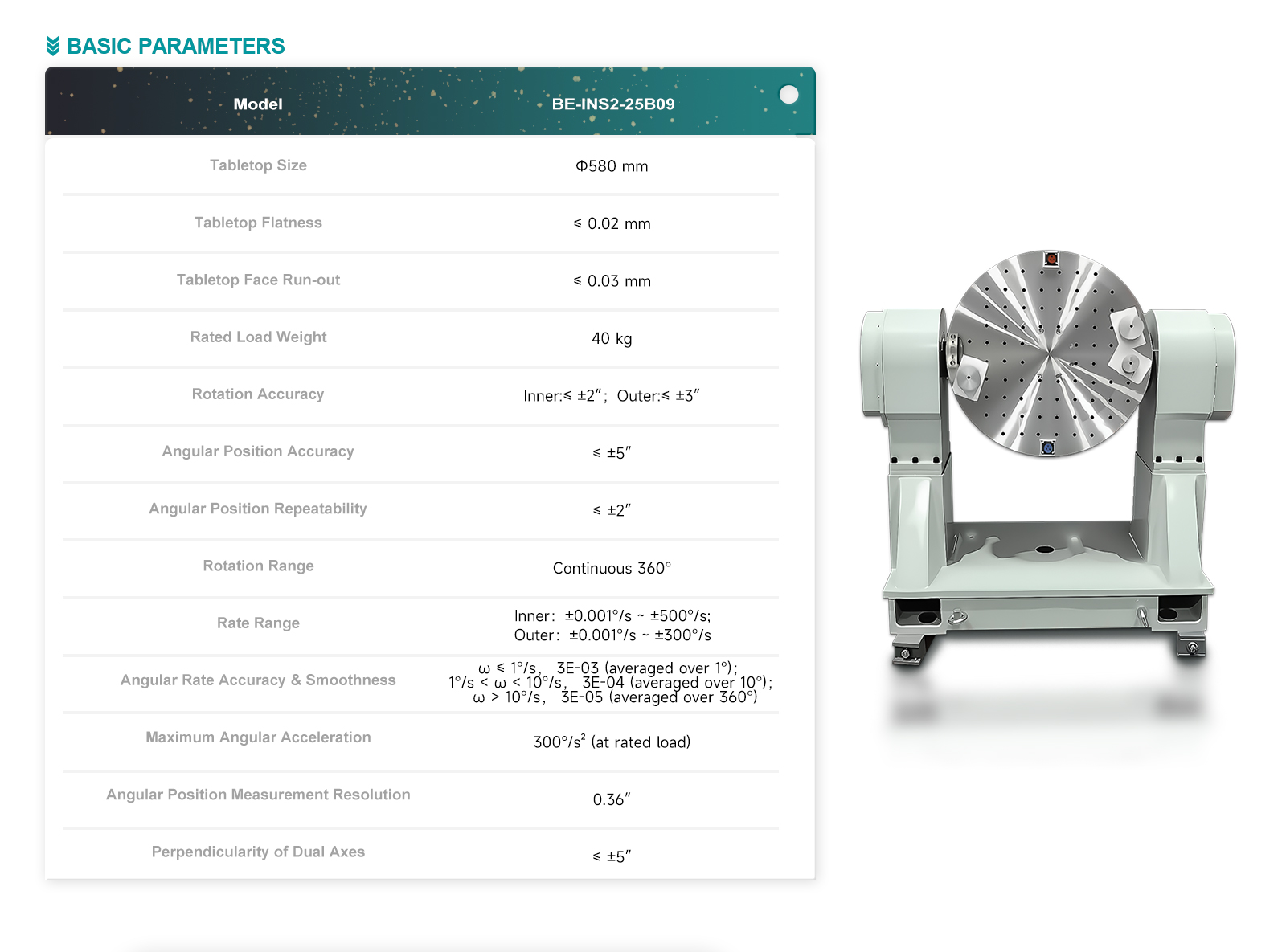

| Indicator Name | Indicator Parameters |
|---|---|
| Countertop material | Stainless steel |

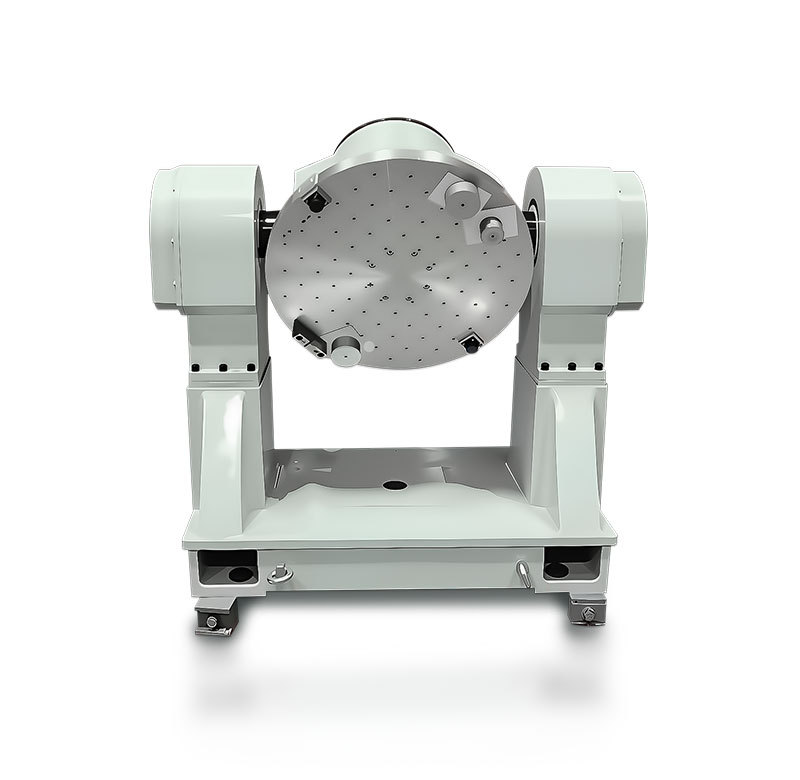

| Load size | 580mm |

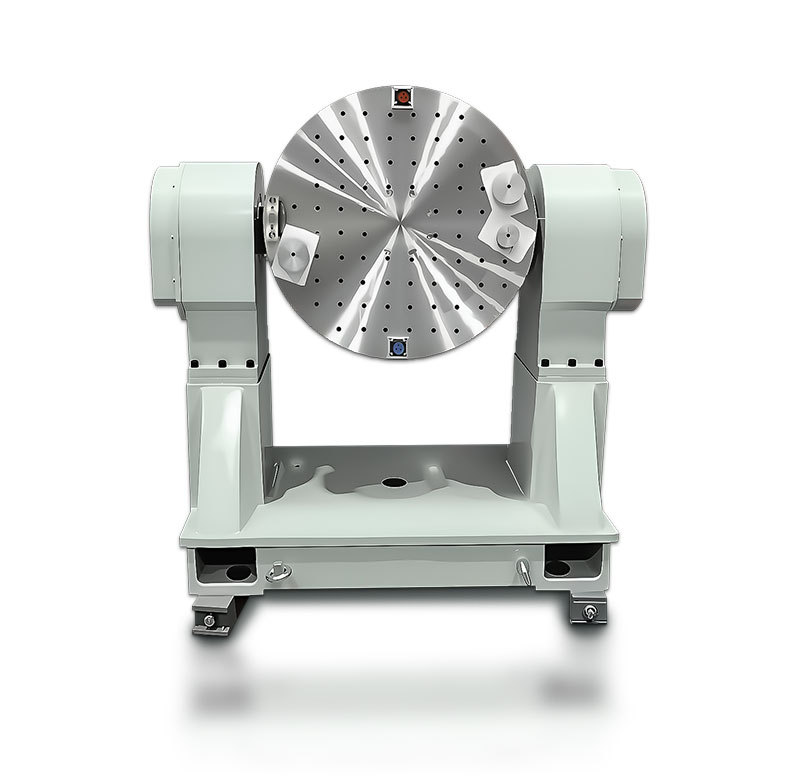

| Maximum load weight | 40kg |
| Countertop flatness | 0.02mm |
| Countertop end runout | 0.03mm |
| Rotation accuracy | ±2" |
| Corner range | Continuous unlimited |

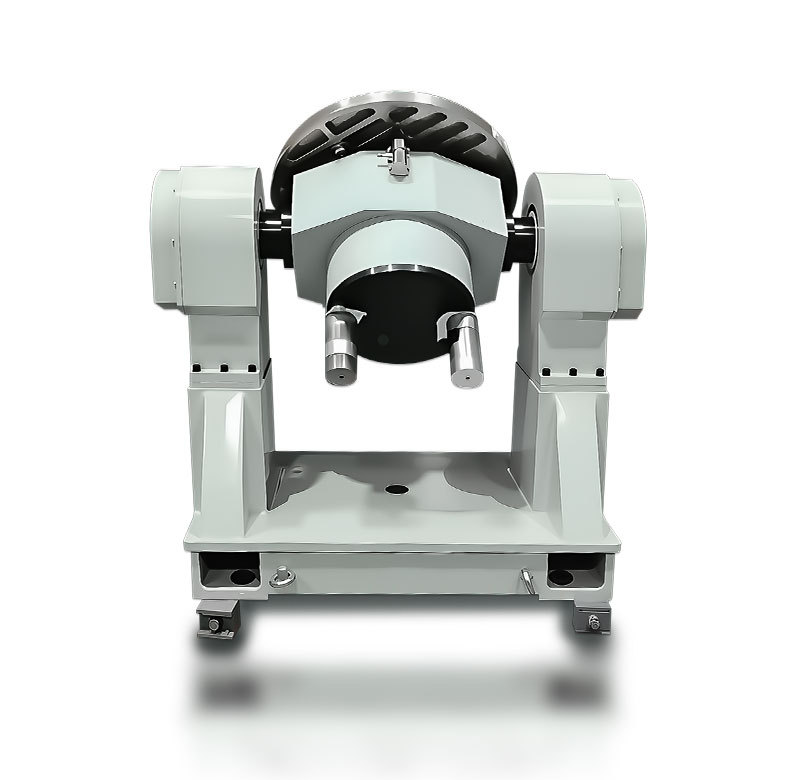

| Swing range | Main axis: 0°~±30° Pitch axis: 0°~±20° |
| Rocking frequency | Main axis: 0.02Hz~10Hz Pitch axis: 0.02Hz~5Hz |
| Rotation accuracy | ±2" |
| Angular position measurement resolution | 0.36" |
| Angular position positioning accuracy | ±5" |
| Angular positioning repeatability | ±2" |

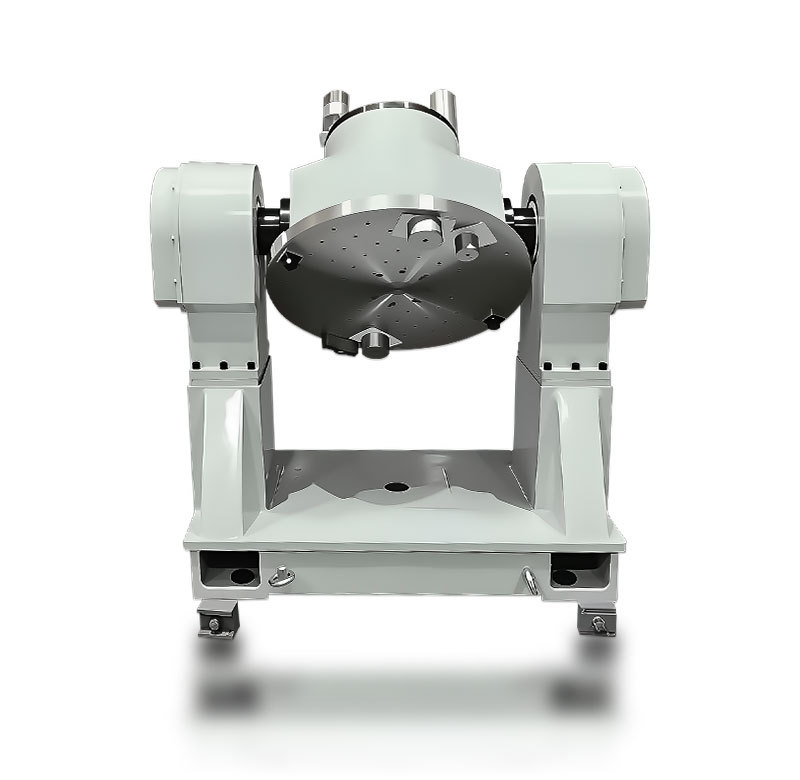

| Maximum angular acceleration | 300°/s² |
| Rate range | Main axis: ±0.001°/s~±500°/s Pitch axis: ±0.001°/s~±300°/s |
| Velocity resolution | 0.0001°/s <1/s |
| Rate accuracy and smoothness | ω< 1°: 3e-003 (1° avg) 1°≤ω<10°/s: 3e-004 (10° avg) 10°/s≤ω: 3e-005 (360° avg) |
| Maximum speed of biaxial linkage | 60°/s |
| Axis perpendicularity | ±5" |
