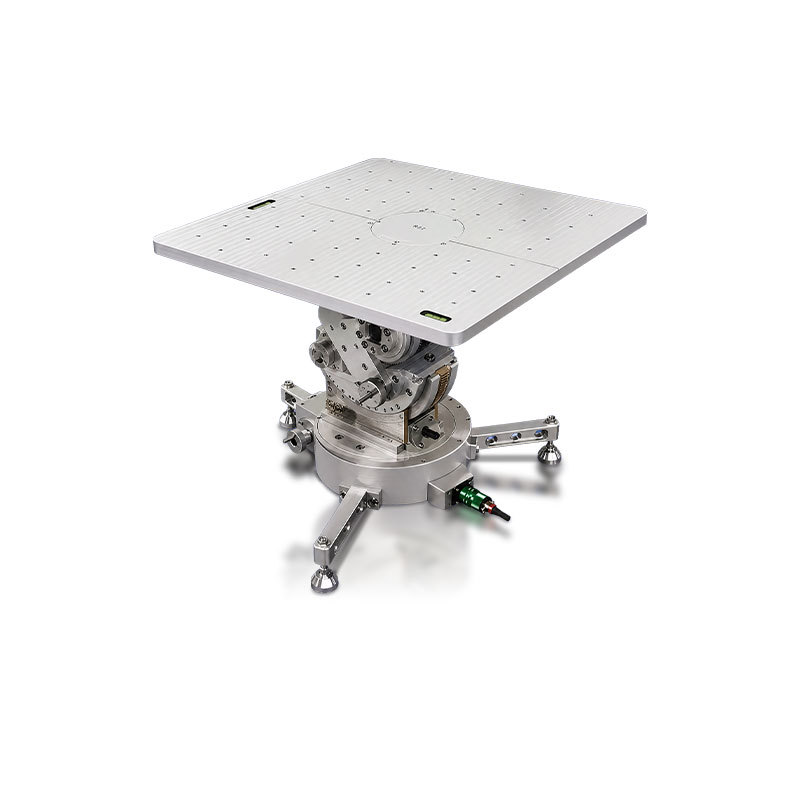

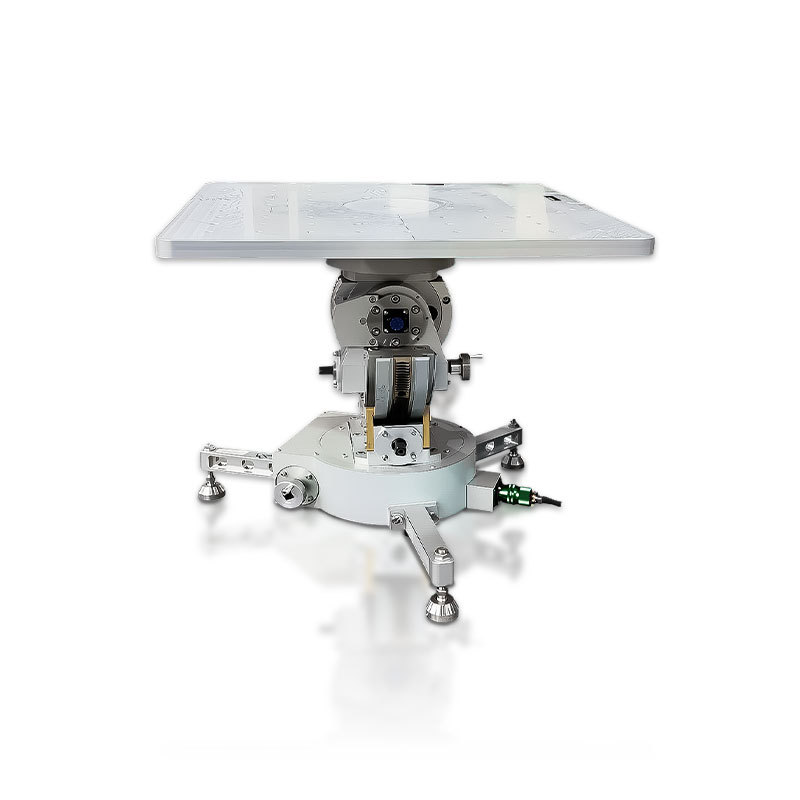

Motion Simulator for Inertial Navigation System Testing and Gyroscope Calibration Applications

No.BE-INS3-22A13

The Motion Simulator delivers plus minus 0.001 degree positioning accuracy and supports up to 50kg payload. Designed for inertial navigation system calibration and gyroscope testing, it ensures high reliability in aerospace and UAV applications. Constructed from 7A04 super duralumin, this rotary table offers exceptional stiffness for MEMS sensor verification and satellite payload calibration.

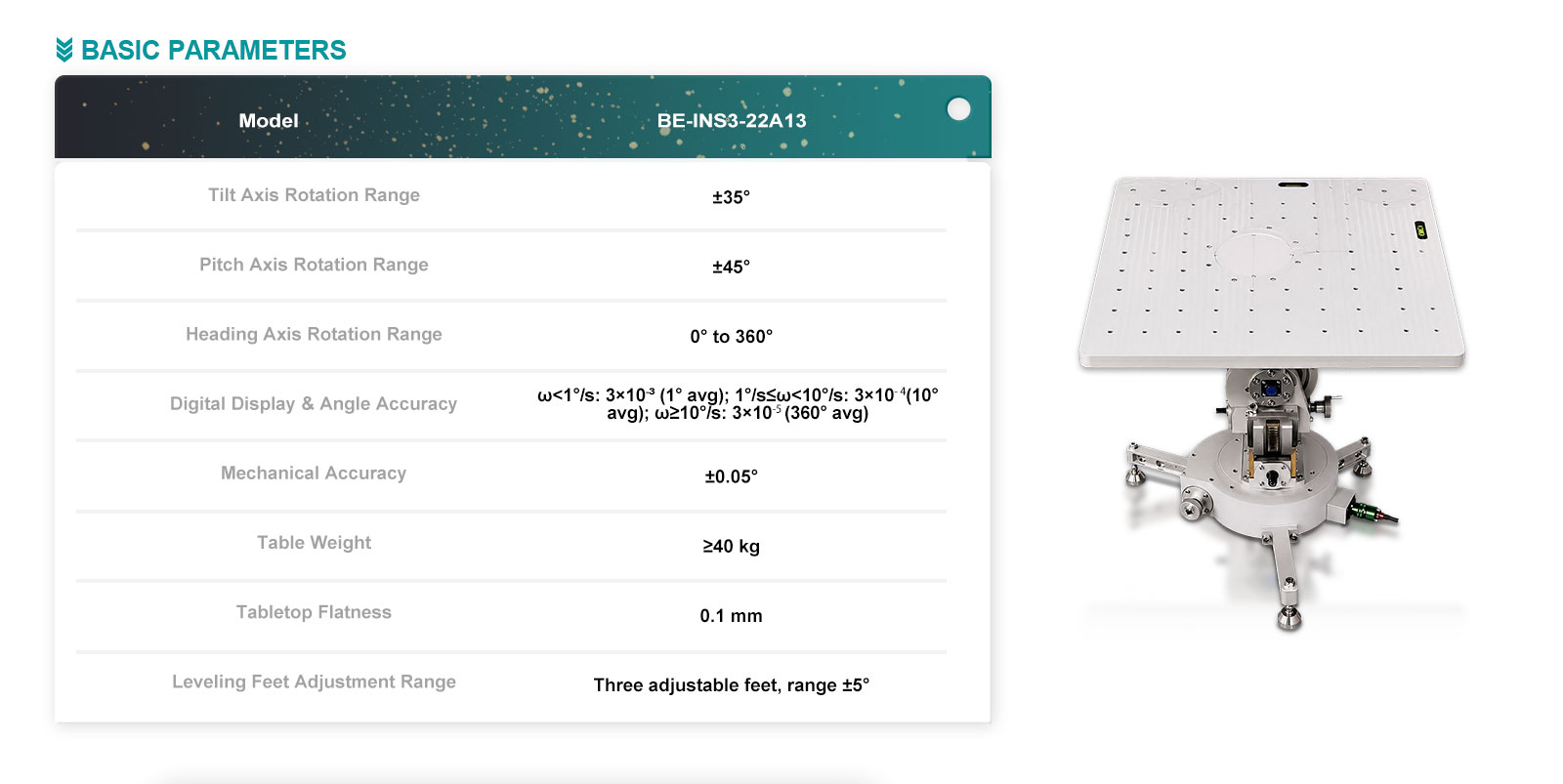

Specifications

Tilt Axis Rotation Range:

±35°

Pitch Axis Rotation Range:

±45°

Mechanical Accuracy:

±0.05°

Table Weight:

≥40 kg

Tabletop Flatness:

0.1 mm

GET A QUOTE

Download

View all downloads

Description

——Technical parameter——

Indicator name	Indicator parameters
Countertop material	7A04 superduralumin
Countertop dimensions	600mm x 500mm x 18mm
Maximum load weight	<60kg
3-axis rotation range	Heading ±180°, Tilt 60°, Pitch ±60°
3-axis angle accuracy	Heading axis ±6'; Tilt axis ±6'; Pitch axis ±6'
Countertop flatness	0.1mm
Foot of the turntable	Adjustable level with blisters installed on the table.
