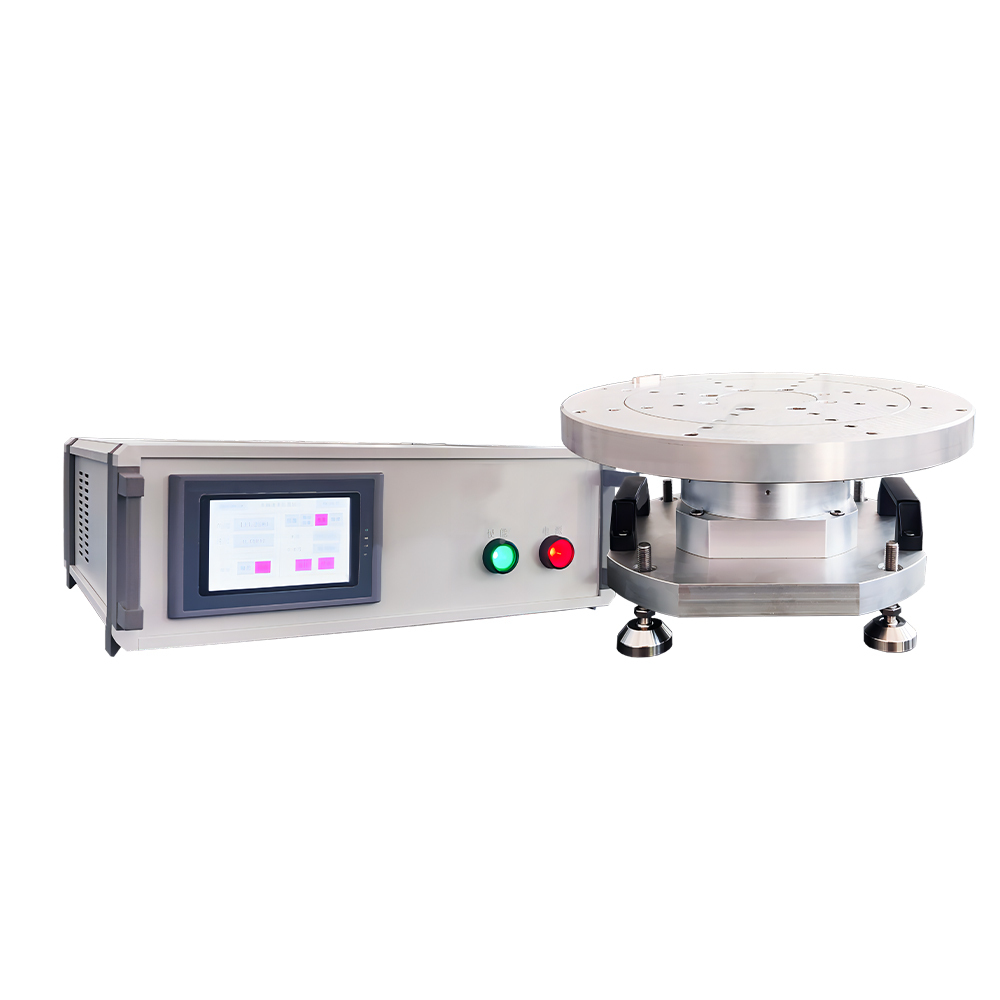

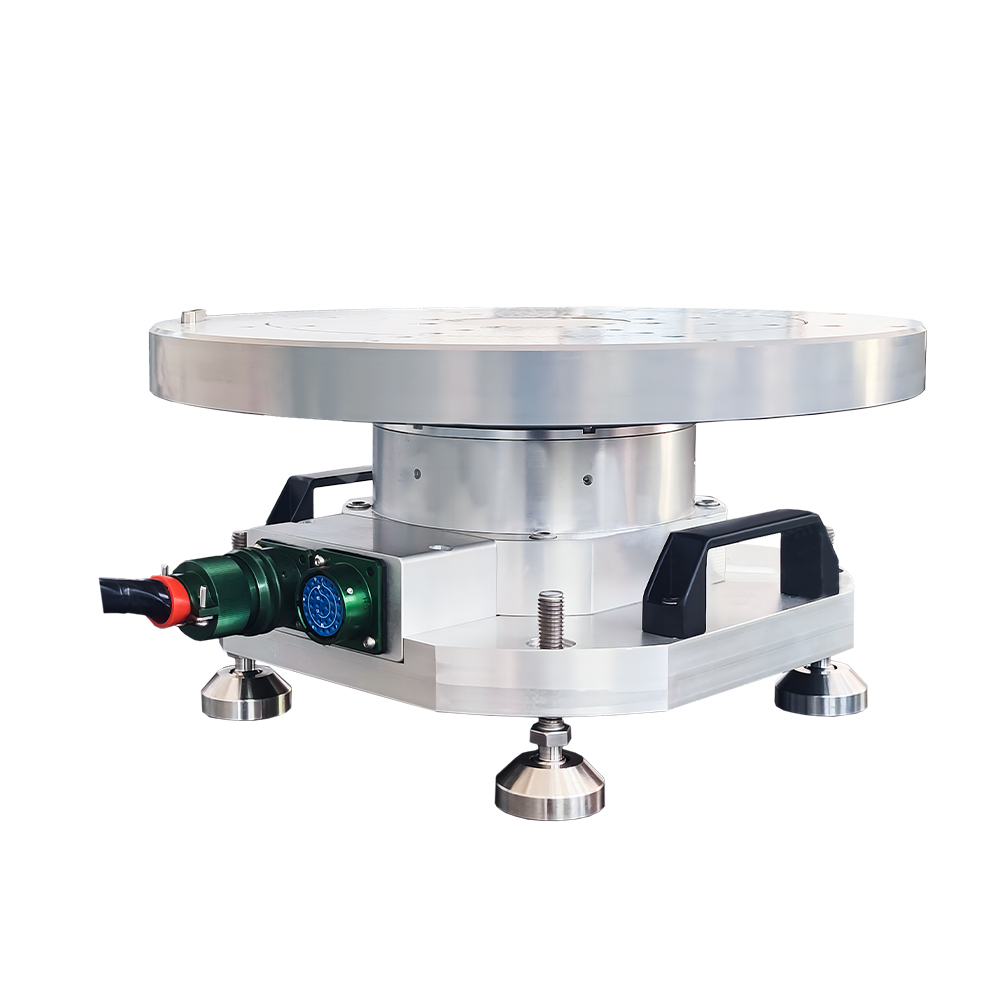

Precision Single Axis Table for INS Calibration and Swing Test

No.BE-INS-23C21

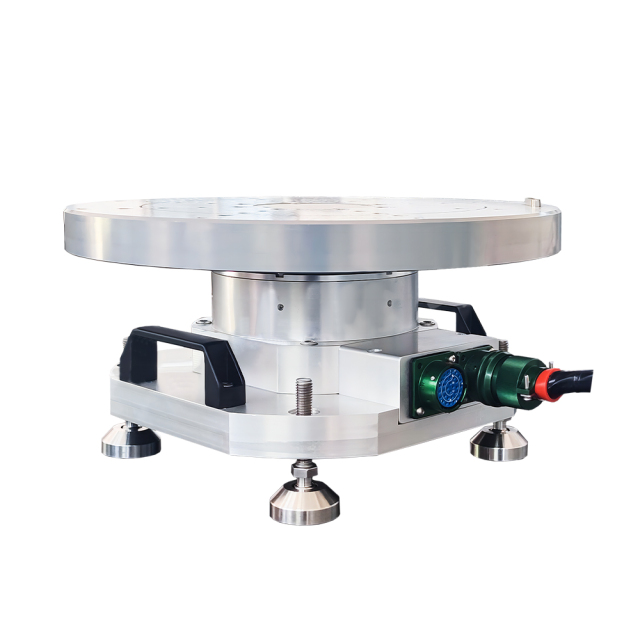

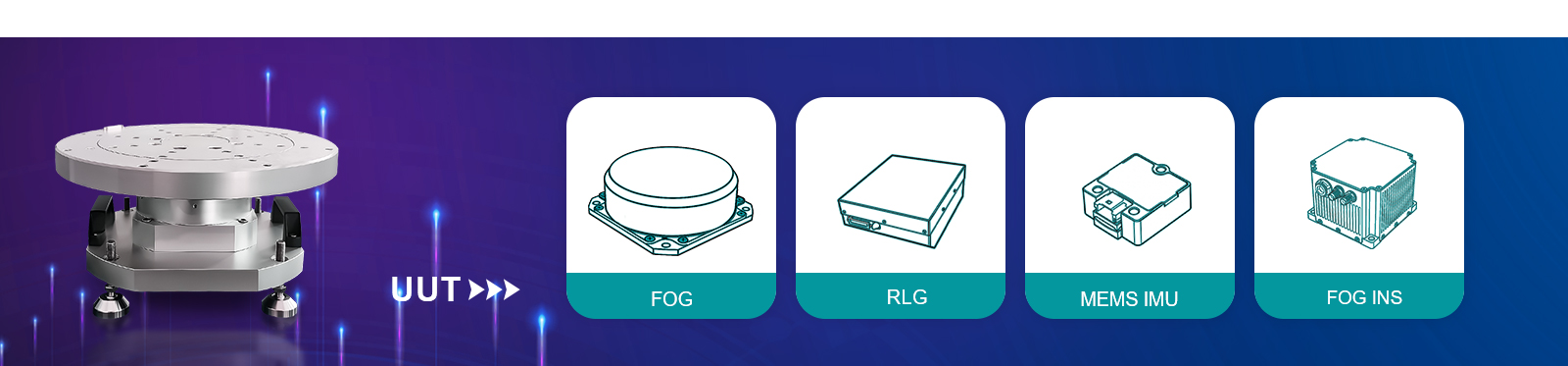

This precision single axis positioning table functions as rate table and gyro calibration fixture for INS calibration and swing simulation testing. ±5″ angular positioning accuracy with ±2″ repeatability and 0.36″ resolution ensures ultra-fine angle control for precision sensor characterization. Ideal for inertial navigation system calibration, MEMS sensor low-frequency characterization, and swing environment stability validation.

Specifications

Rated load weight:

10kg

Table size:

Φ320mm

Angular position positioning accuracy:

≤±5″

Rate range:

±0.001°/s～±3000°/s

GET A QUOTE

Download

View all downloads

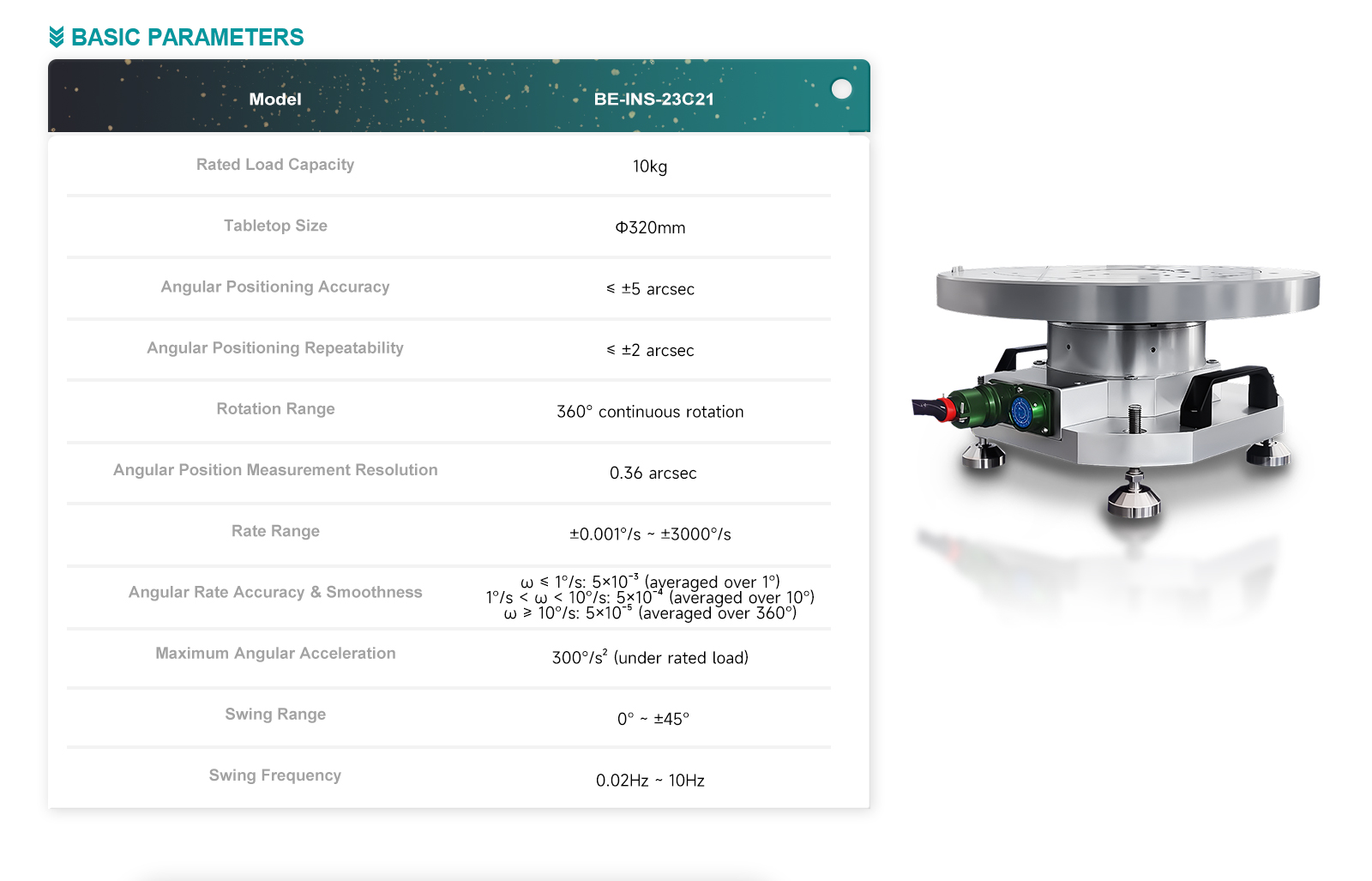

Technical parameter

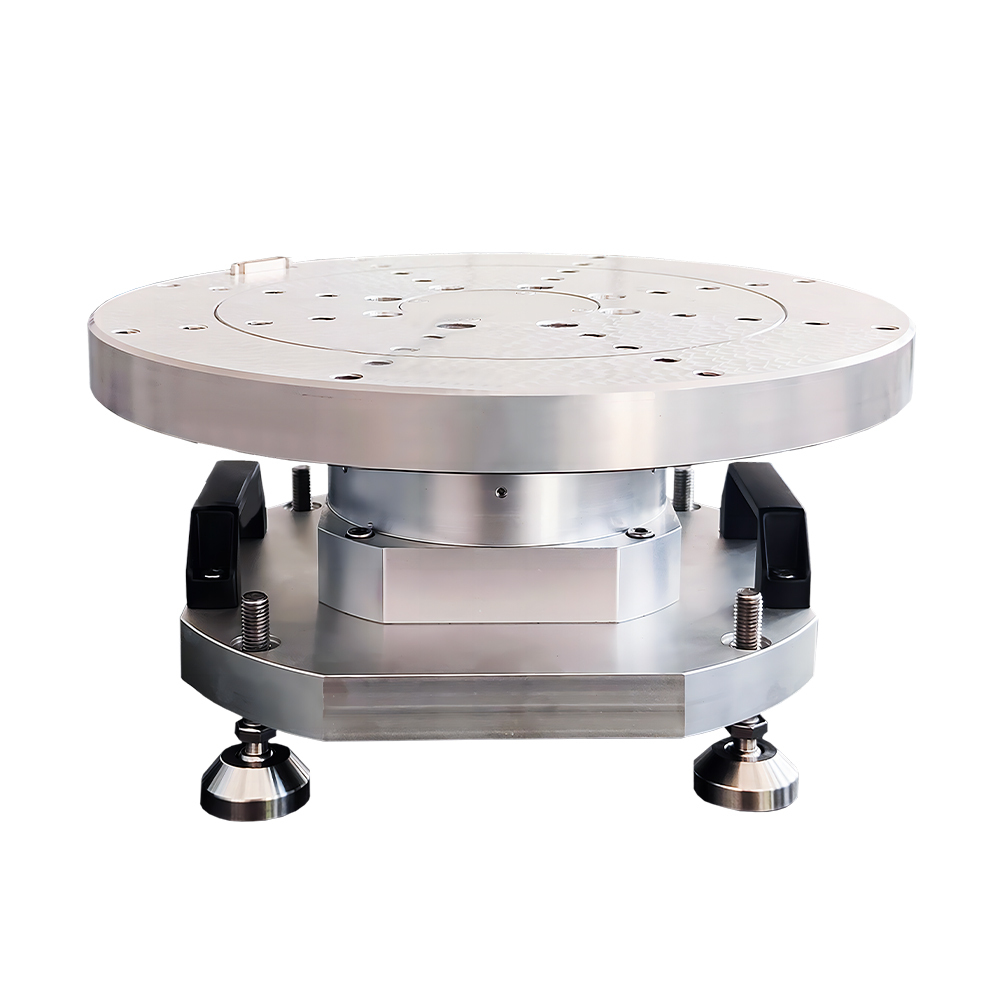

Rated load weight	10kg
Table size	Φ320mm
Angular position positioning accuracy	≤±5″
Angular position positioning repeatability	≤±2″
Rotation angle range	360° continuous rotation

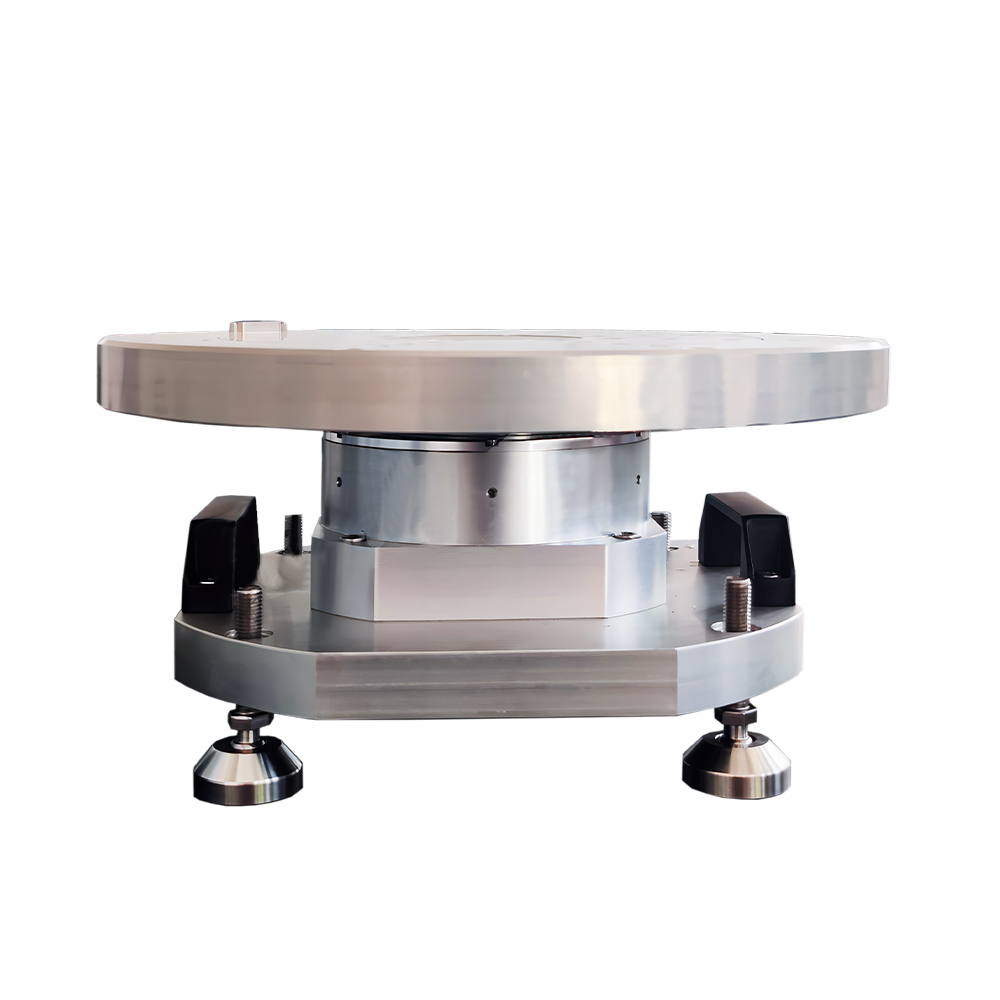

Angular position measurement resolution	0.36″
Rate range	±0.001°/s ~ ±3000°/s
Angular rate accuracy and stability	ω≤1°/s, 5×10⁻³ (1° average);
	1°/s < ω < 10°/s, 5×10⁻⁴ (10° average);
	10°/s≥ω, 5×10⁻⁵ (360° average)
Maximum angular acceleration	300°/s² (rated load)
Swing range	0° ~ ±45°
Swing frequency	0.02Hz ~ 10Hz
