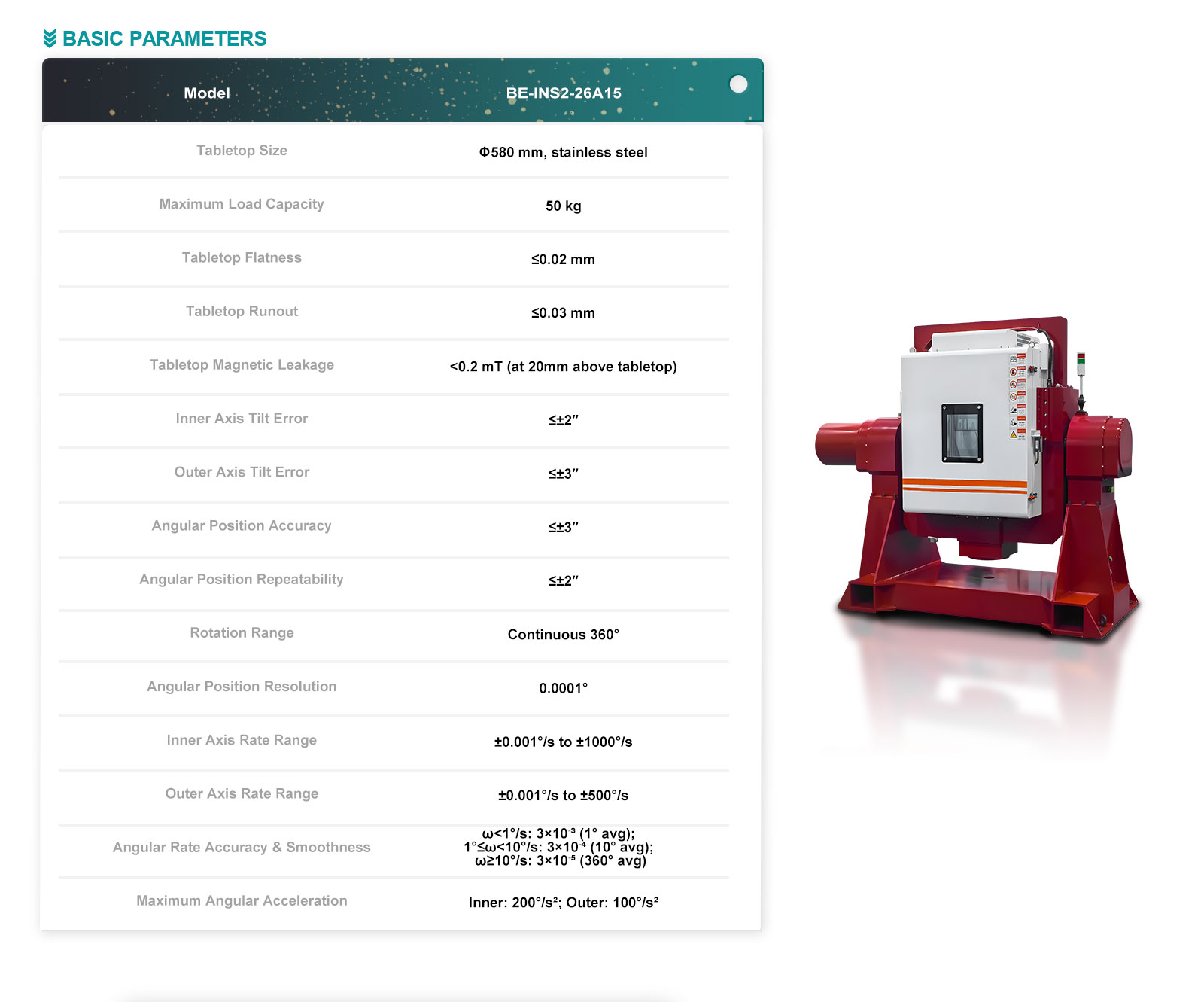

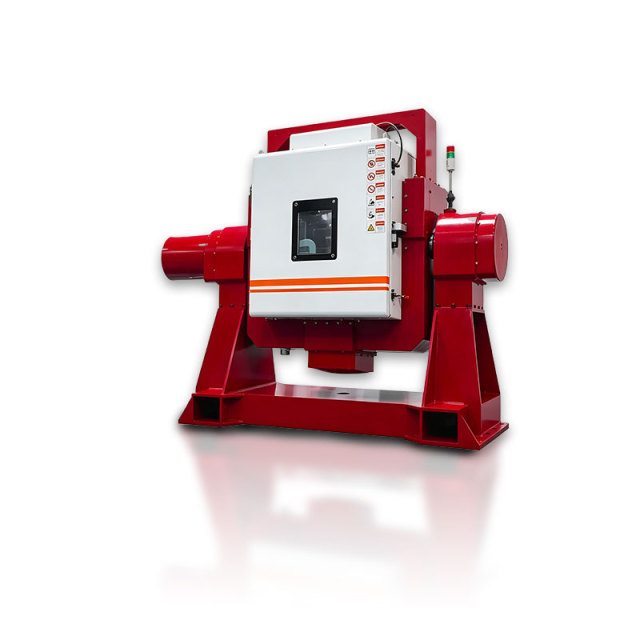

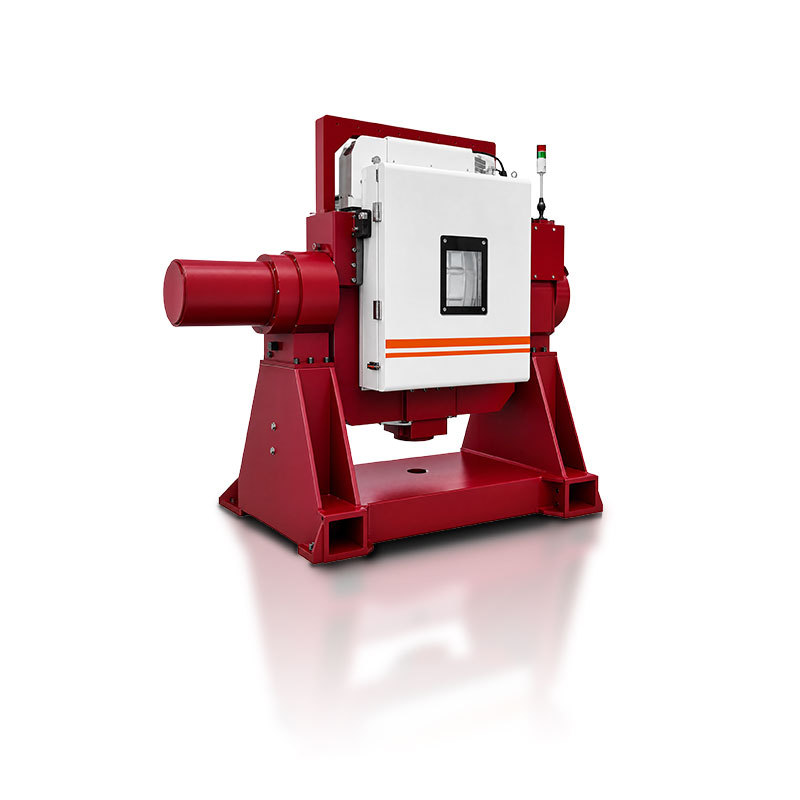

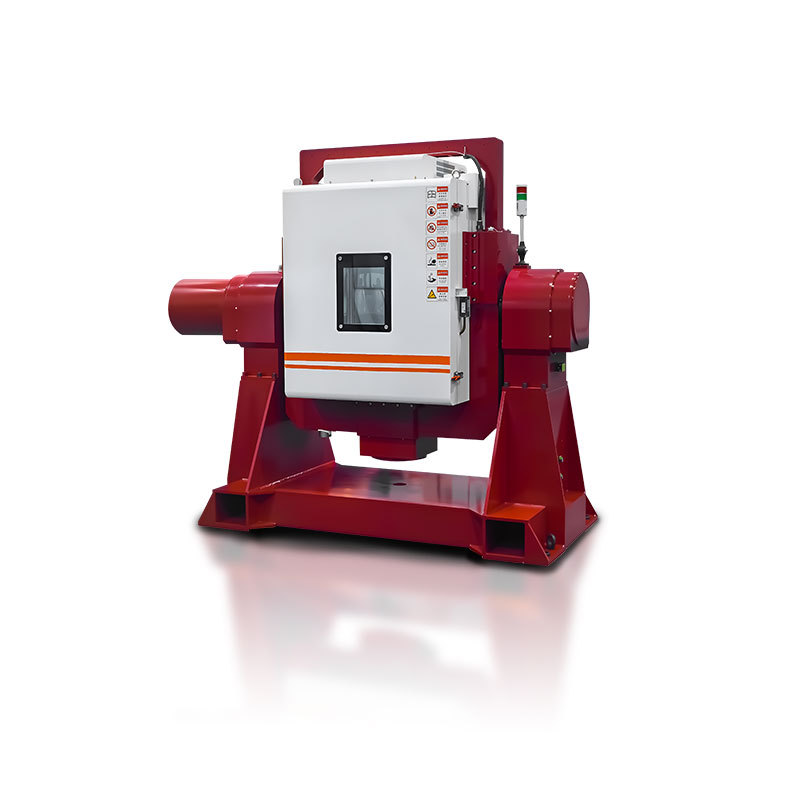

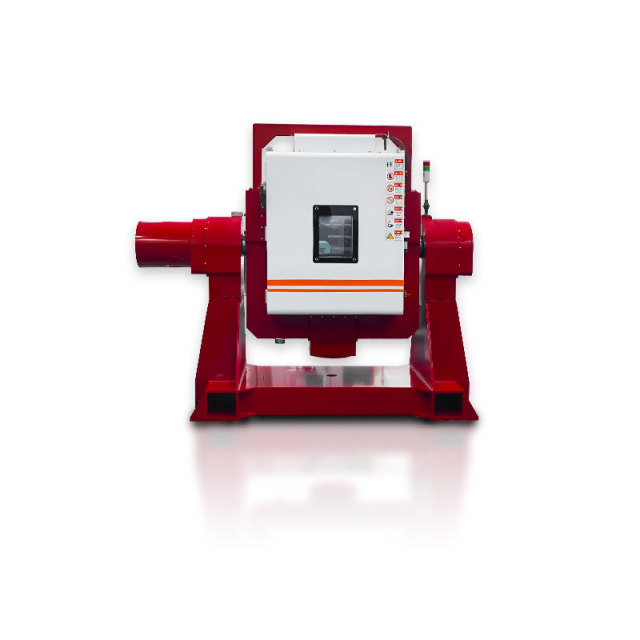

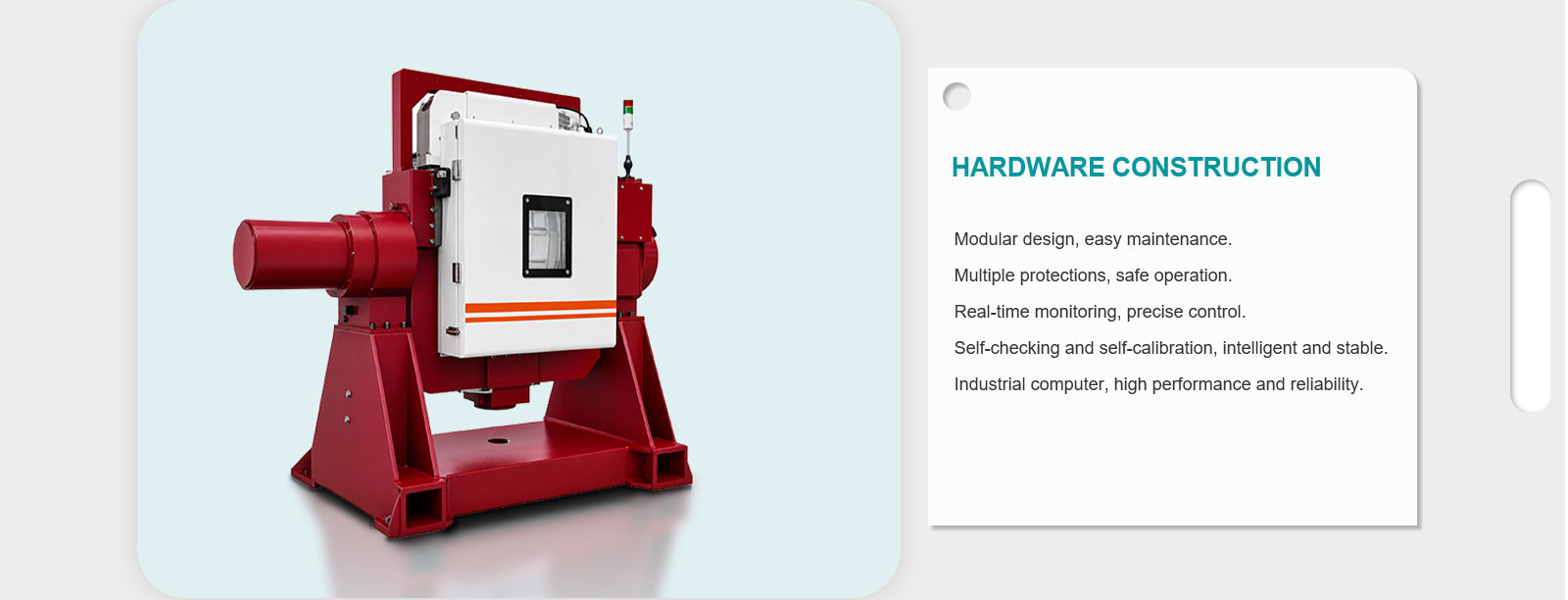

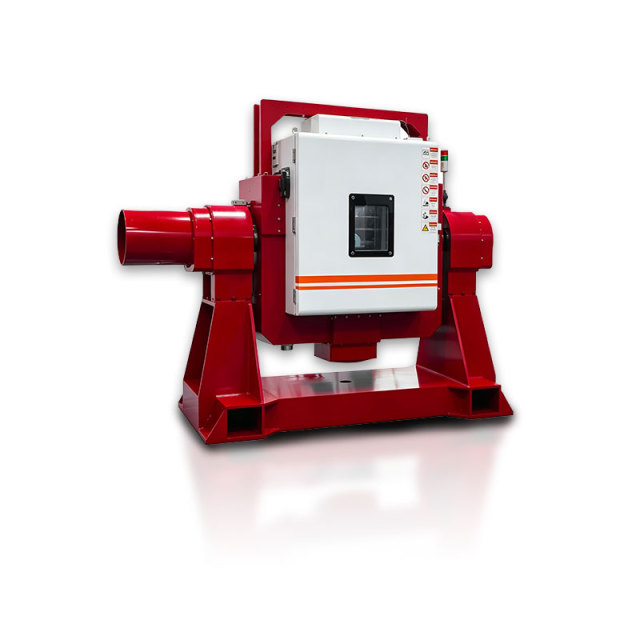

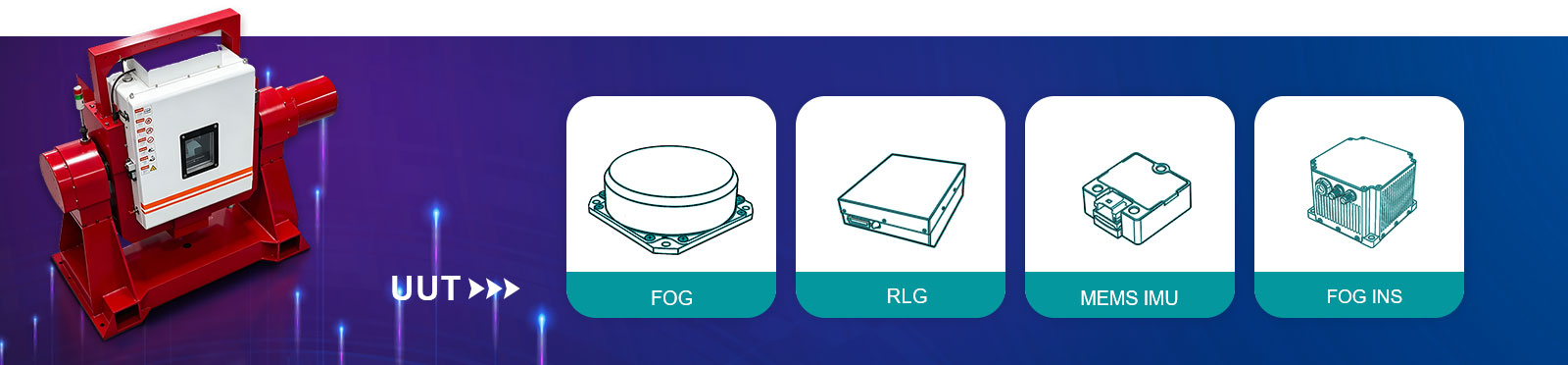

| Technical Specifications | |
| Indicator Name | Indicator Parameters |
| Mechanical & Core Structural Parameters | |
| Maximum Load Weight | 50kg |

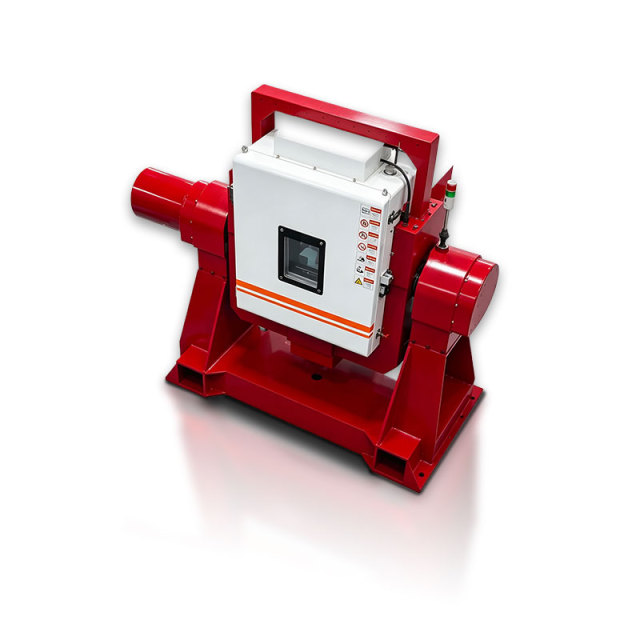

| Table Size | Φ580mm |
| Tabletop Material | Stainless steel |
| Tabletop Flatness | 0.02mm |
| Tabletop End Runout | 0.03mm |
| Tabletop Magnetic Leakage | 0.2mT |
| Dual-axis Perpendicularity | ±5" |
| Dual-axis Intersection Accuracy | Φ0.25mm ball inside |

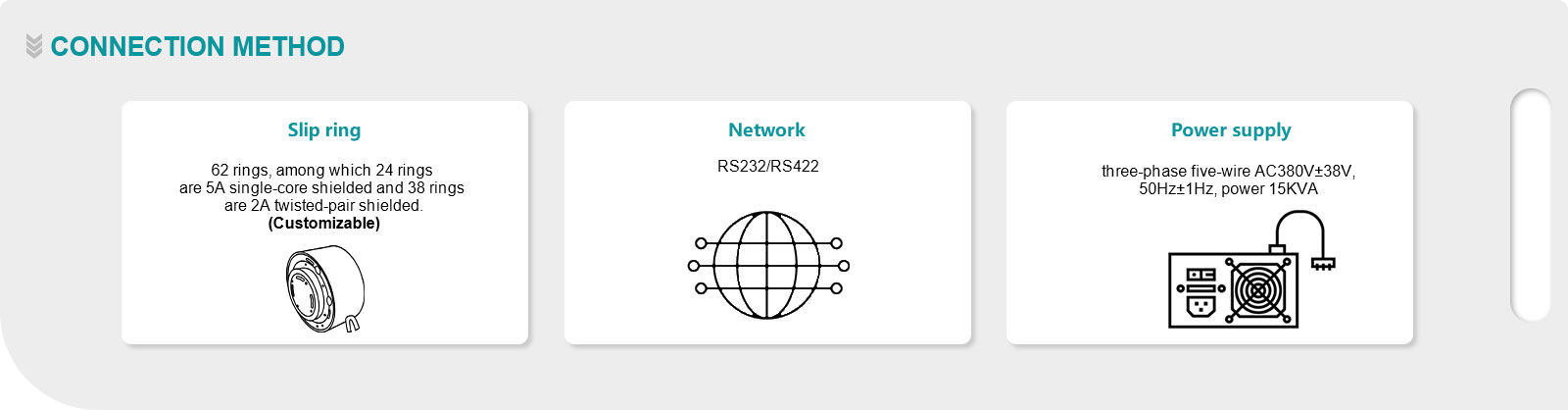

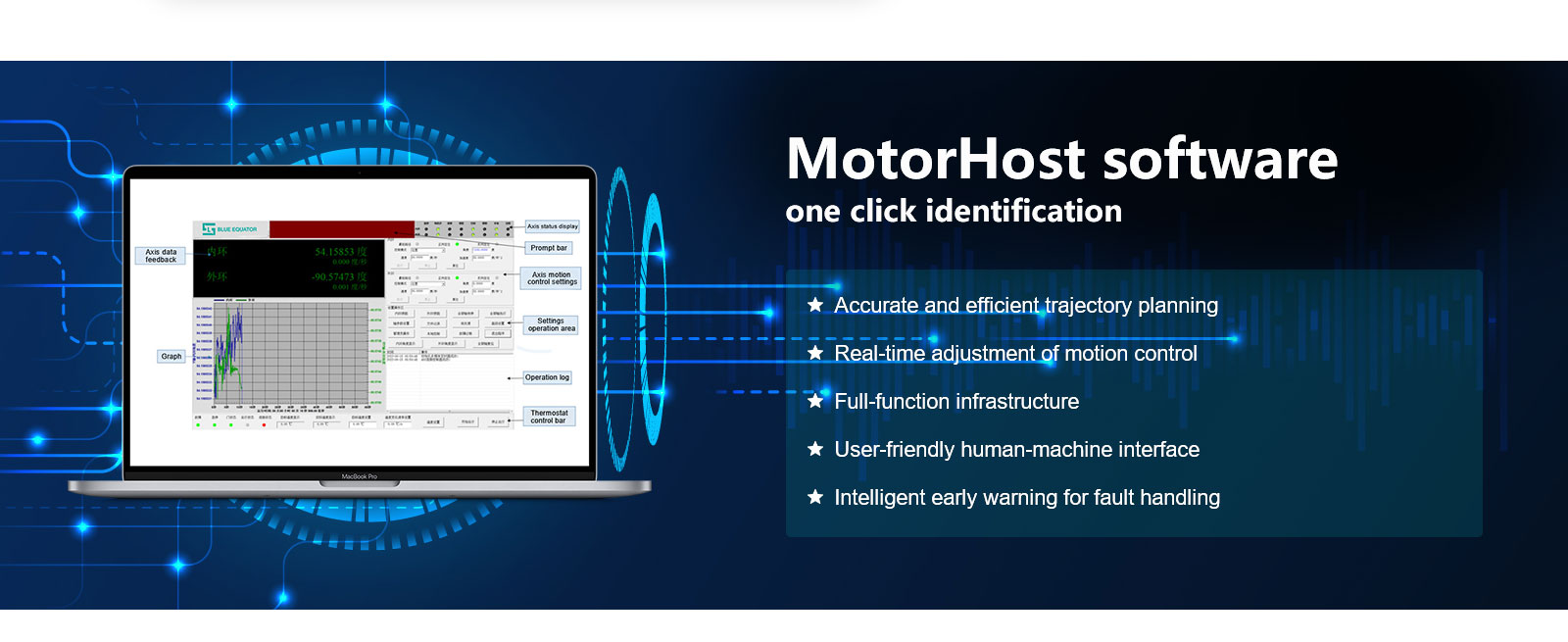

| Conductive Slip Ring | 60~120 rings (rated current ≥3A) |
| Communication Interface | RS232/RS422 |
| Rotation Range | 360° continuous rotation |
| Motion Performance Parameters | |
| Rate Resolution | 0.001°/s |
| Angular Rate Accuracy & Smoothness | ω<1°/s: 3×10^-3 (1° average) 1°/s≤ω<10°/s: 3×10^-4 (10° average) ω≥10°/s: 3×10^-5 (360° average) |
| Inner Frame (Inner Gimbal) Motion Performance | |
| Shaft System Rotation Accuracy | ±2" |
| Angular Position Measurement Resolution | 0.36" |
| Angular Position Positioning Accuracy | ±5" |
| Angular Positioning Repeatability | ±3" |
| Speed Range | ±0.001°/s ~ ±500°/s |
| Maximum Angular Acceleration | 300°/s² (rated load) |
| Outer Frame (Outer Gimbal) Motion Performance | |
| Shaft System Rotation Accuracy | ±5" |
| Angular Position Measurement Resolution | 0.36" |
| Angular Position Positioning Accuracy | ±5" |
| Angular Positioning Repeatability | ±3" |
| Speed Range | ±0.001°/s ~ ±200°/s |
| Maximum Angular Acceleration | 100°/s² (rated load) |
| Temperature Control Chamber System Parameters (Customizable on Demand) | |
| Product Name | High and low temperature test chamber |
| Nominal Volume (Optional) | 125L~275L |
| Test Chamber Inner Size (W×D×H, Optional) | 500×500×~650×650×650mm |
| Test Chamber Outer Dimension (W×D×H, Optional) | Approx. 740×950×950mm ~ 880×1100×1100mm |
| Temperature Range | -55℃ ~ +120℃ |
| Temperature Control Range | -55℃ ~ +120℃ |
| Temperature Fluctuation (Optional) | <±0.5℃ ~ ±1℃ |
| Temperature Uniformity | <1.0℃ |
| Temperature Deviation | <±2.0℃ |
| Cooling Rate | >2°C/min |
| Heating Rate | >3°C/min |
| Total Installed Power | Approx. 13KW |
| Whole Machine Weight (Chamber + Unit) | Approx. 210kg ~ 260kg (subject to final size confirmation) |
| Cooling Method | Air cooling |
| Refrigeration Method | Mechanical cooling by cascade system |
| Refrigerant | Environmentally friendly high-efficiency refrigerants (R404a and R23) |
| Liner Material | SUS304 |
| Refrigeration Compressor | Two advanced compressors |
| Heating System | Nichrome electric heater with PID adjustment |
| Regulation Mode | PID Balance |
| Temperature & Humidity Control Mode | BTHC |
| Control System | Programmable controller + touch screen |
| Remote Control Function | RS485 interface for computer communication and remote monitoring; with USB interface |
| Test Port | One Φ25mm test hole |
| Ambient Requirements | Ambient temperature: 0℃~+30℃; Relative humidity: ≤85%RH; No strong vibration, electromagnetic radiation shielding, no dust and corrosive substances around |
| Power Supply System | 380±10% VAC, 50Hz+N+G; Ground resistance: <4Ω |
| Safety Protection Measures | Independent ultra-high/ultra-low temperature alarm; Airduct overheating alarm; Refrigeration compressor overpressure/overload alarm; Power supply phase loss/phase sequence alarm; Leakage and short circuit protection |
