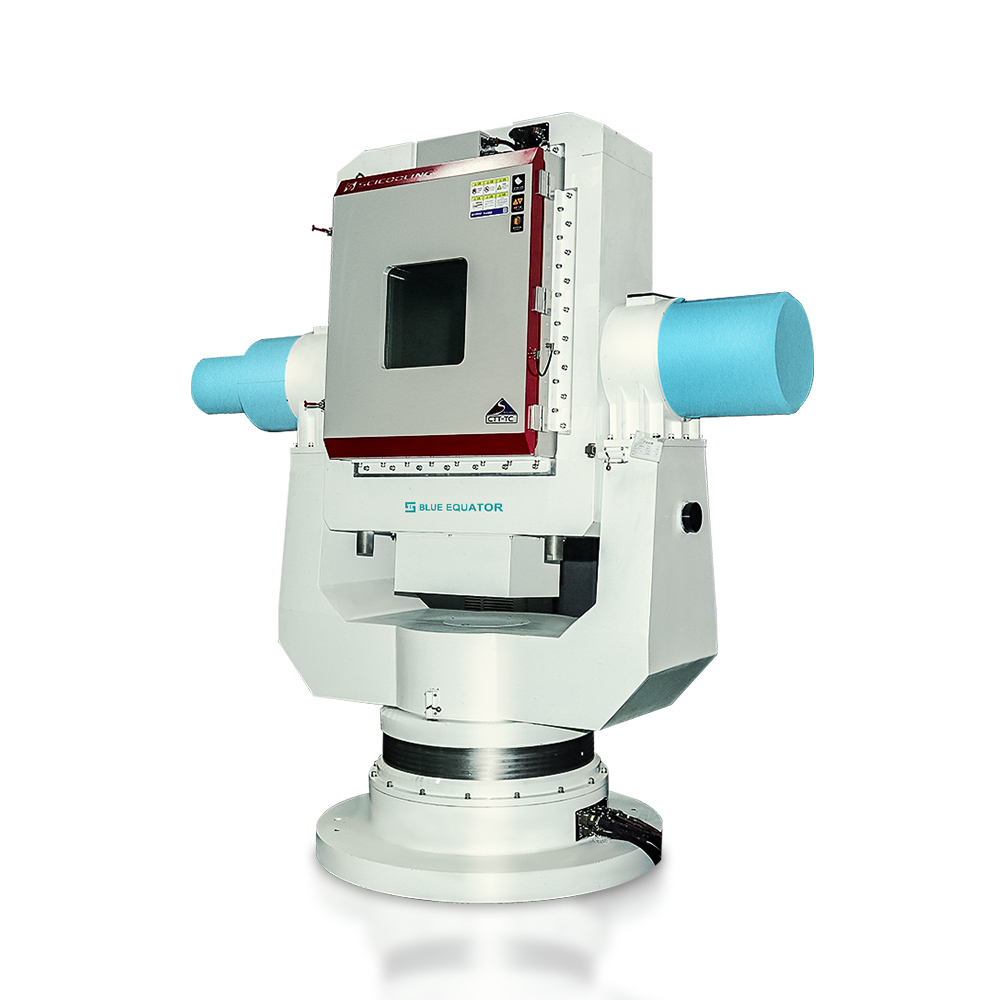

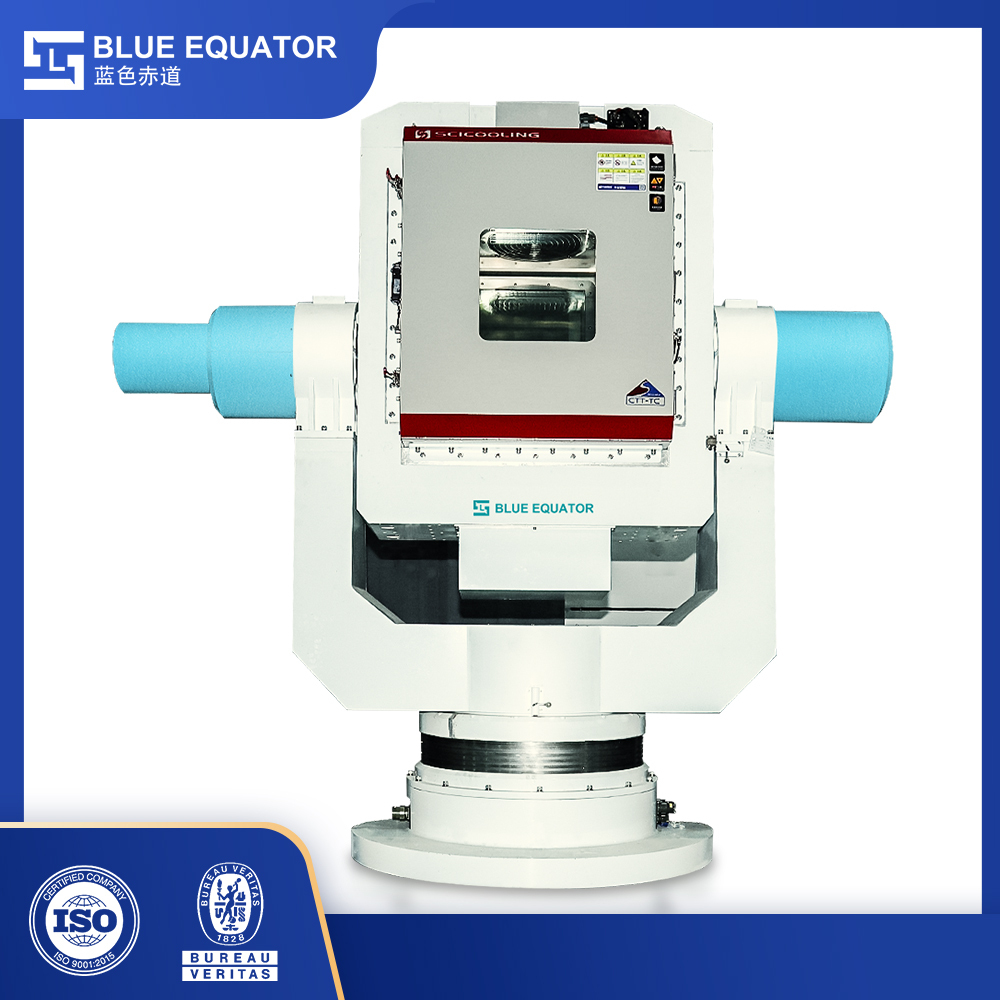

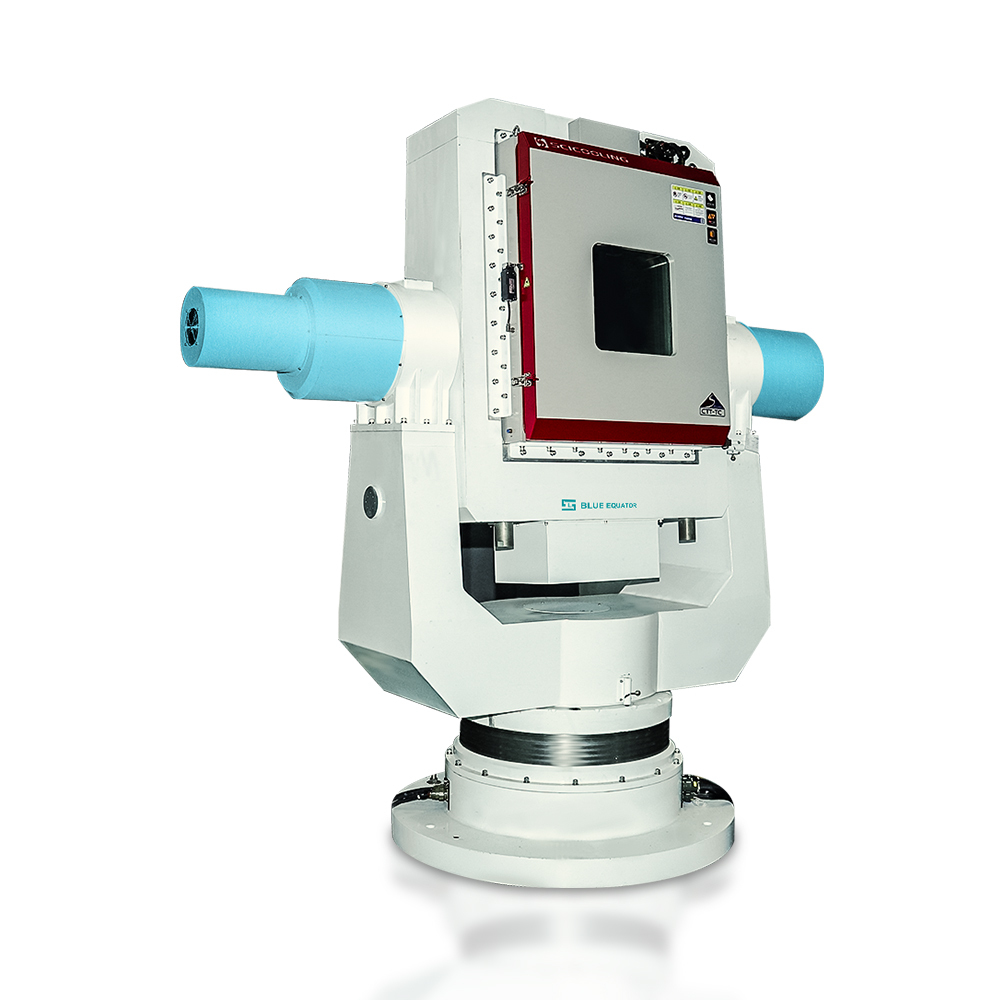

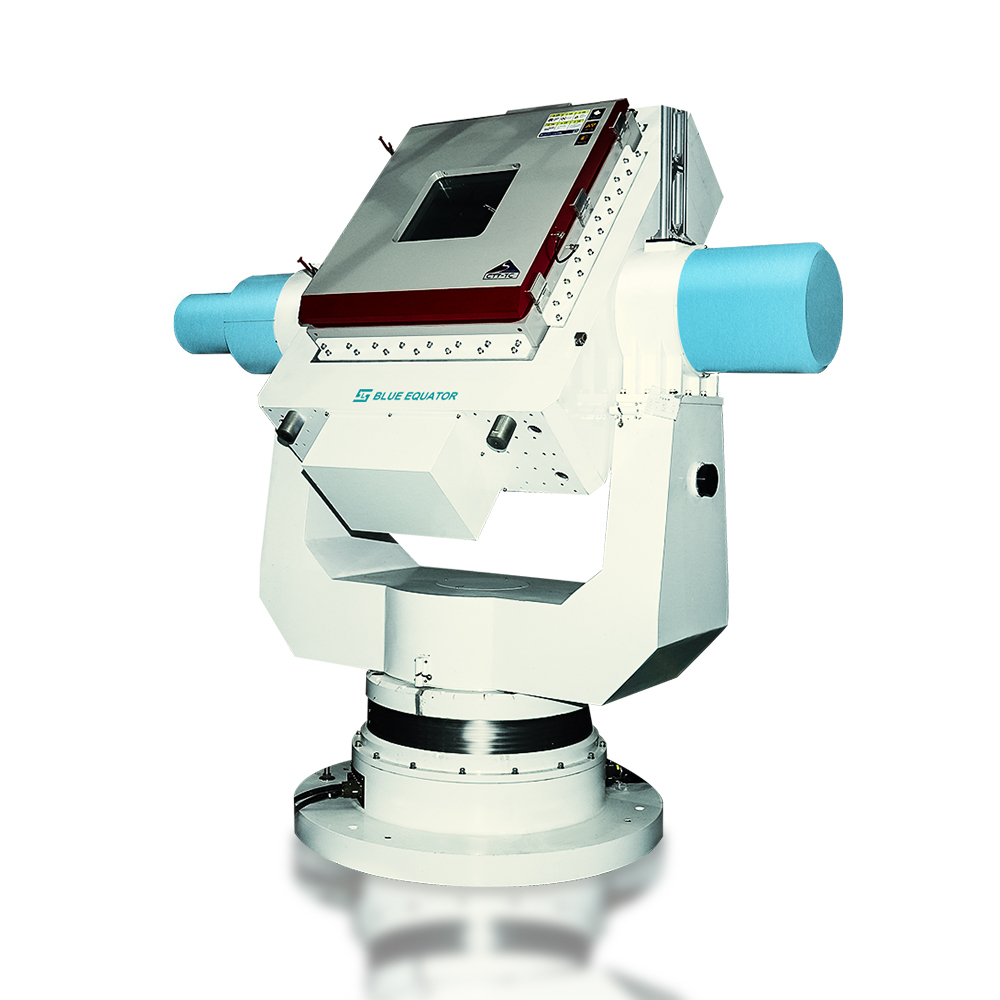

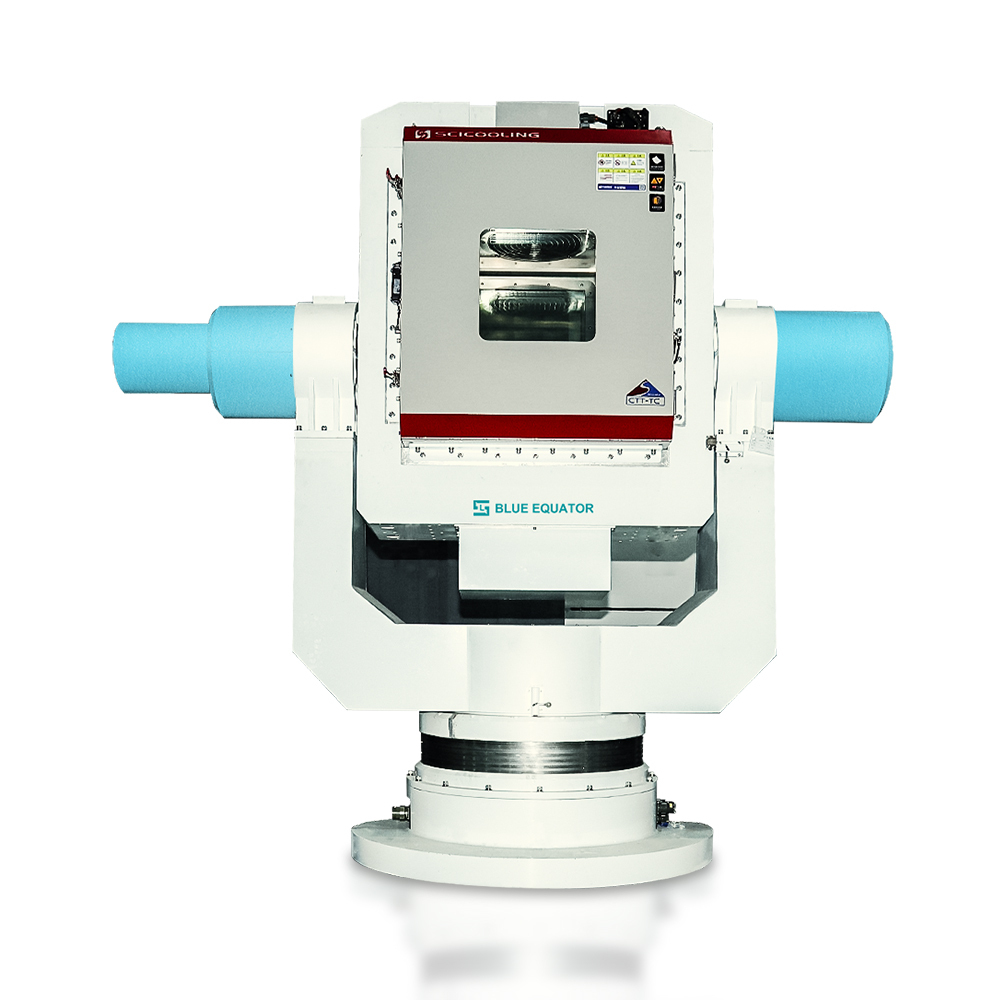

Motion Simulation Rate Table for MEMS sensors and inertial navigation system calibration in aviation and automotive fields

No.HY-INS3-550CB

The Motion Simulation Rate Table is a versatile rotary test stand engineered for gyroscope and INS calibration. It offers 0.0001 resolution, and multi-axis control for precise evaluation. Suitable for automotive ADAS development, aviation sensor validation, and industrial R&D, it ensures consistent results for fiber optic gyros, MEMS devices, and inertial navigation platforms across marine and offshore applications.

Specifications

Load weight:

60KG

Accuracy:

≤±3 arc sec

Range:

±0.001～500deg/sec

Acceleration(with load):

500 deg/sec2

Temperature range:

≥〔-50℃～+70℃〕

GET A QUOTE

Download

View all downloads

Unit Under Test (UUT)
Load weight	60KG
Load height less than	500mm
Load table size	Φ550mm

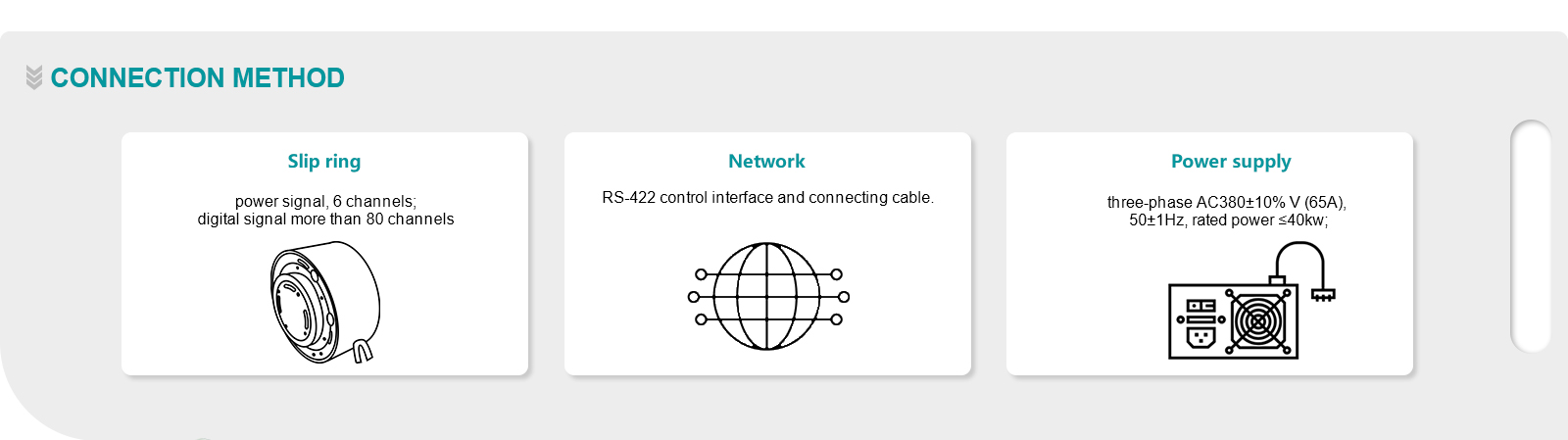

Slip rings to UUT	Signal 80 ways, 3A @ 380VAC/50Hz, 40KW(Max)
	Power 6 ways@220V/10A

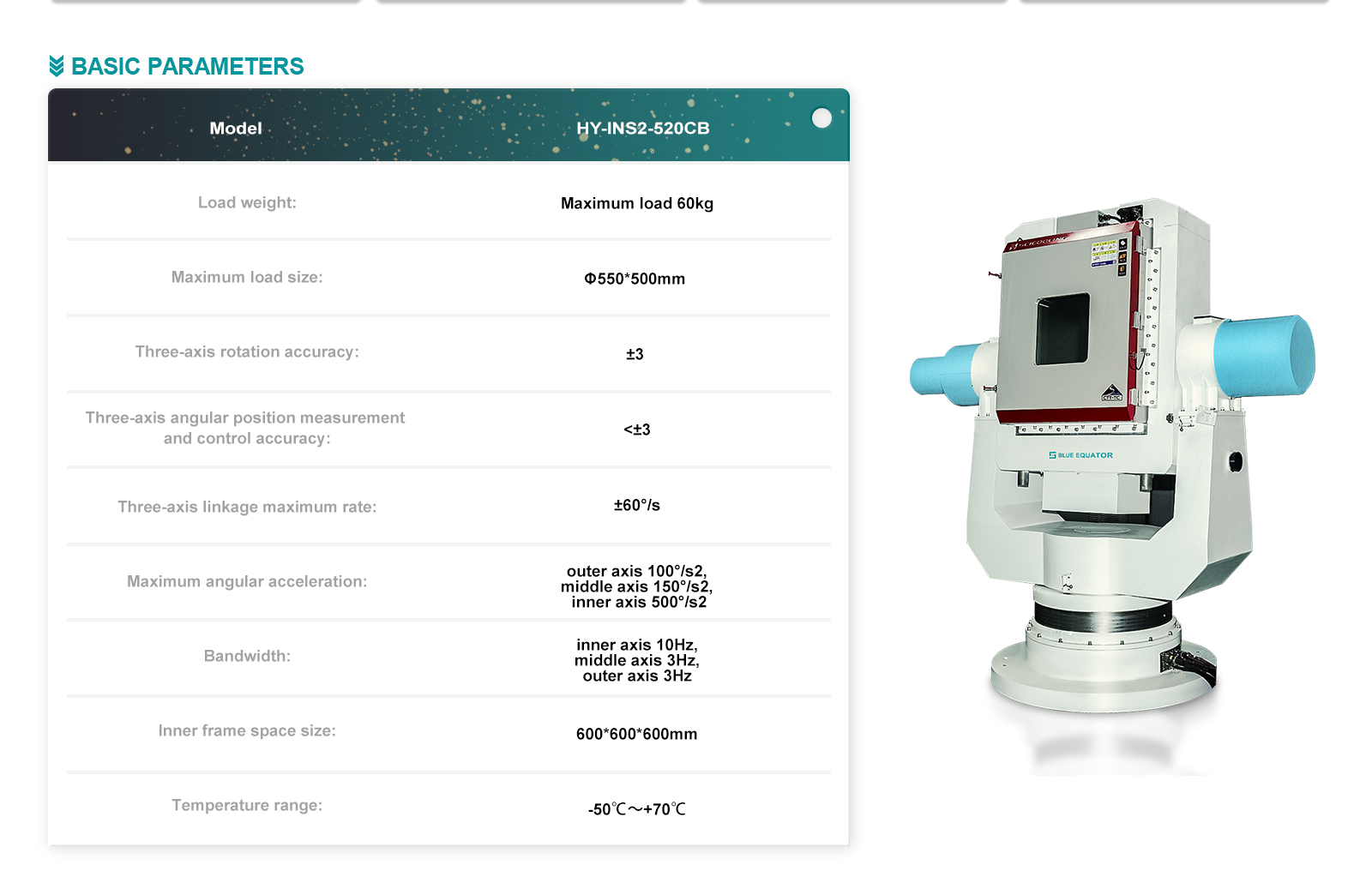

Specifications
	Inner Axis	Middle Axis	Outer Axis
Angular freedom	continuous	continuous	continuous
Position
Accuracy	≤±3 arc sec	≤±3 arc sec	≤±3 arc sec
Resolution	0.36 arc sec	0.36 arc sec	0.36 arc sec
Repeatability	<2 arc sec	<2 arc sec	<2 arc sec
Rate
Range	±0.001～500deg/sec	±0.001～200deg/sec	±0.001～100deg/sec
Maximum speed of three-axis linkage	±60deg/sec
Resolution	0.0001 deg/sec
Accuracy and stability	When θ＜1 deg/sec	≤1×10-3 (1 deg average)
	When 1 deg/sec＜θ＜10 deg/sec	≤1×10-4 (10 deg average);
	When θ≥10 deg/sec	≤1×10-5 (360 deg average)
Dynamic
Acceleration(with load)	500 deg/sec2	150 deg/sec2	100 deg/sec2
Mechanical
Wobble	±3 arc sec	±3 arc sec
Orthogonality	±3 arc sec	±3 arc sec
Swing Range	0°～±45 deg	0°～±45 deg	0°～±45 deg
Swing frequency	0.2deg/10Hz	0.2deg/3Hz	0.2deg/3Hz

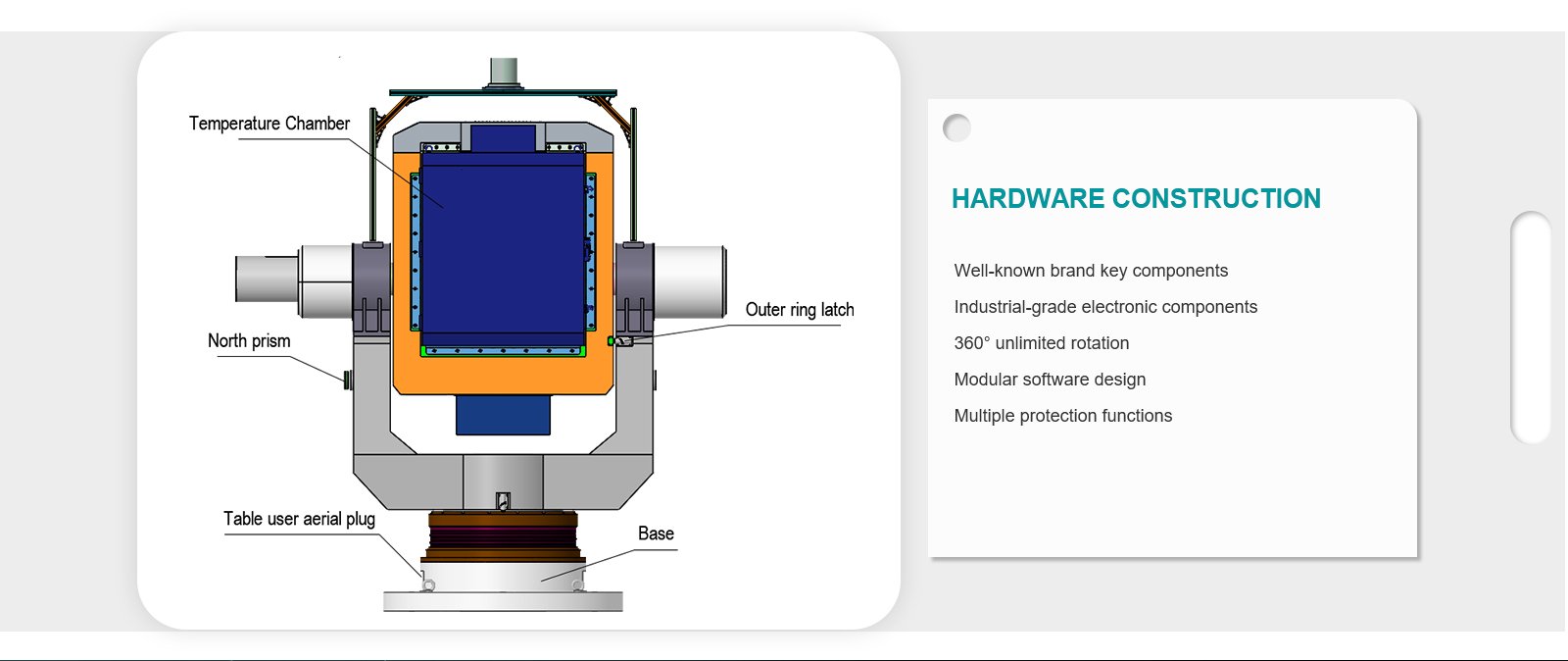

Temperature Chamber (TC)
Working volume	600600600mm
Temperature range	≥〔-50℃～+70℃〕
Temperature stability	≤±1℃
Temperature deviation:	≤±1℃
Temperature change rate	≥2℃/min
Temperature gradient:	≤2℃
Dimensions
Machine platform dimensions	275010503110mm
Total weight	3000Kg
