| Technical Parameters | |

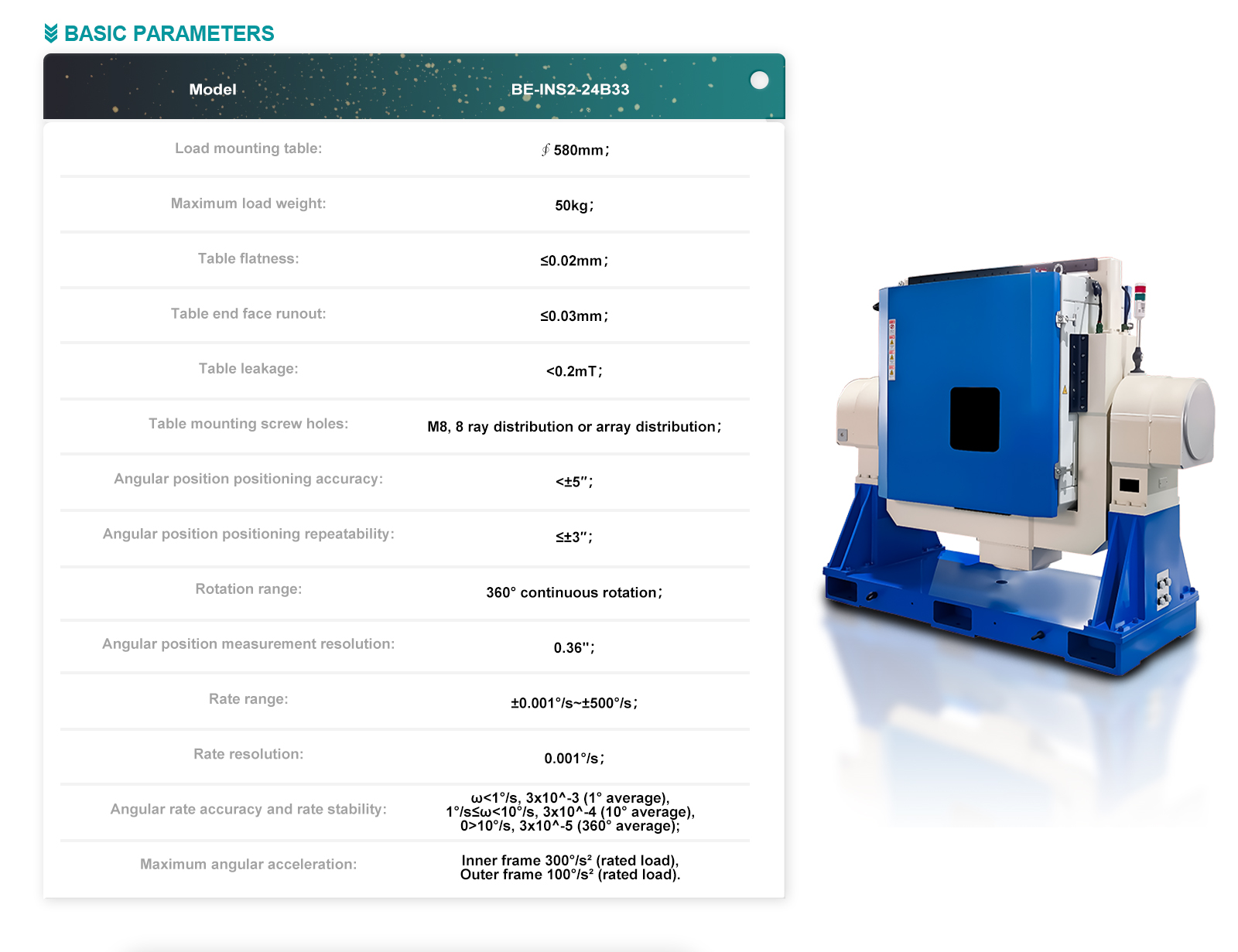

| Equipment Specifications Table | |
| Parameter | Value |

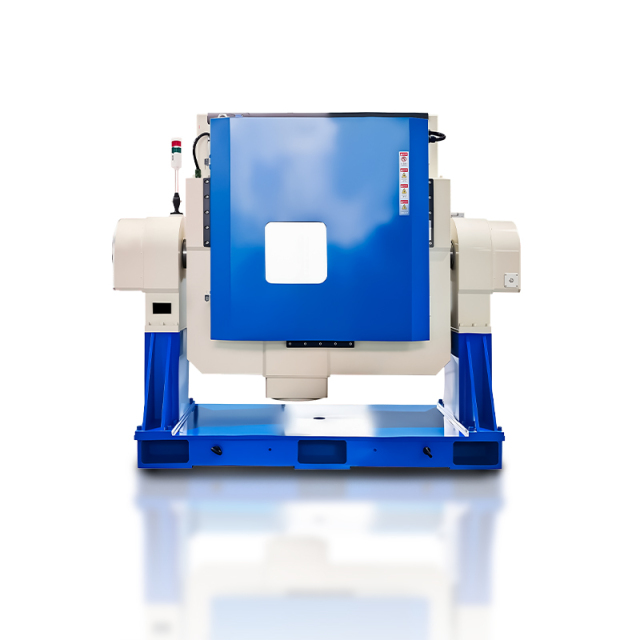

| Load mounting table | ϕ580 mm |
| Maximum load weight | 50 kg |
| Table flatness | ≤ 0.02 mm |
| Table end face runout | ≤ 0.03 mm |
| Table leakage | < 0.2 mT |
| Table mounting screw holes | M8, 8 ray distribution or array distribution |
| Angular position positioning accuracy | < ±5″ |
| Angular position positioning repeatability | ≤ ±3″ |
| Rotation range | 360° continuous rotation |
| Angular position measurement resolution | 0.36″ |
| Rate range | ±0.001°/s ∼ ±500°/s |
| Rate resolution | 0.001°/s |
| Angular rate accuracy and rate stability | ω < 1°/s, 3×10-3 (1° average); |
| 1°/s ≤ ω < 10°/s, 3×10-4 (1° average); | |
| ω ≥ 10°/s, 3×10-5 (360° average); | |
| Maximum angular acceleration | Inner frame 300°/s² (rated load); |
| Outer frame 100°/s² (rated load). | |
