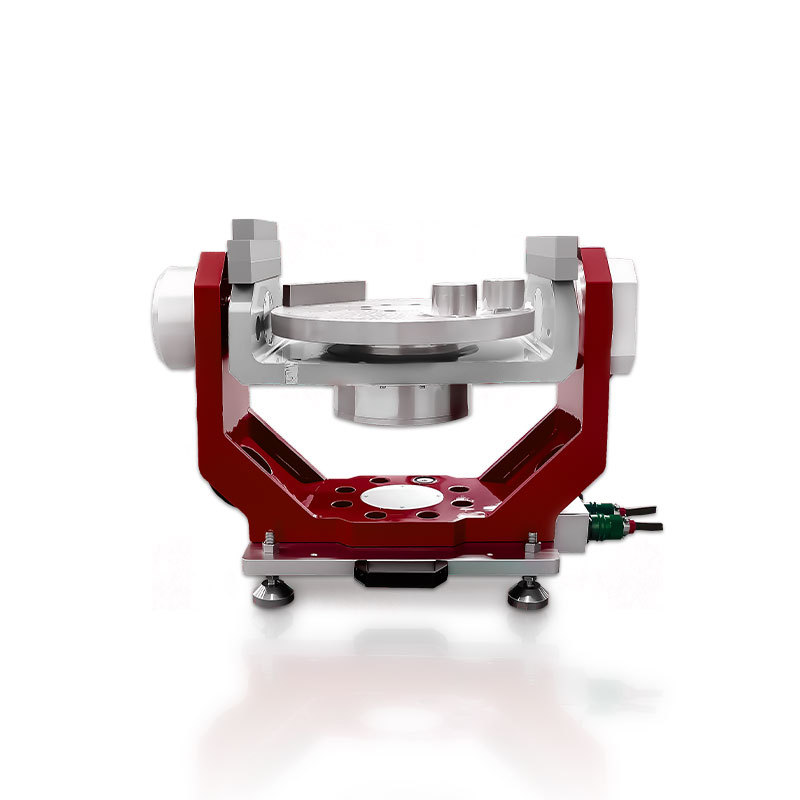

  • Precision dual axis rate table for lab research and industrial sensor calibration on bench

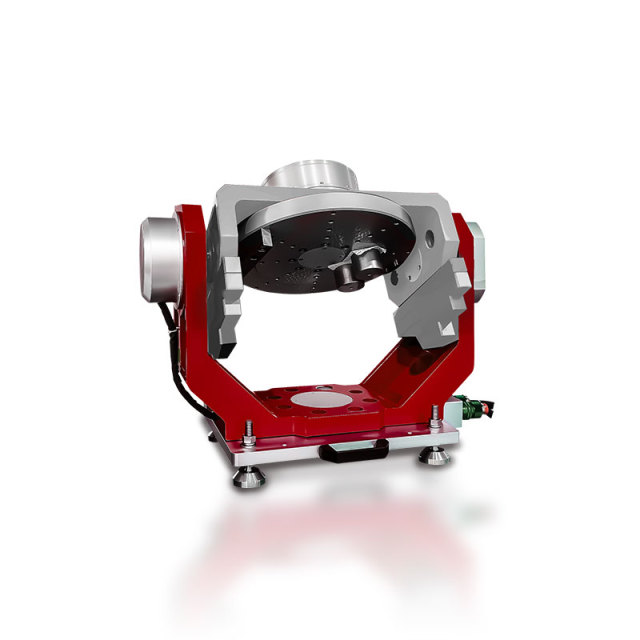

  • Motion calibration stand with superduralumin platform and 32-ring slip ring assembly
  • Close up of high precision drive system for ±15 arcsec accuracy and ±5 arcsec repeatability
  • Rate table performing low speed drift test for MEMS gyroscope characterization
  • Test equipment dimensions with 10kg capacity on research laboratory workbench

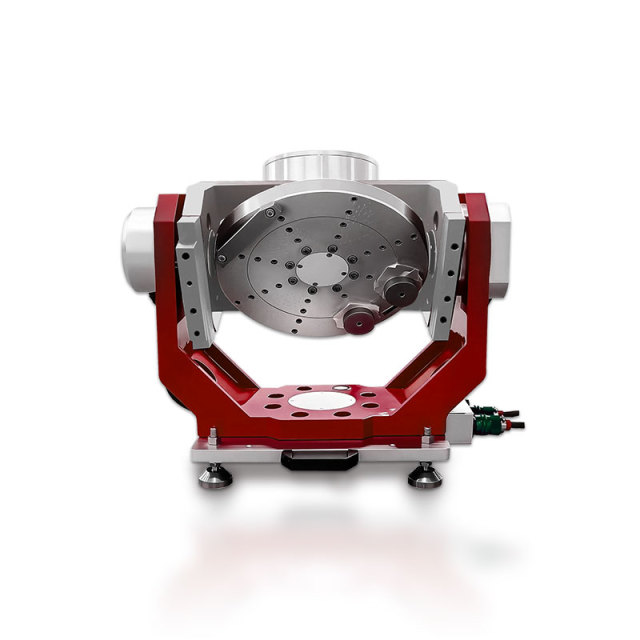

  • RS232 remote control interface executing automated calibration sequence for industrial sensor
  • Precision dual axis rate table for lab research and industrial sensor calibration on bench

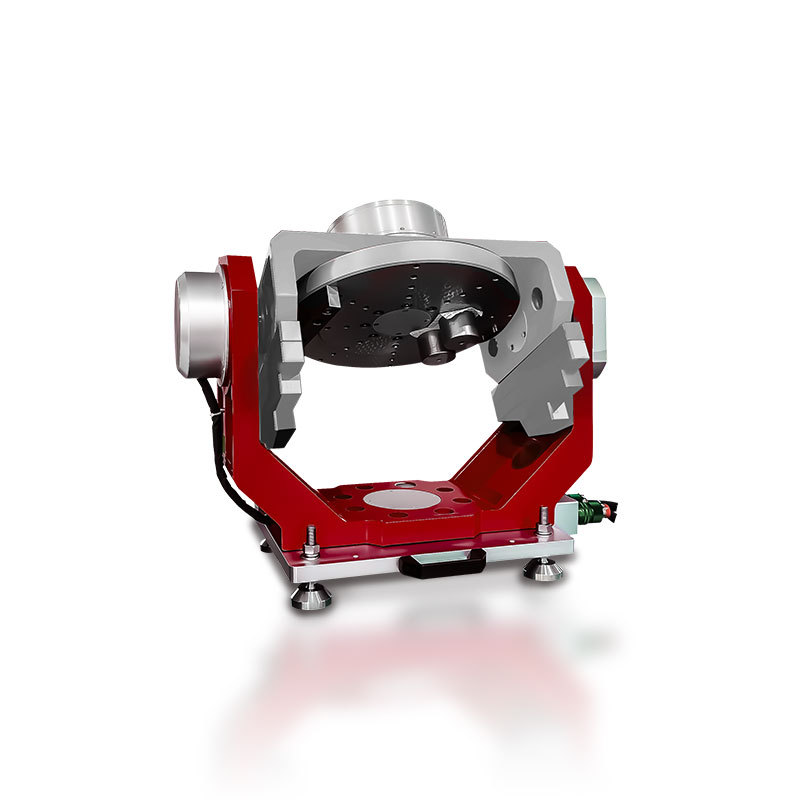

  • Motion calibration stand with superduralumin platform and 32-ring slip ring assembly

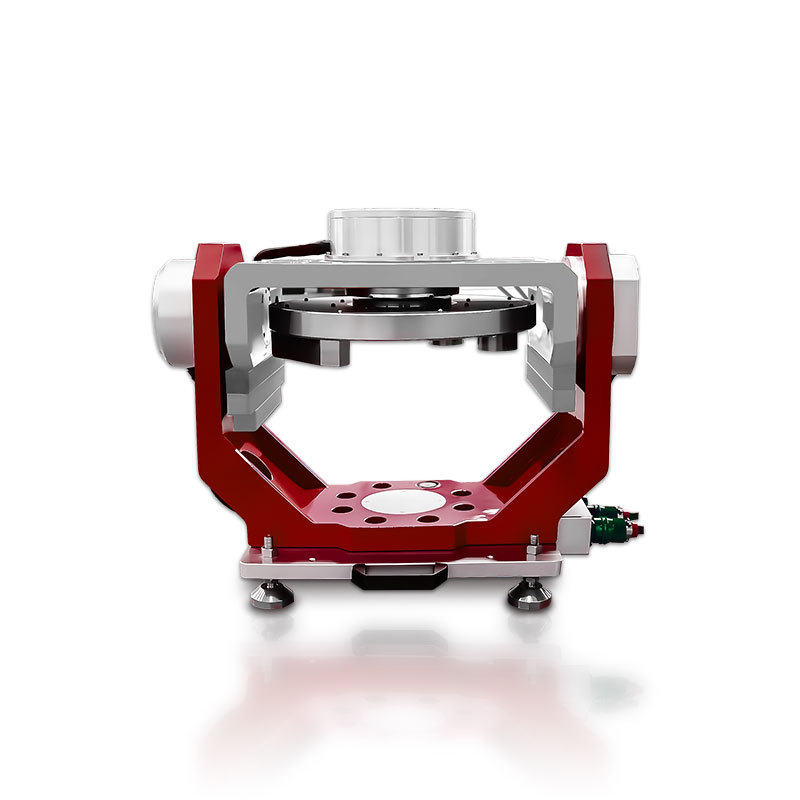

  • Close up of high precision drive system for ±15 arcsec accuracy and ±5 arcsec repeatability

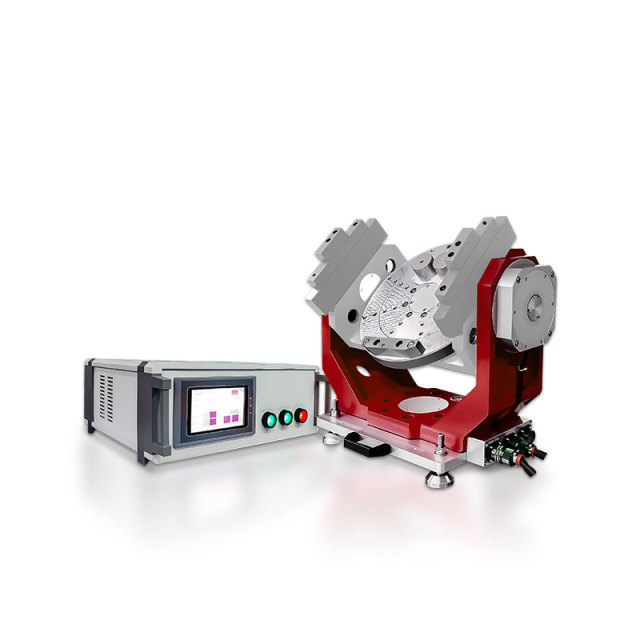

  • Rate table performing low speed drift test for MEMS gyroscope characterization

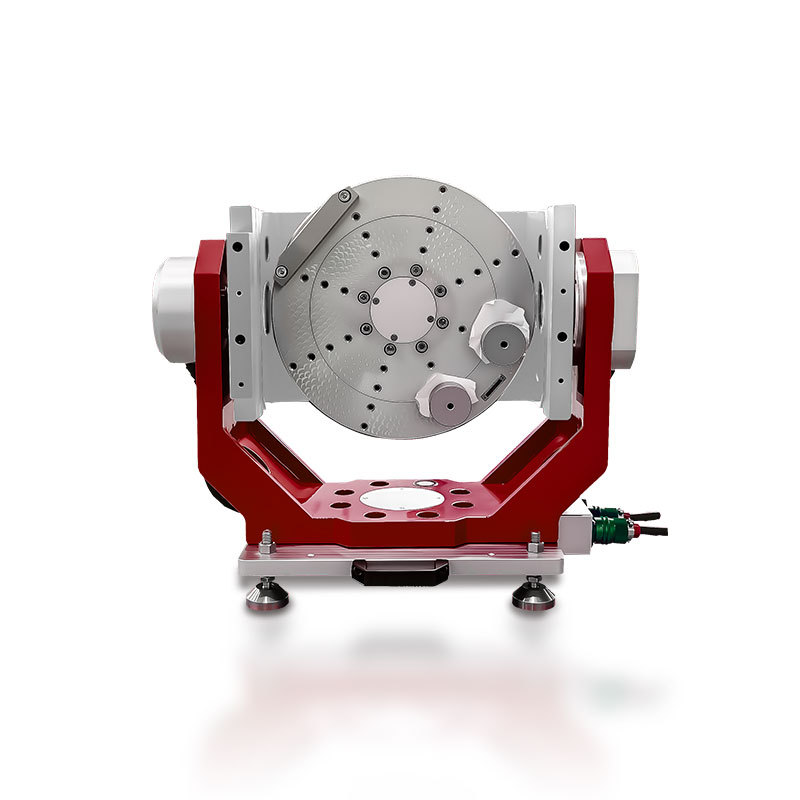

  • Test equipment dimensions with 10kg capacity on research laboratory workbench
  • RS232 remote control interface executing automated calibration sequence for industrial sensor

Precision Rate Table for Lab Research and Industrial Calibration

No.BE-INS2-25B01
This precision dual axis rate table functions as motion simulator and gyro calibration fixture for laboratory research and industrial sensor calibration. Superduralumin construction with ≥Φ300mm platform supports MEMS gyroscopes and inertial measurement units. ≤±15″ positioning accuracy with ≤±5″ repeatability delivers reliable sensor characterization for R&D workflows. Perfect for inertial navigation system development, MEMS sensor validation, and industrial automation equipment calibration.
Specifications
Load weight:
≥10kg
Load mounting table:
≥ Φ300mm
Two axis angular position positioning accuracy:
≤±15"
GET A QUOTE
Download
View all downloads
  • Precision dual axis rate table for lab research and industrial sensor calibration on bench
  • Motion calibration stand with superduralumin platform and 32-ring slip ring assembly
  • Close up of high precision drive system for ±15 arcsec accuracy and ±5 arcsec repeatability
  • Rate table performing low speed drift test for MEMS gyroscope characterization
  • Test equipment dimensions with 10kg capacity on research laboratory workbench
  • RS232 remote control interface executing automated calibration sequence for industrial sensor

Description

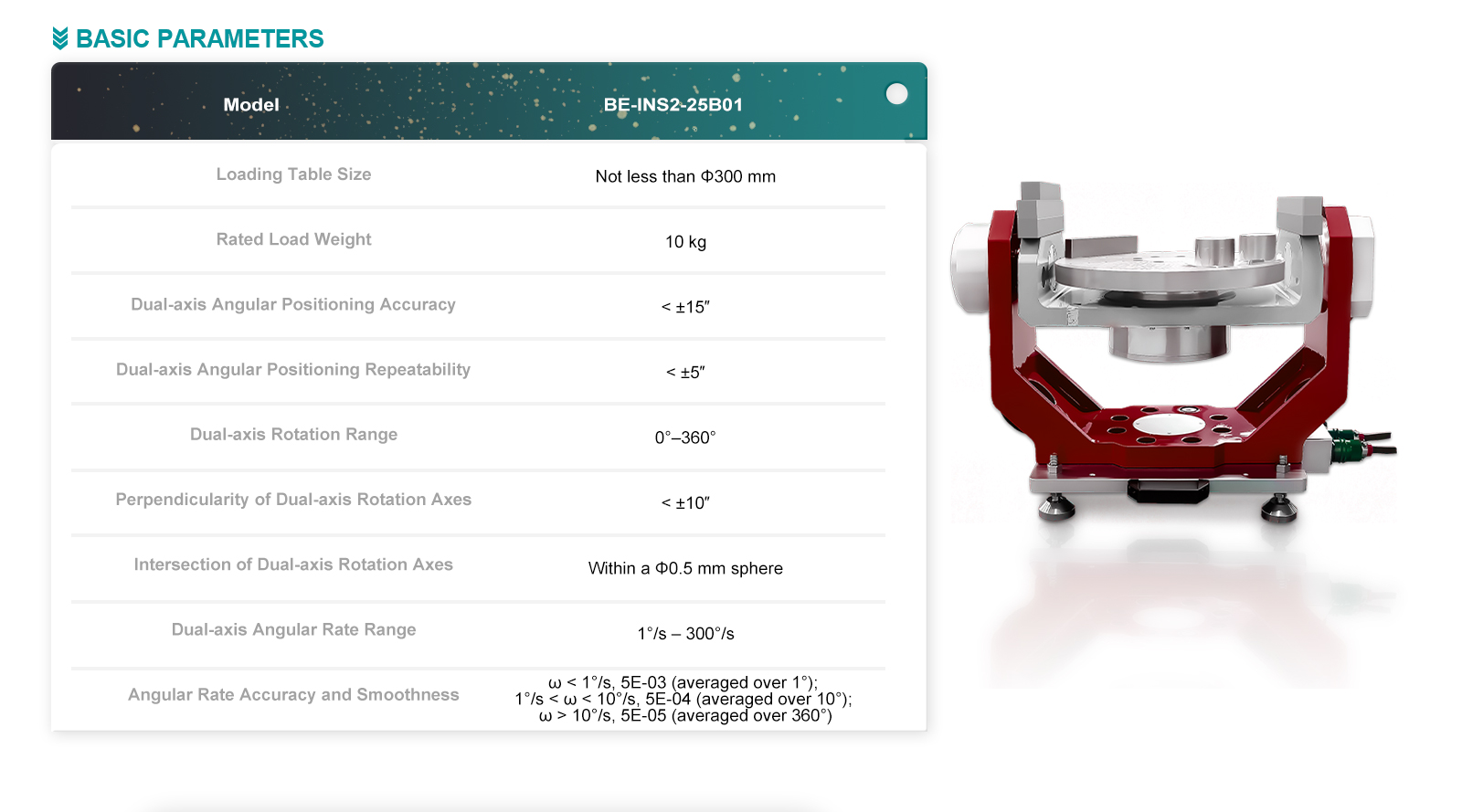

Indicator name Indicator parameters
Countertop material   Superduralumin
Load weight    ≥10kg
Load mounting table   ≥ Φ300mm
Countertop flatness   ≤ 0.03mm
Face runout   ≤ 0.03mm
Two axis angular position positioning accuracy    ≤±15"
Two-axis angular position positioning repeatability ≤±5"
Two axis Angle range 0°~360°
Perpendicularity of two axes of rotation ≤ ±10"
Rate range   1°/s ~ 300°/s

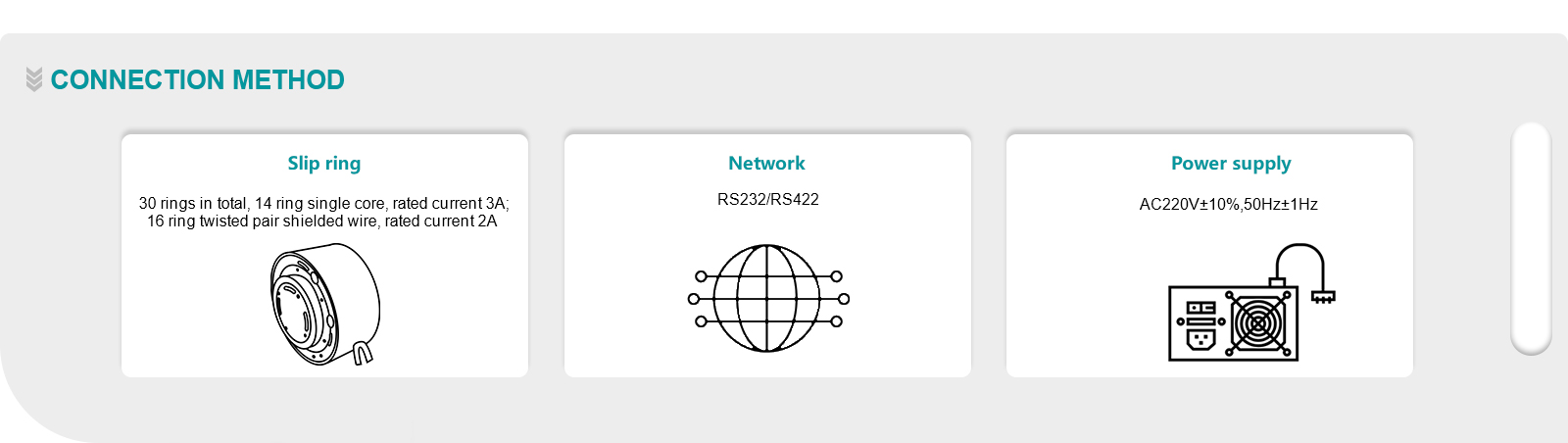

Slip    Ring loop number 32 rings

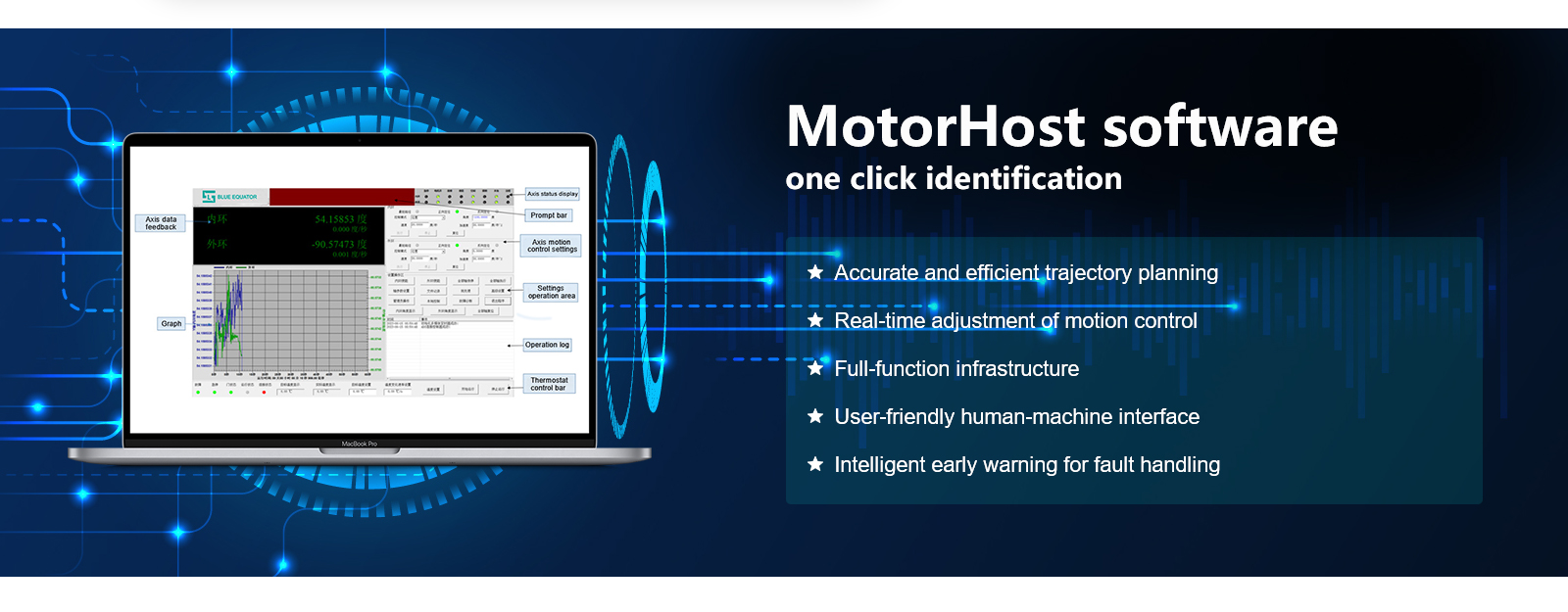

Control mode   Touch screen, remote control RS232/RS422
