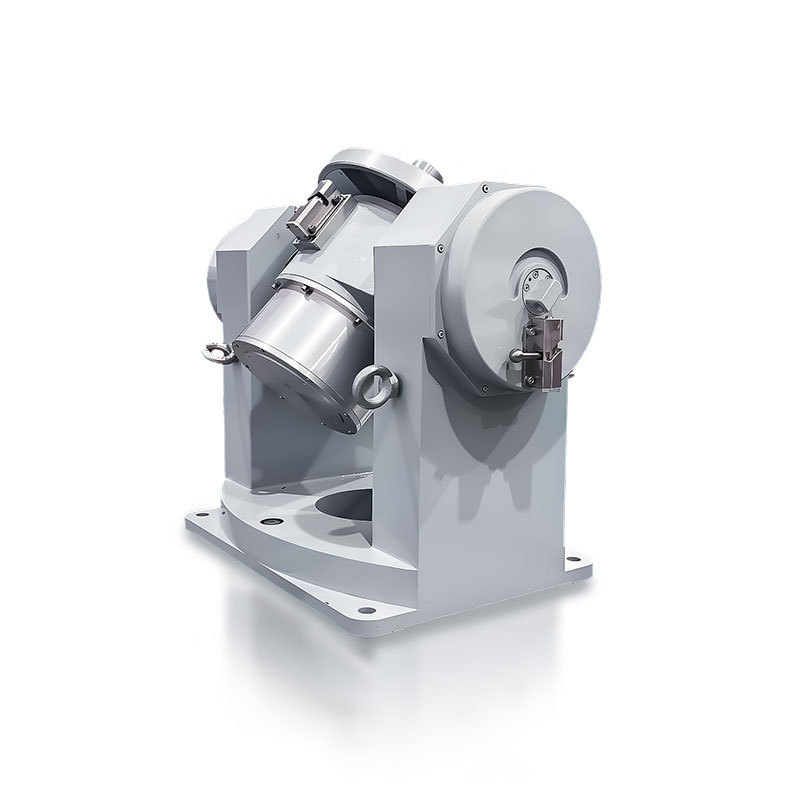

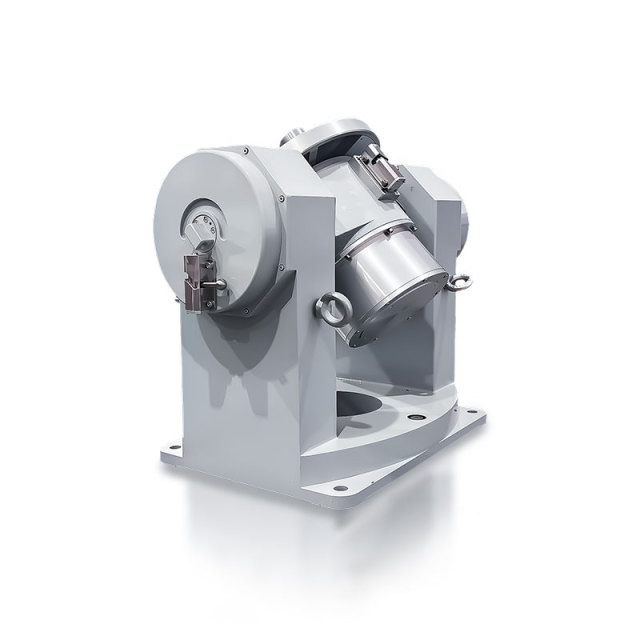

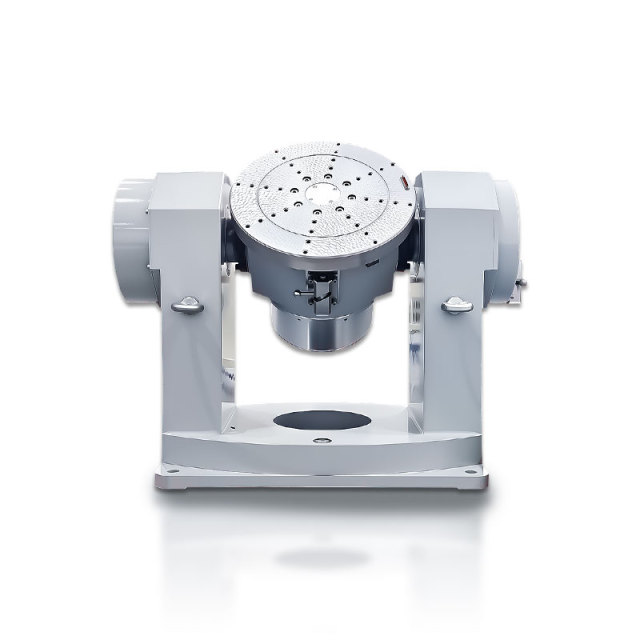

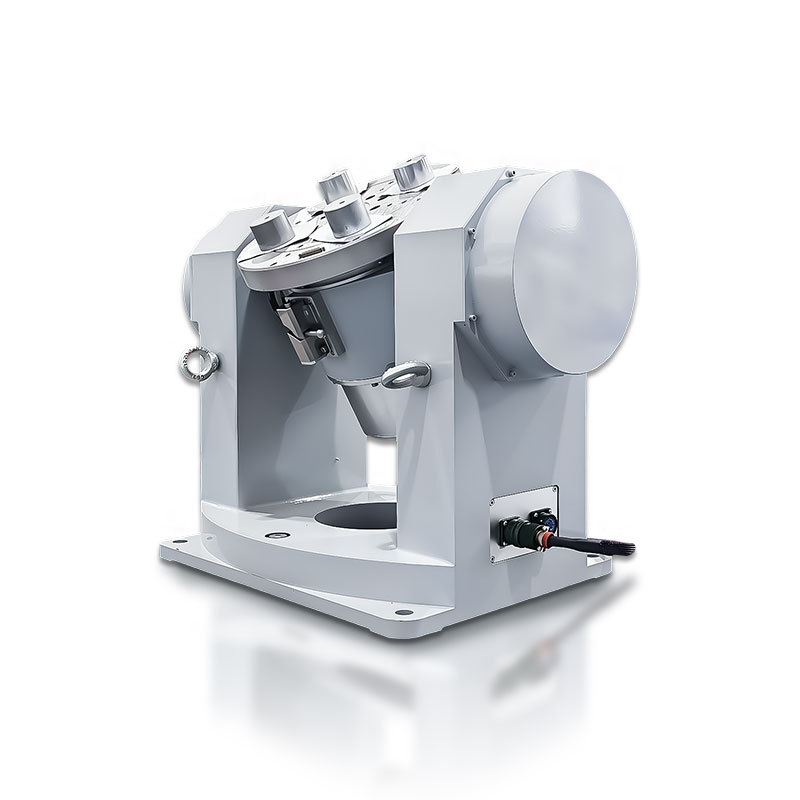

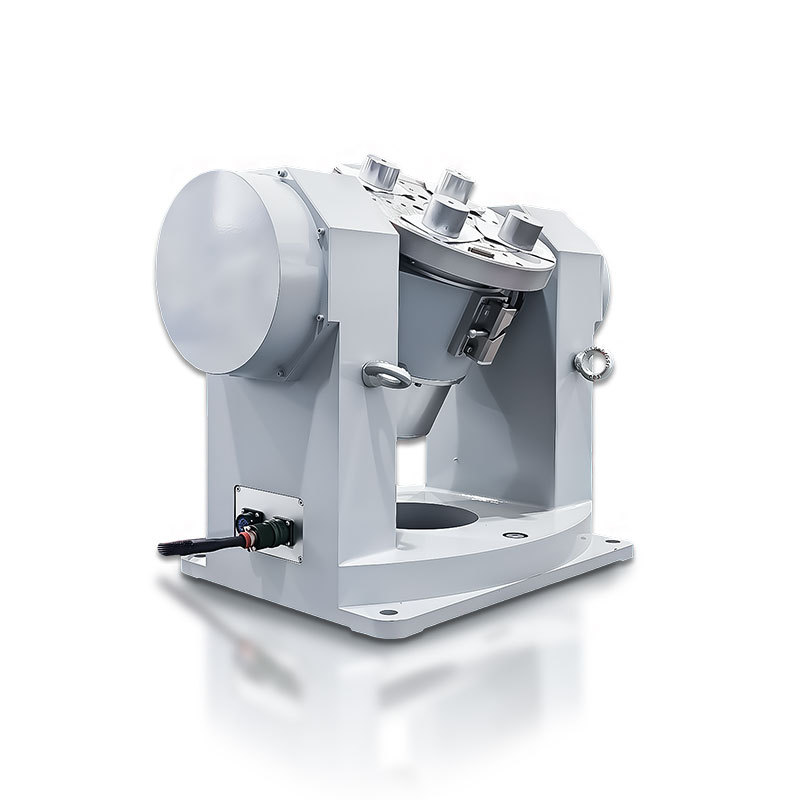

Dual Axis Rate Table for MEMS Sensor and Industrial Gyro Calibration

No.BE-INS2-23A02

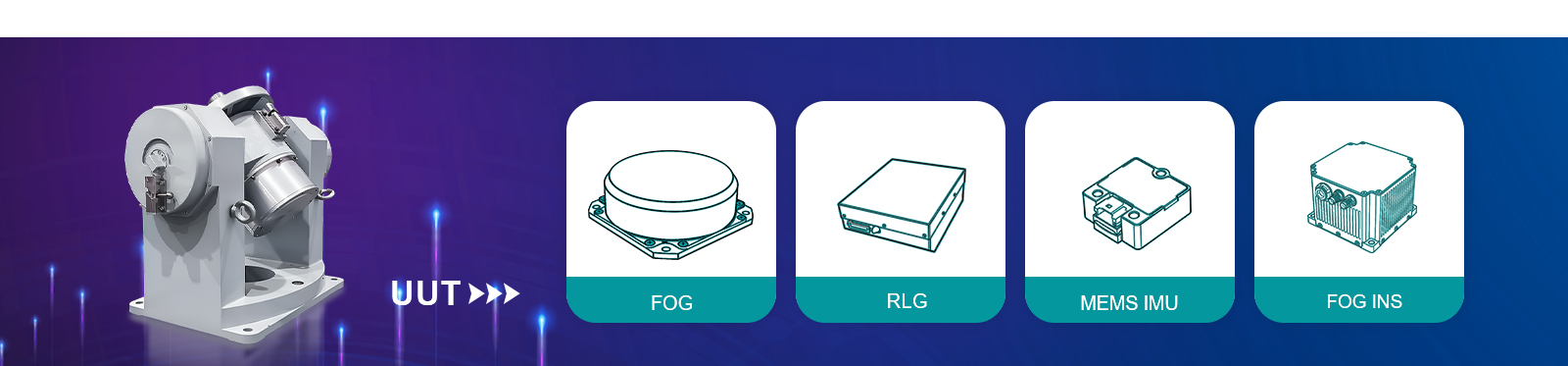

This dual axis rate table functions as rotary test stand and gyro calibration fixture for general laboratory use. Core strengths: intuitive touch screen plus RS232/RS422 remote control suits both teaching and automated workflows, continuous 360° rotation with programmable rates covers most sensor testing needs, and lightweight aluminum body allows easy benchtop deployment. Perfect for MEMS accelerometer verification, industrial gyro calibration, and undergraduate mechatronics labs.

Specifications

Rated load weight:

10kg

Maximum load size:

Ф300mm×180mm

Angular position positioning accuracy:

Inner ring ±10", outer ring ±10"

Maximum angular acceleration:

Inner ring: 200°/S²; Outer ring: 100°/S²

Conductive slip ring:

30 rings

GET A QUOTE

Download

View all downloads

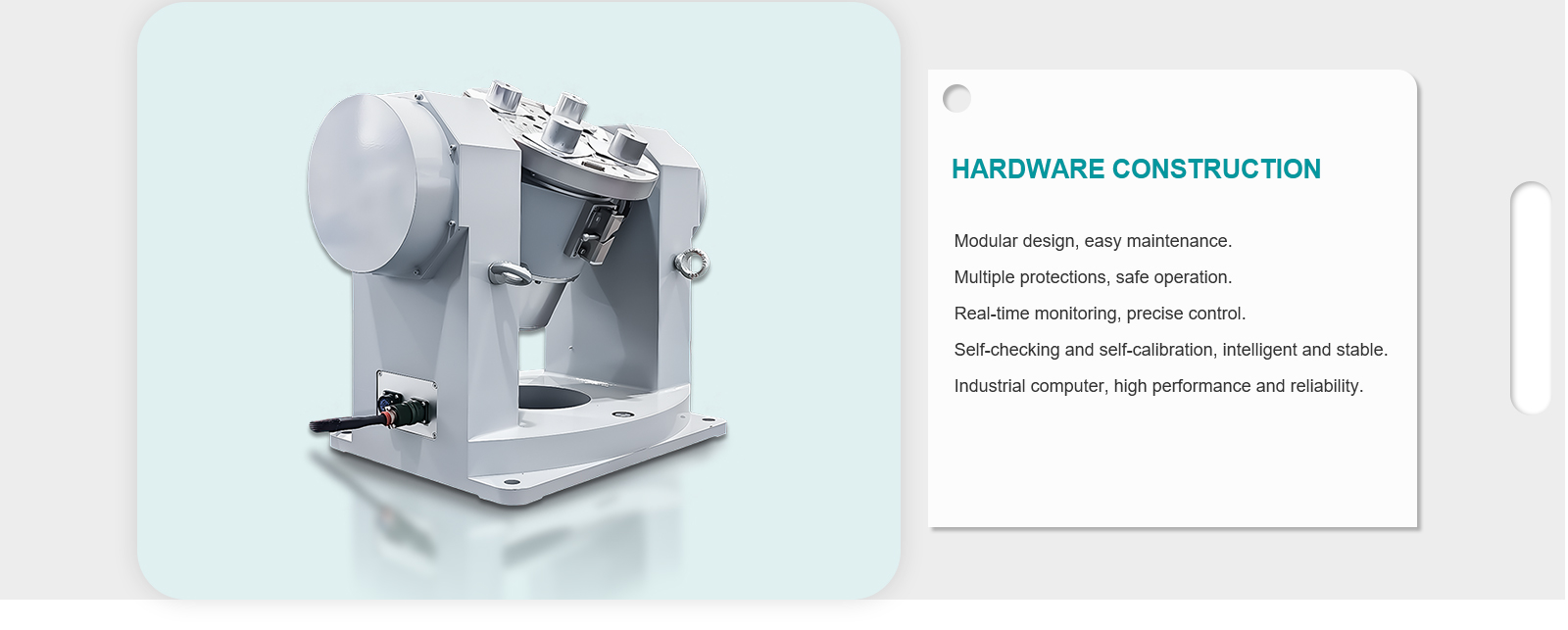

Description

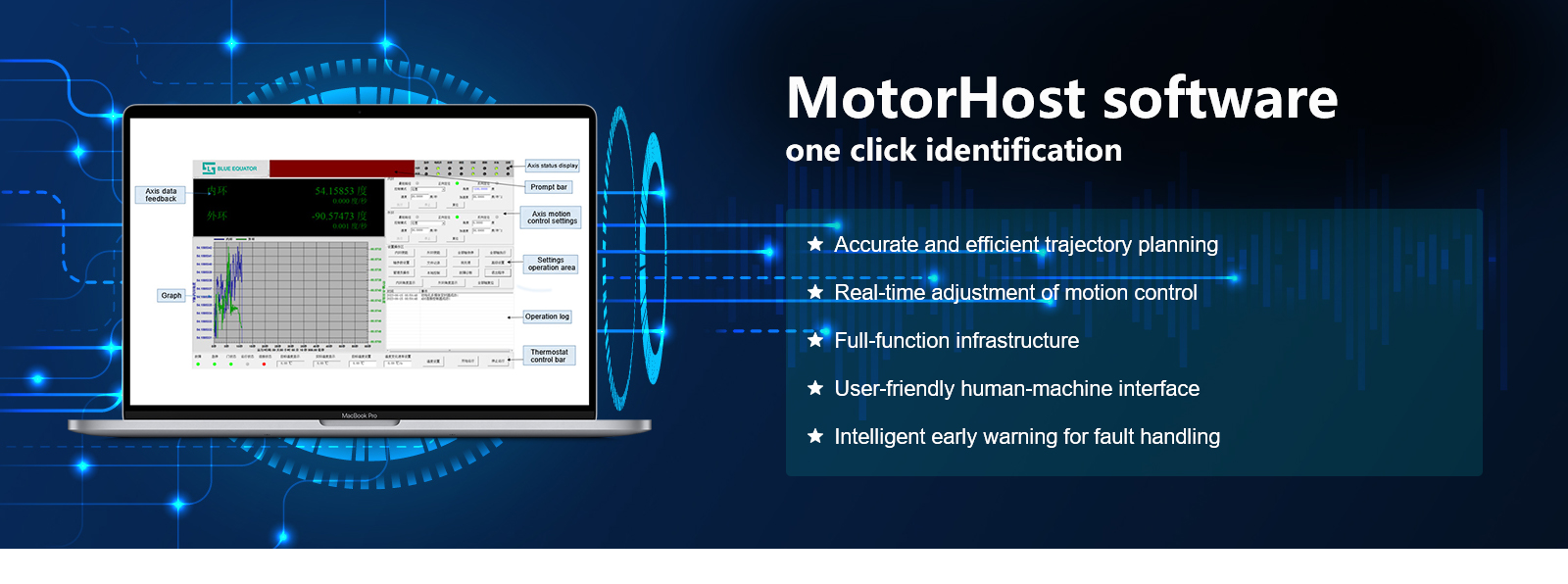

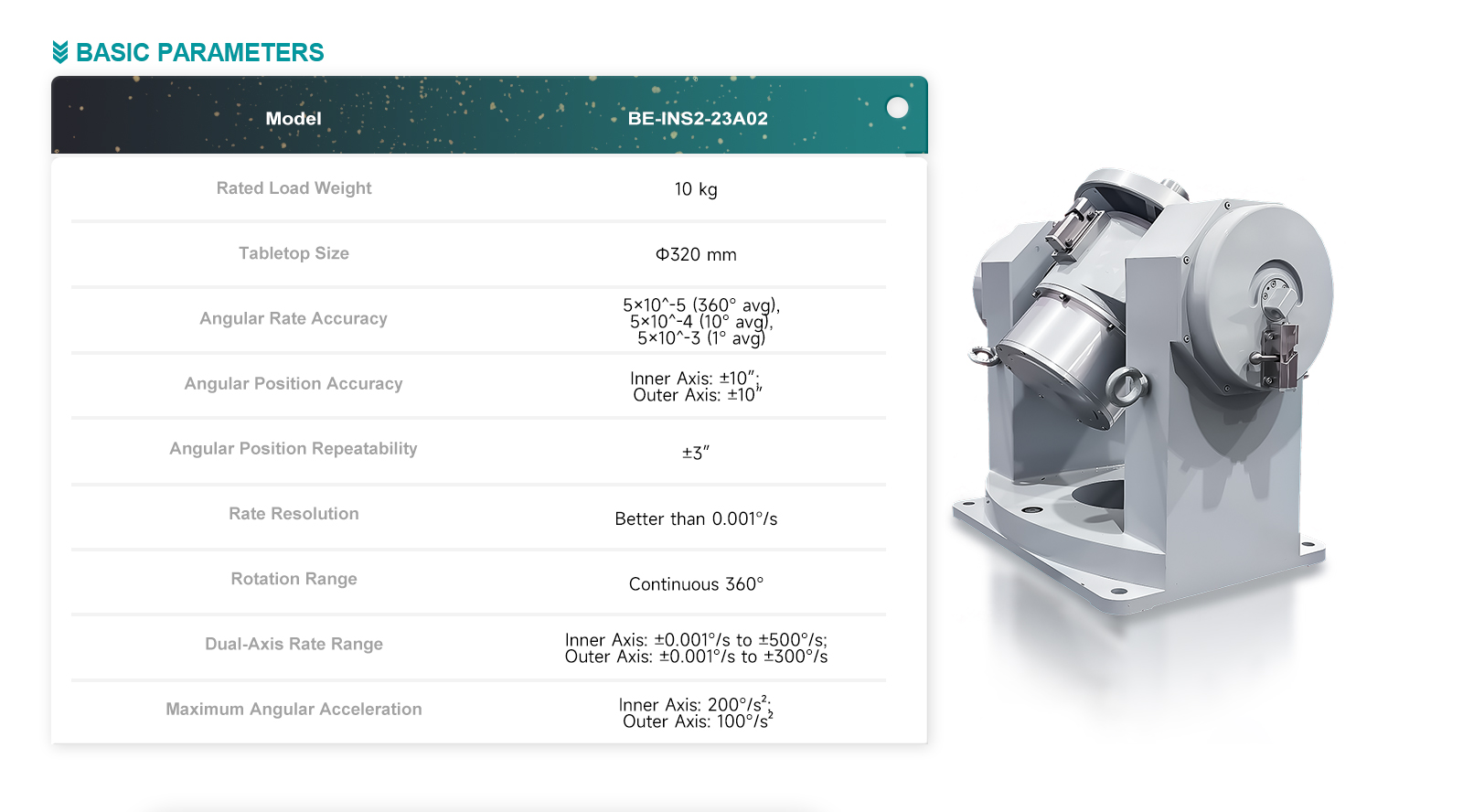

Technical parameter

Indicator name	Indicator parameters
Rated load weight	10kg
Maximum load size	Ф300mm×180mm
Mesa material	Aluminum alloy
Countertop size	Ф320mm
Countertop flatness	0.03mm
Countertop end runout	0.03mm
Accuracy of dip turn	Inner ring earth 5", outer ring earth 5"
Axis perpendicularity of inner and outer ring	±5"
Angular rate accuracy	5 x 10-5(360°average)
Angular position positioning accuracy	Inner ring ±10", outer ring ±10"
Angular position repeat positioning accuracy	±5"
Rate resolution	≥ 0.001°/s
Angle range	360° continuous rotation
Two-axis rate range	Inner ring ±0.001°/s~±500°/s, Outer ring Earth 0.001°/s~±300°/s
Maximum angular acceleration	Inner ring: 200°/S², Outer ring: 100°/S²
Turntable weight	≤110kg

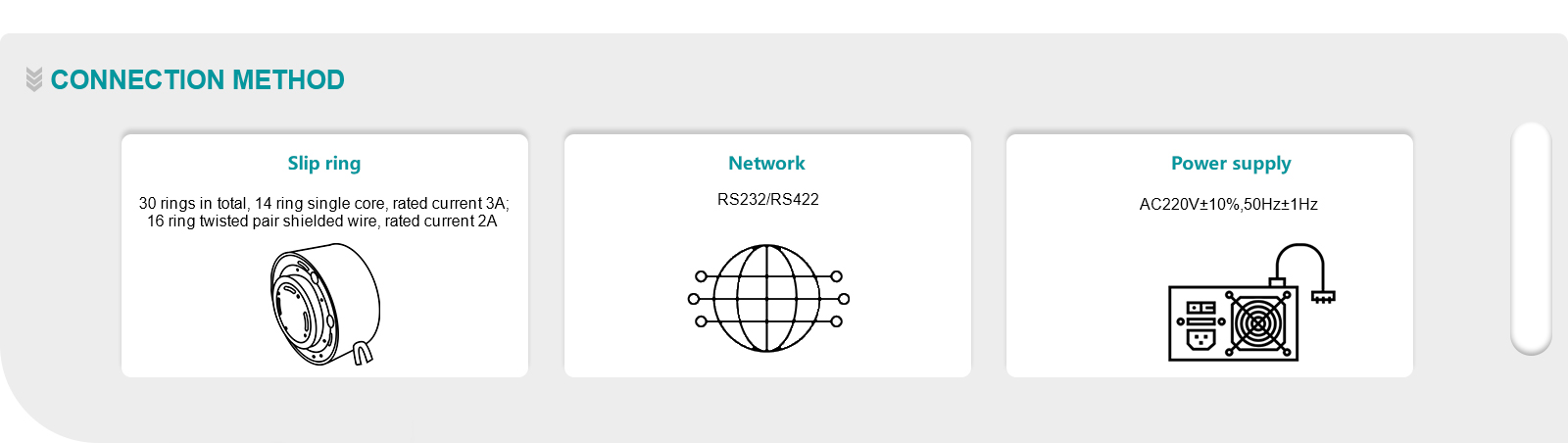

Conductive slip ring	30 rings
Table body dimensions	686mm×520mm×600mm
Control mode	Touch screen, remote control RS232/RS422
