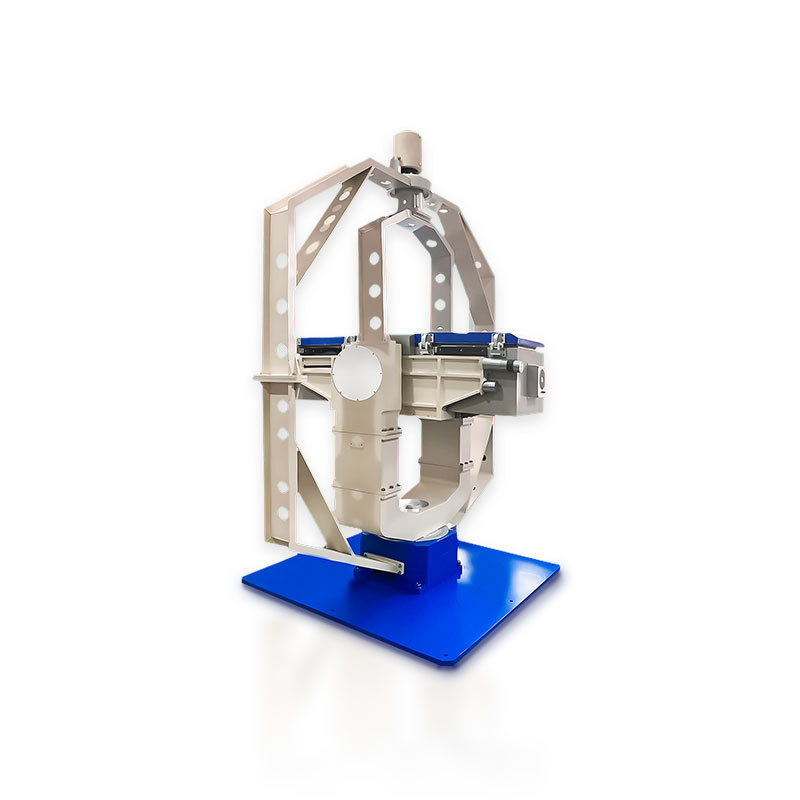

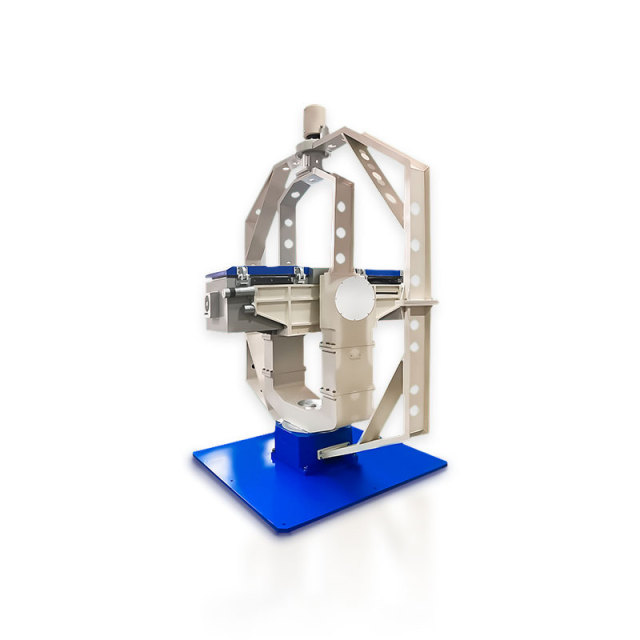

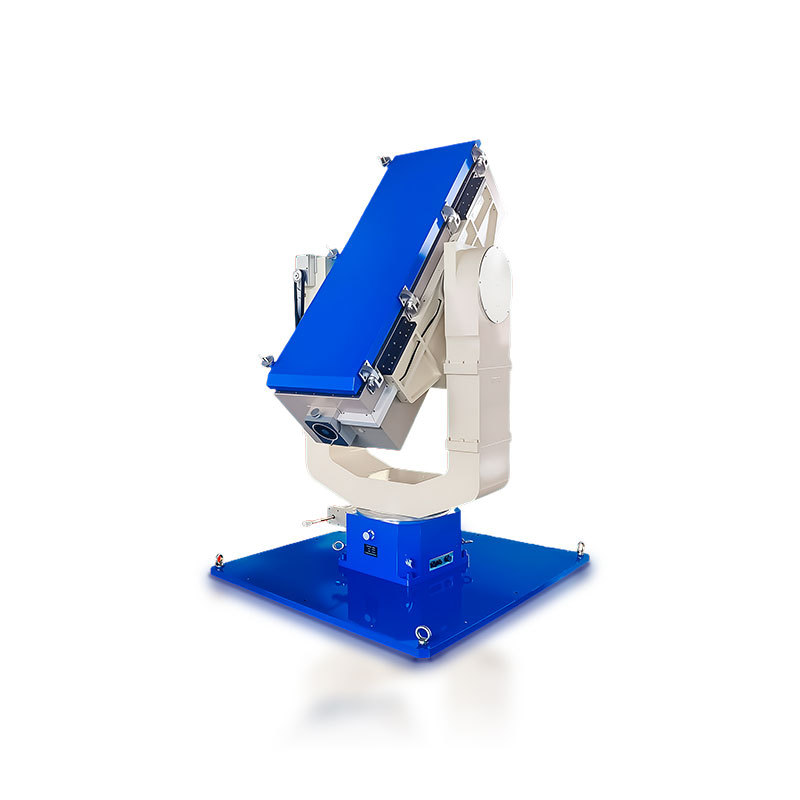

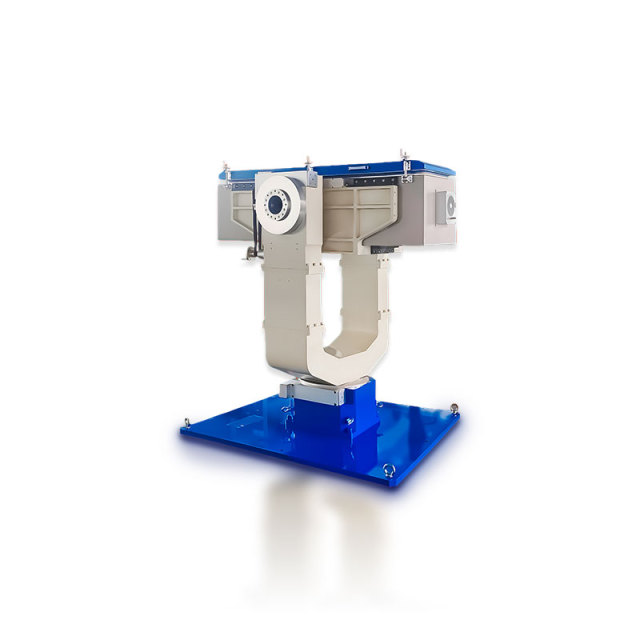

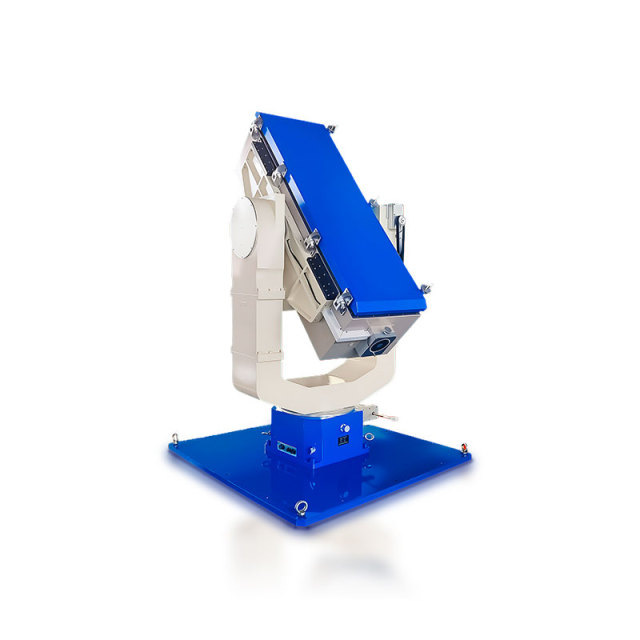

Three-Axis Rotation Platform

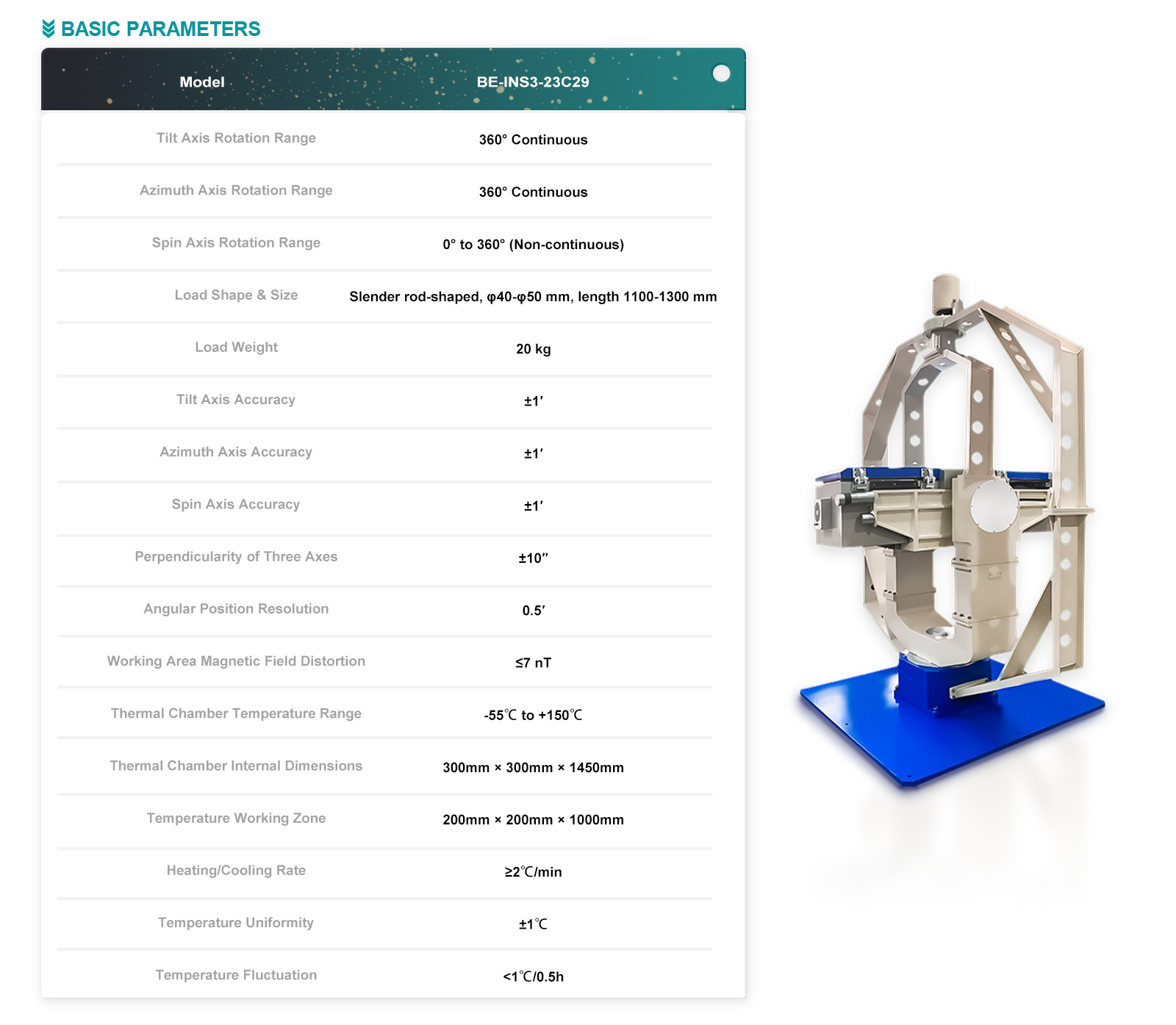

Technical Parameters and Specifications
|
|
|
Rotation Ranges
|
|
| Three-axis Rotation Range: |
|
|
|
|
|
| Load Specifications | |
| Load Structure: | Slender rod-shaped structure with a diameter of 40 to 50 mm and a length range of 1100 mm to 1300 mm |
| Load Weight: | 20 kg |
| Accuracy Specifications | |
| Accuracy: |
|
|
|
|
|
|
|
|
|
| Environmental Conditions | |
| Magnetic Field Distortion: | Magnetic field distortion in the working area ≤ 7 nT |
| Thermal Chamber Specifications | |
| Thermal Chamber: |
|
|
|
|
|
|
|
|
|
|
|
